Hardware Resources
Vertical Lift Cabinet Door System
Vertical Lift Cabinet Door System
SKU: VLS5-13
Products from this brand are restricted from listing prices online. Please call our office at 657-279-8130 to request pricing.
PRODUCT DESCRIPTION

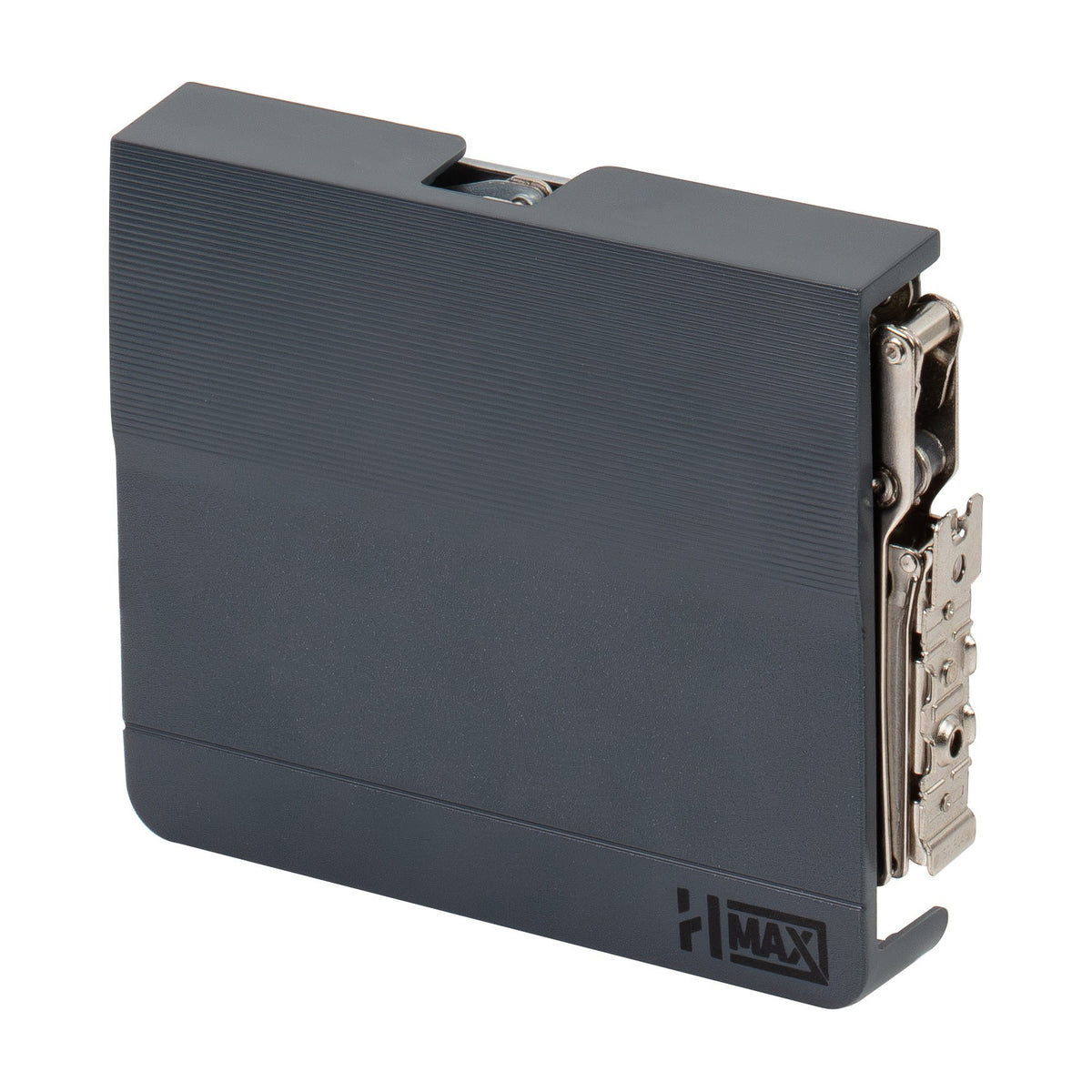

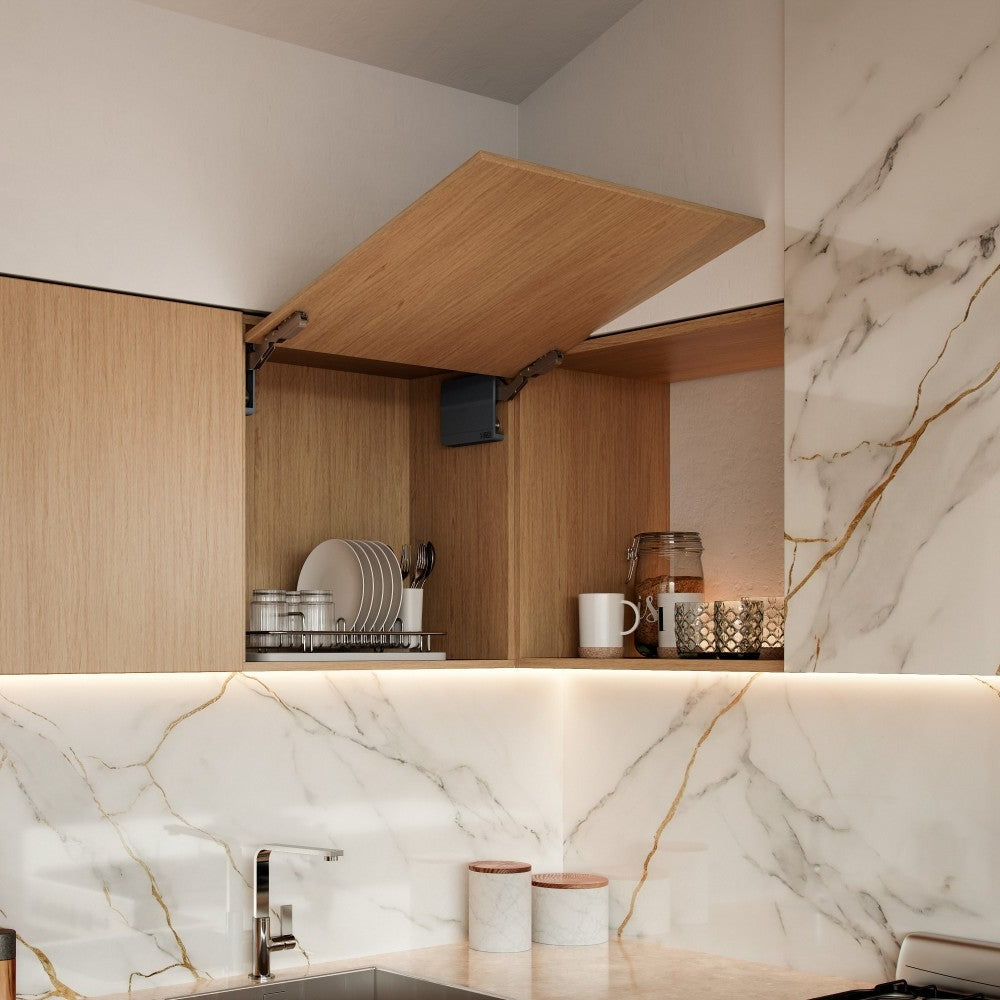

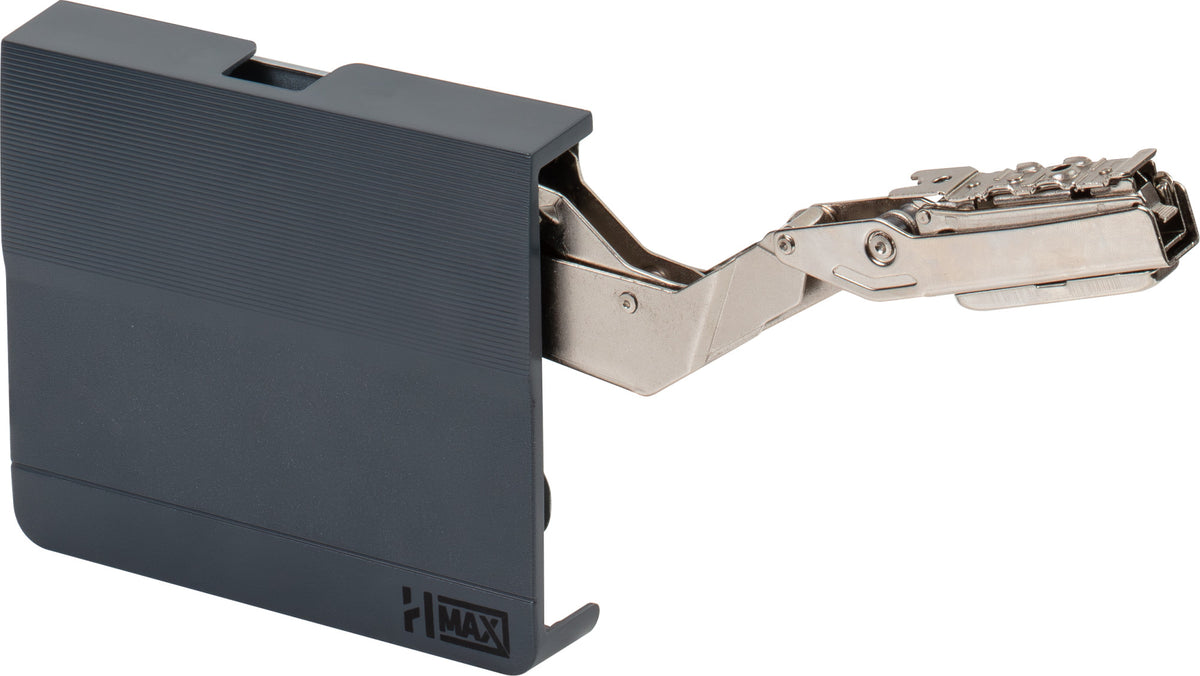

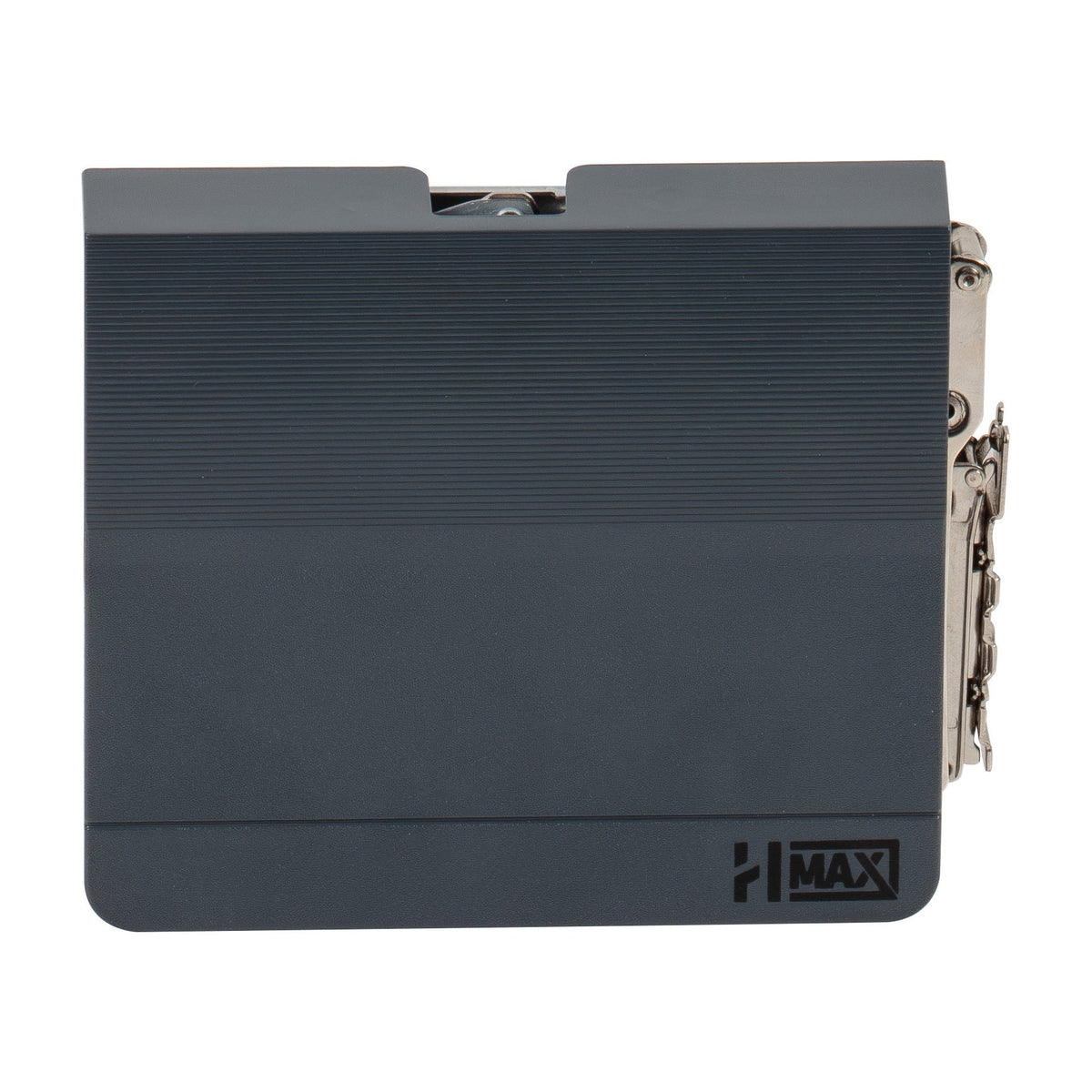

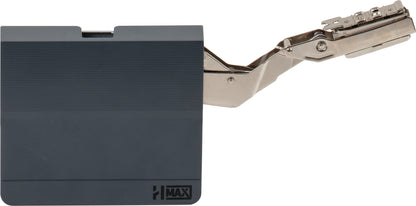

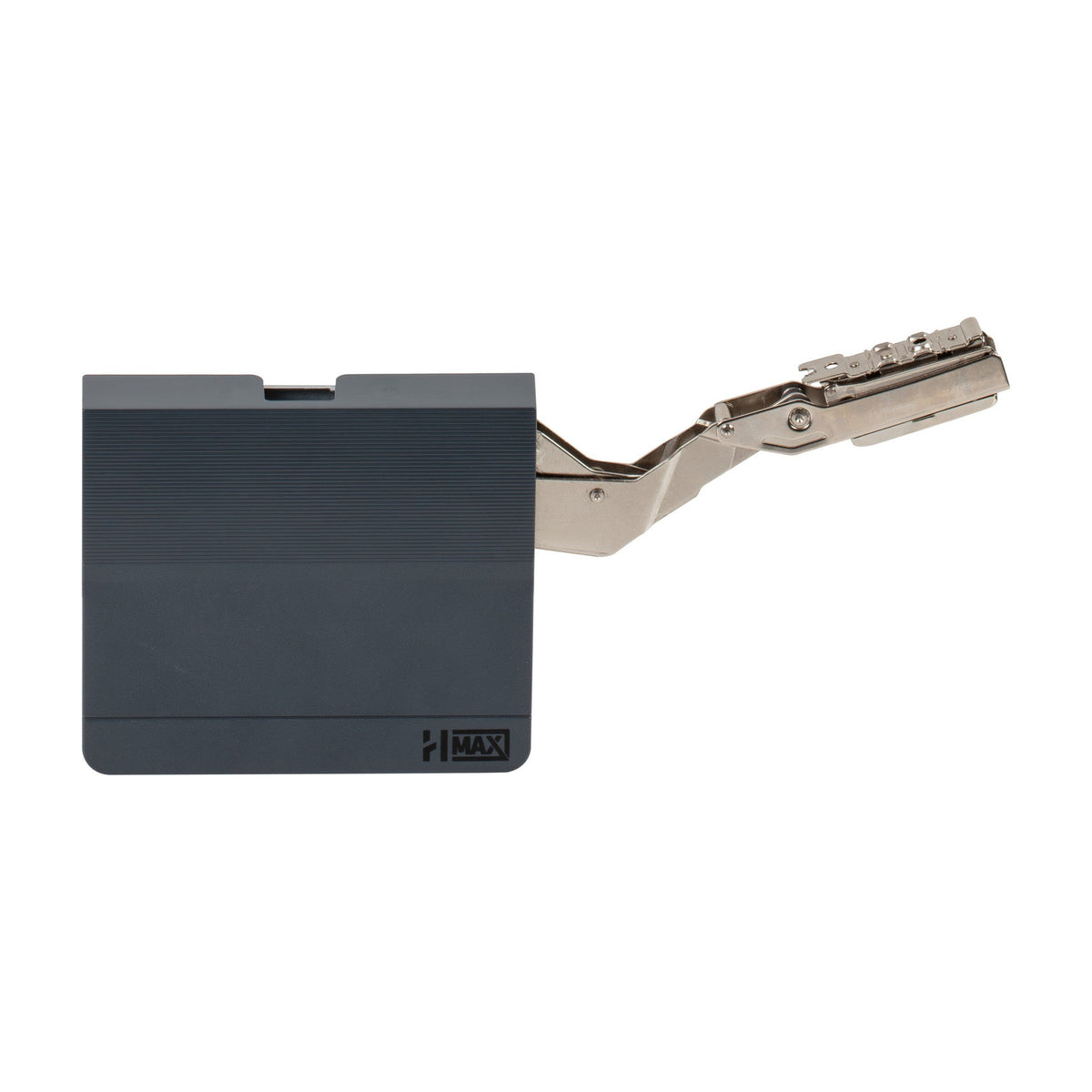

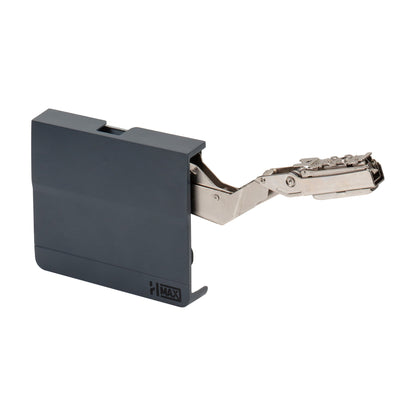

Zinc finish vertical lift system that raises an upper cabinet door straight up to 107 degrees and closes it softly, sold by the pair. The HR Max Vertical Lift System makes overhead cabinet storage easier to access because the door doesn't block the opening. Instead of swinging out horizontally, the door lifts straight up and stays there, held at a 107-degree opening angle by an adjustable stop mechanism that keeps it from dropping while your hands are full. The lift adjusts for door weight and comes in two versions, medium duty for 5 to 13 pound doors and heavy duty for 11 to 22 pounds, both with a soft-close mechanism so the door settles instead of slams. Each kit ships complete: two vertical lift components, left and right decorative covers in a grey that blends into modern cabinet interiors, installation hardware, and an instruction template. Recommended for frameless wall cabinets in kitchens and garages, it's tested to 100,000 cycles, meets or exceeds ANSI/BHMA standards, and it's backed by the HR Max lifetime warranty. And it ships fast from company-owned regional warehouses, so it's on your bench when the build is. When you choose HR Max, you're choosing more than just hardware; you're choosing a brand that cares about your cabinet business. Trust in the brand that's built to last, backed by a lifetime warranty, supported by knowledgeable sales and support staff, and provided by a company that is Built Around You.
Key Features

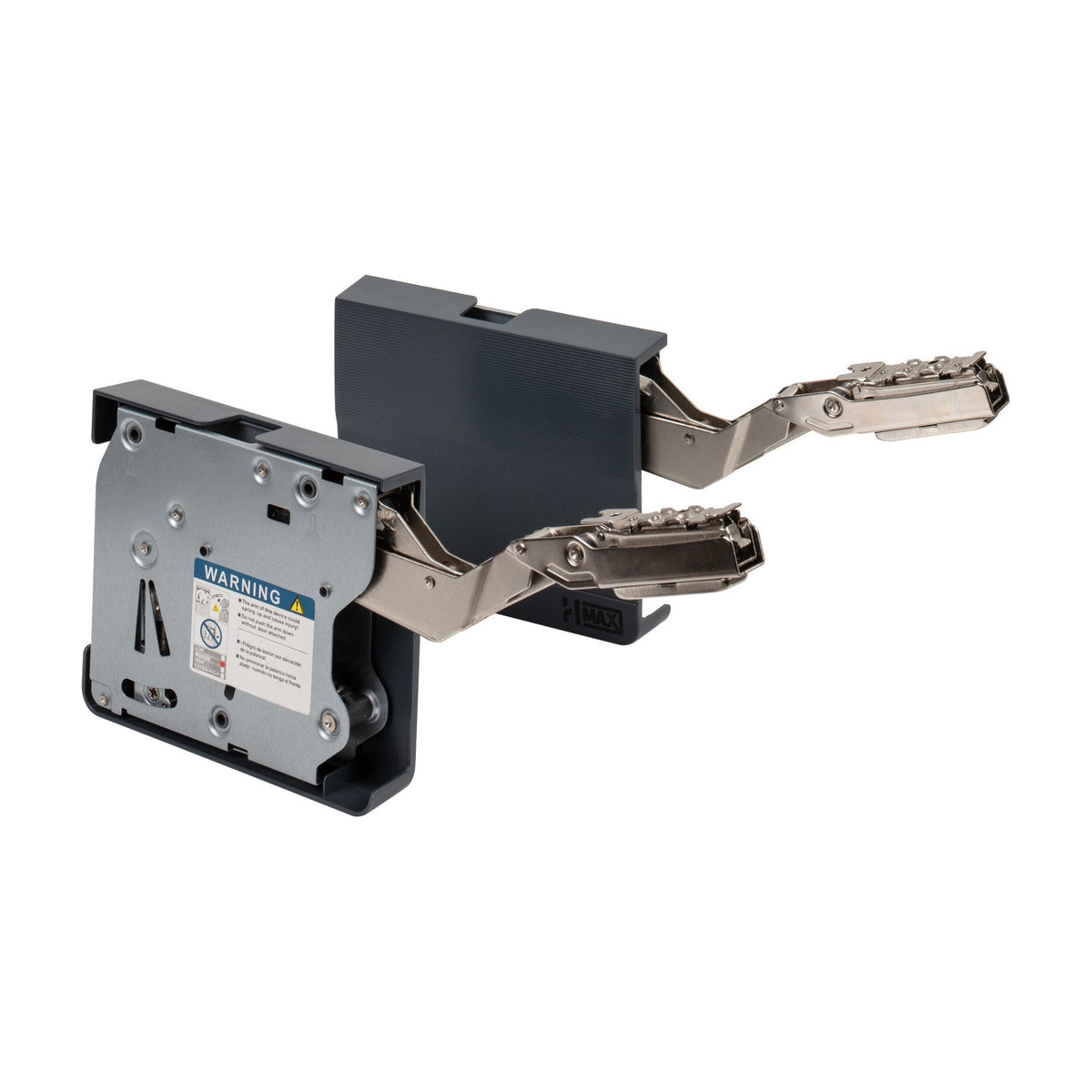

- Kit includes: 2 vertical lift components, decorative lift covers, installation instructions & template, installation hardware
- Soft-close lift mechanism is adjustable for different door weights
- 107˚ opening angle
- Safety mechanism holds the door open
- Recommended for frameless cabinetry
- Tested to withstand 100,000 cycles
Specifications
- Material: Steel
- Finish: Zinc
- Opening angle: 107°
- Application: Frameless
- Certification: Meets/exceeds ANSI/BHMA standards tested to 100,000 cycles
- Sold by: Pair
- SKUs: 5 to 13 lb Door: VLS5-13; 11 to 22 lb Door: VLS11-22
Hardware Resources products are sold by quote. Call our Anaheim showroom at 657-279-8130 for pricing, availability and lead times, or visit us at 1630 N. State College Blvd. to see the line in person.
