1750 Series Adjustable Soft-Close European Hinge
1750 Series Adjustable Soft-Close European Hinge
SKU: 1750.0161.25
Request Pricing
This brand does not allow prices to be listed online. Check the options you want and we will email you the prices, plus next steps on how to order. Prefer to talk? Call 657-279-8130.
PRODUCT DESCRIPTION
Nickel plated steel heavy duty European hinge with an integrated soft-close you can fine tune to the size and weight of each door.
Key Features
- Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
- Hinge and plate provide 6-way adjustability
- Cold rolled steel with nickel plating
- 45 mm boring pattern
- 2-stop action
- Compatible with 600 Series Plates
- Heavy duty spring and patented linkage system

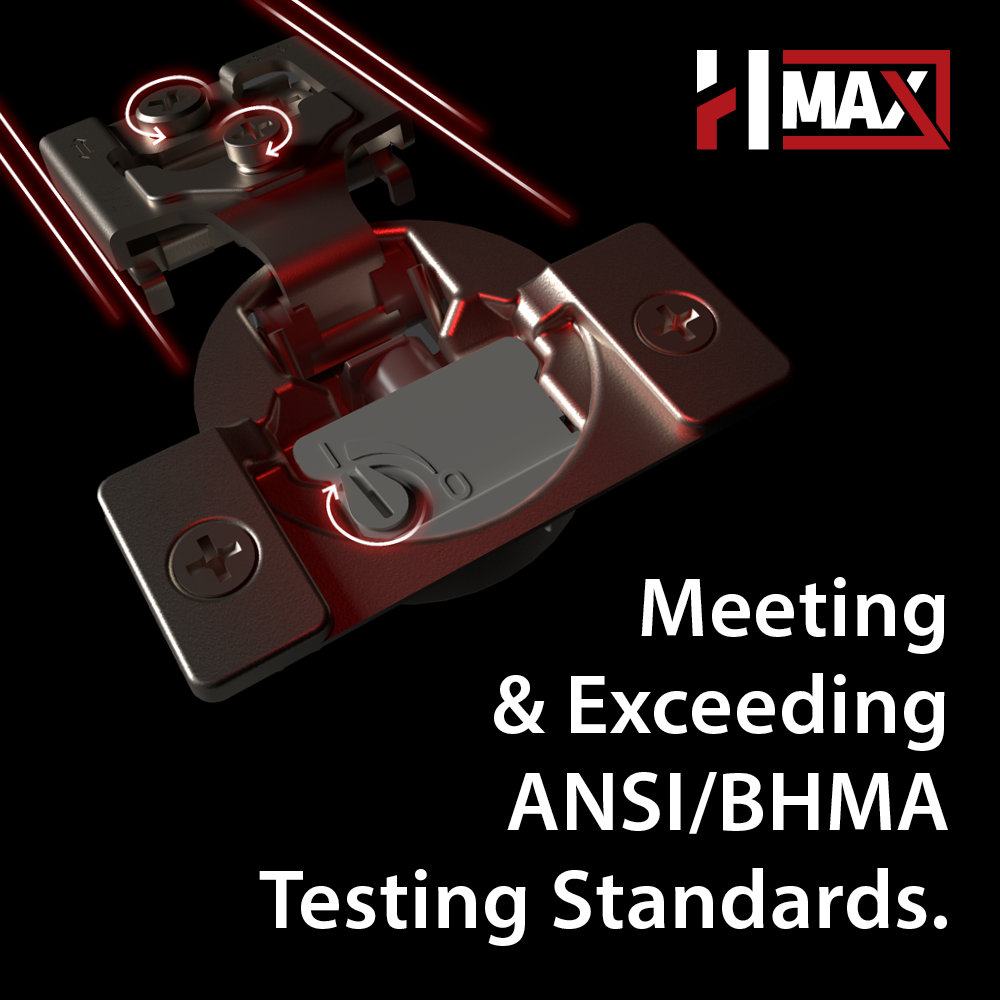

- Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles
Specifications
- Material: Steel
- Finish: Polished Nickel
- Center to center: 45 mm
- Cup bore depth: 11.2 mm
- Adjustment: 6-Way Adjustment
- Application: Face frame and frameless
- Certification: ANSI/BHMA A156.9-2015, ANSI/KCMA A161.1-2012
- Sold by: Each

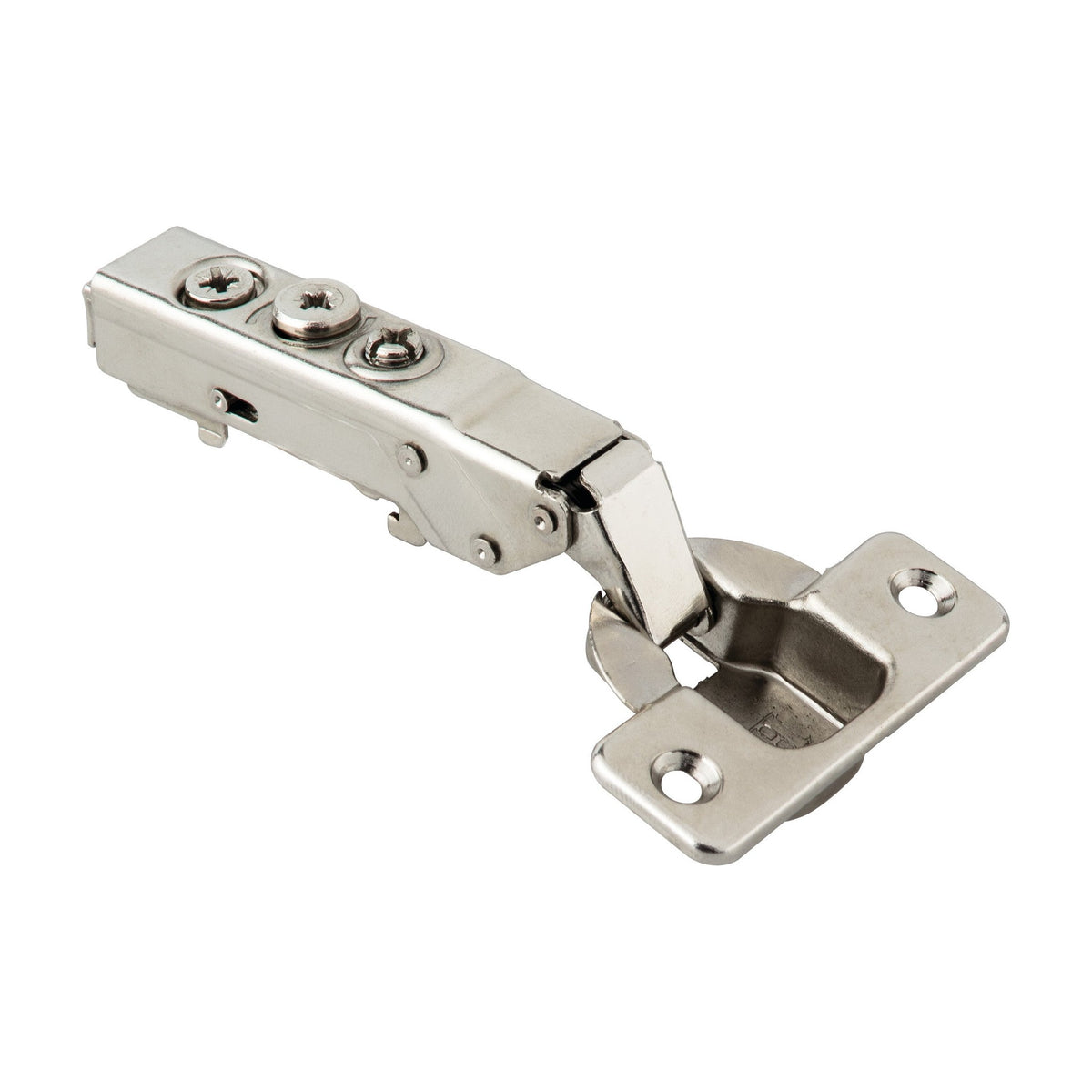

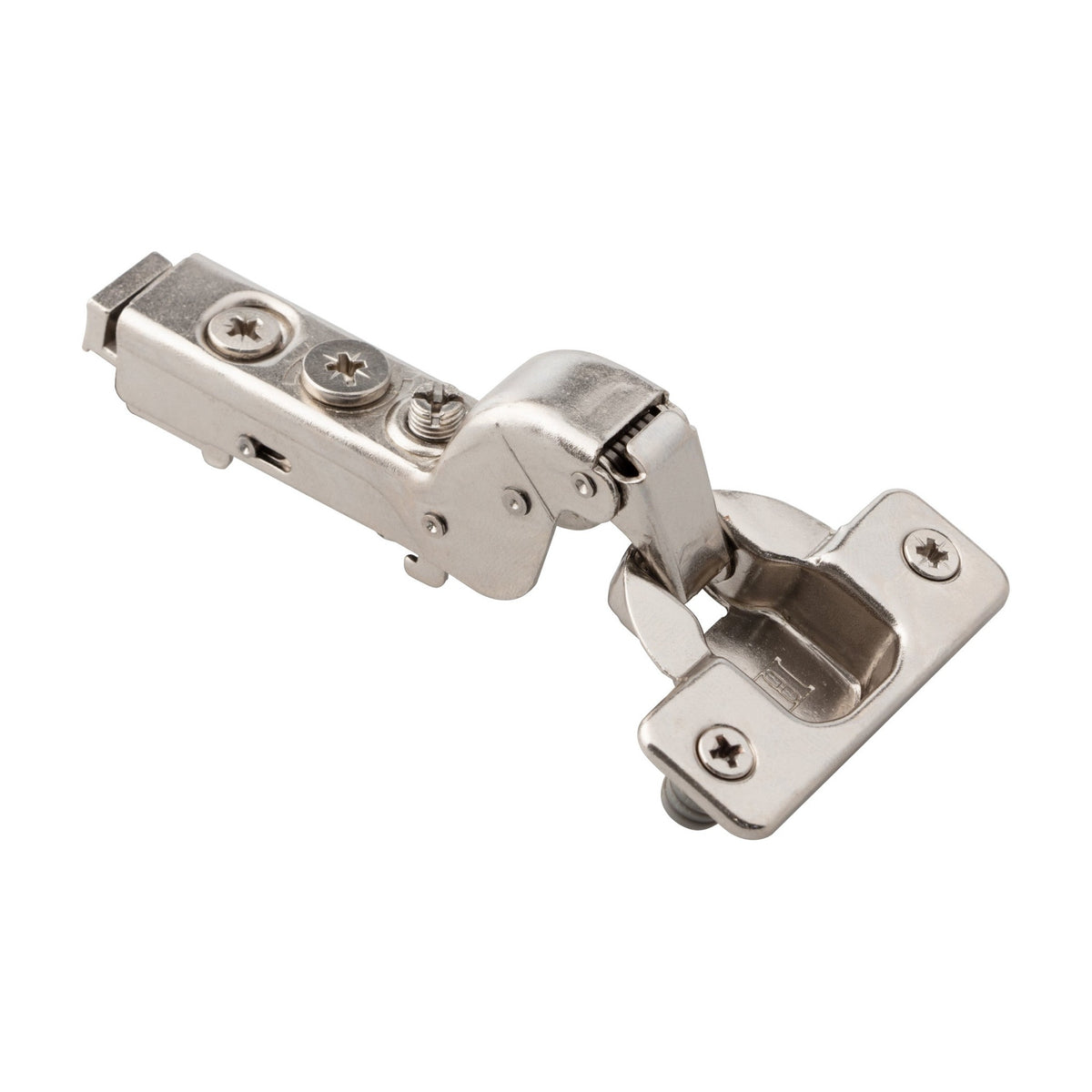

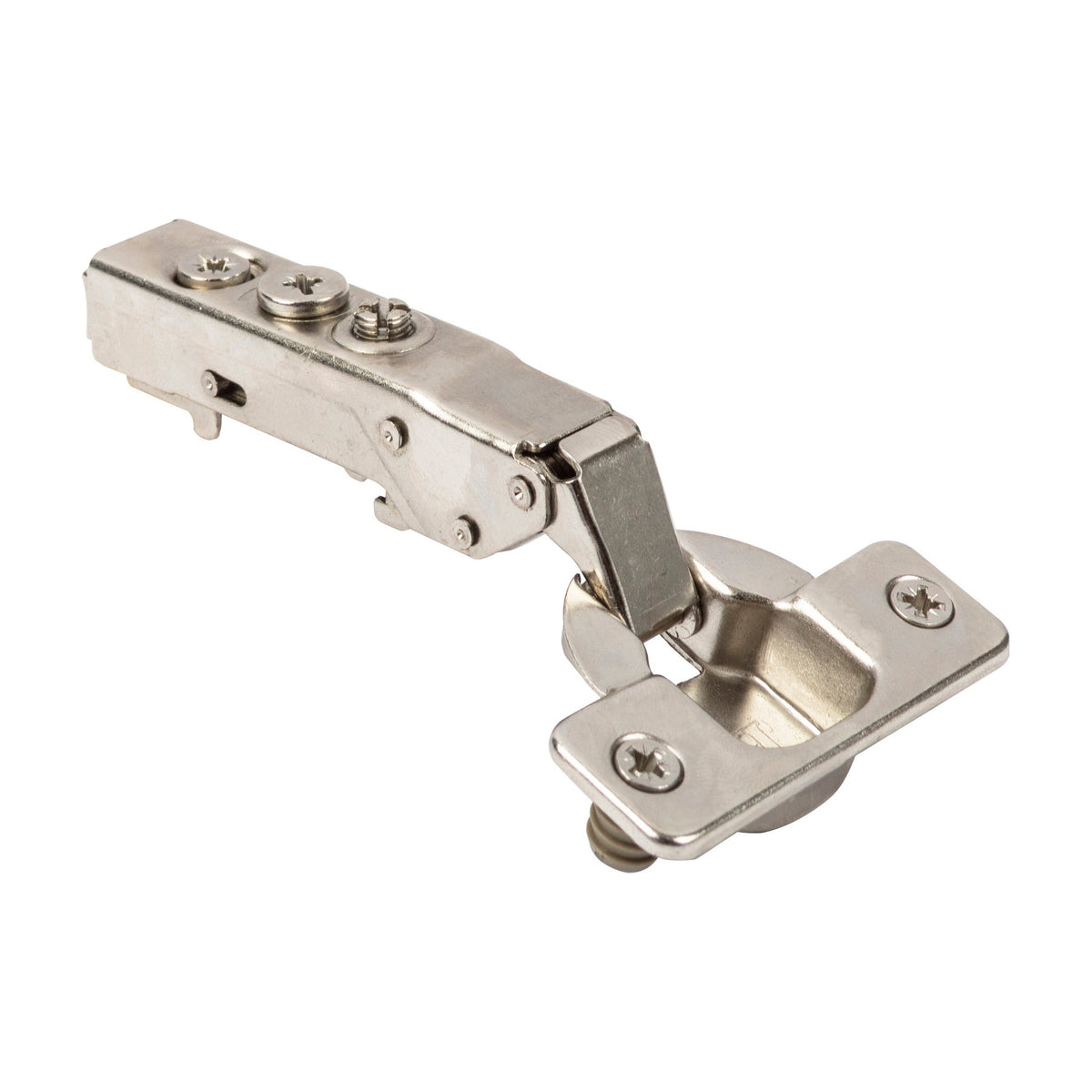

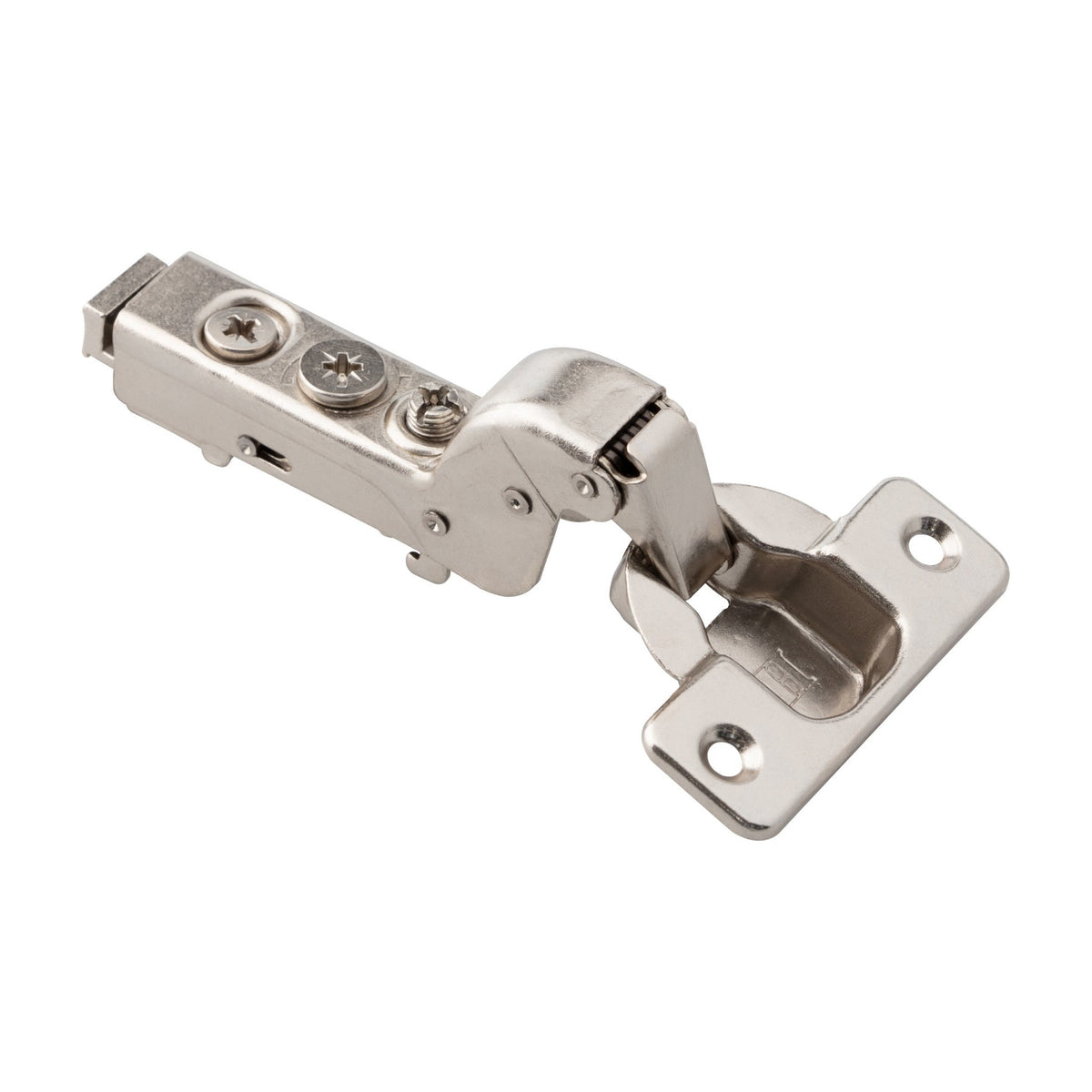

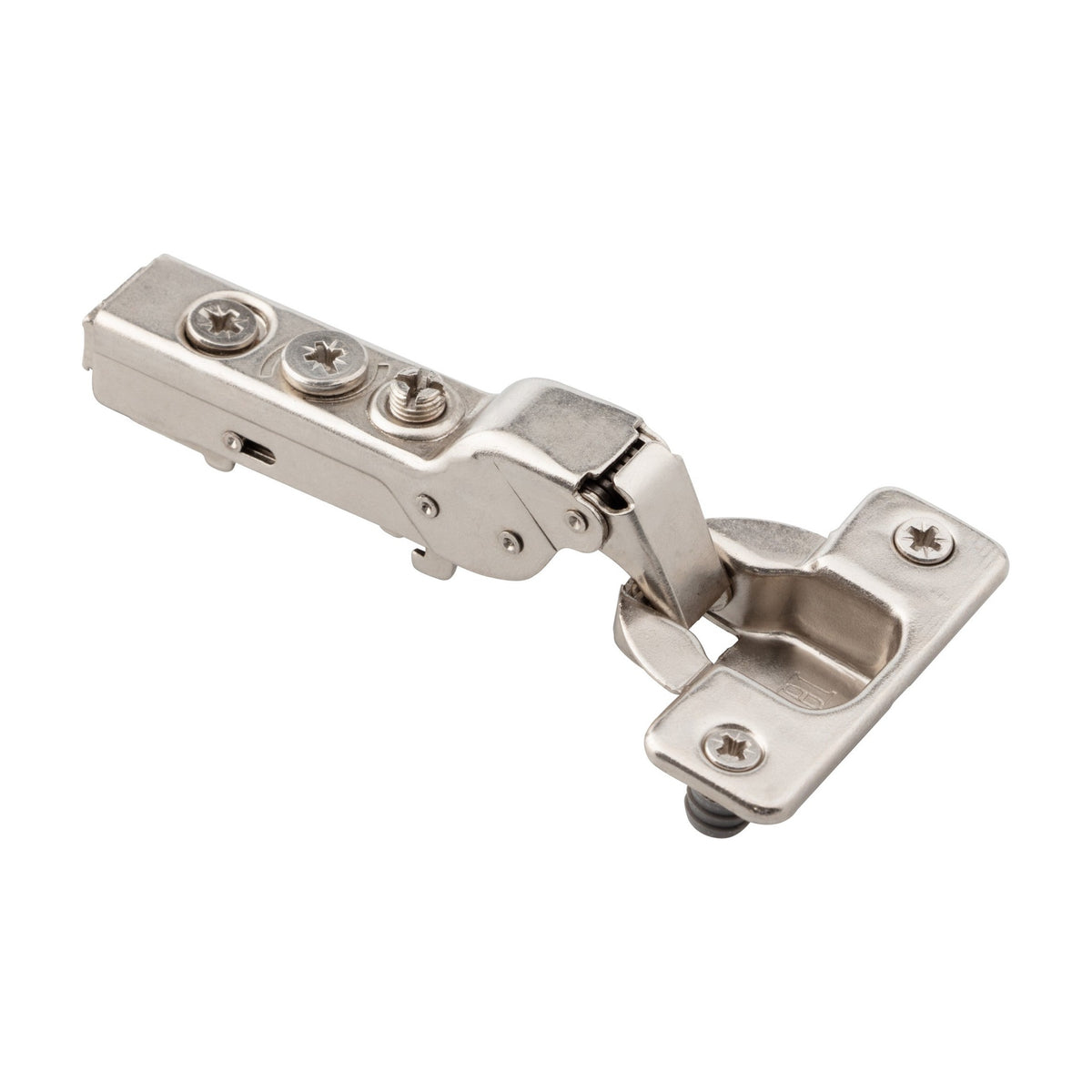

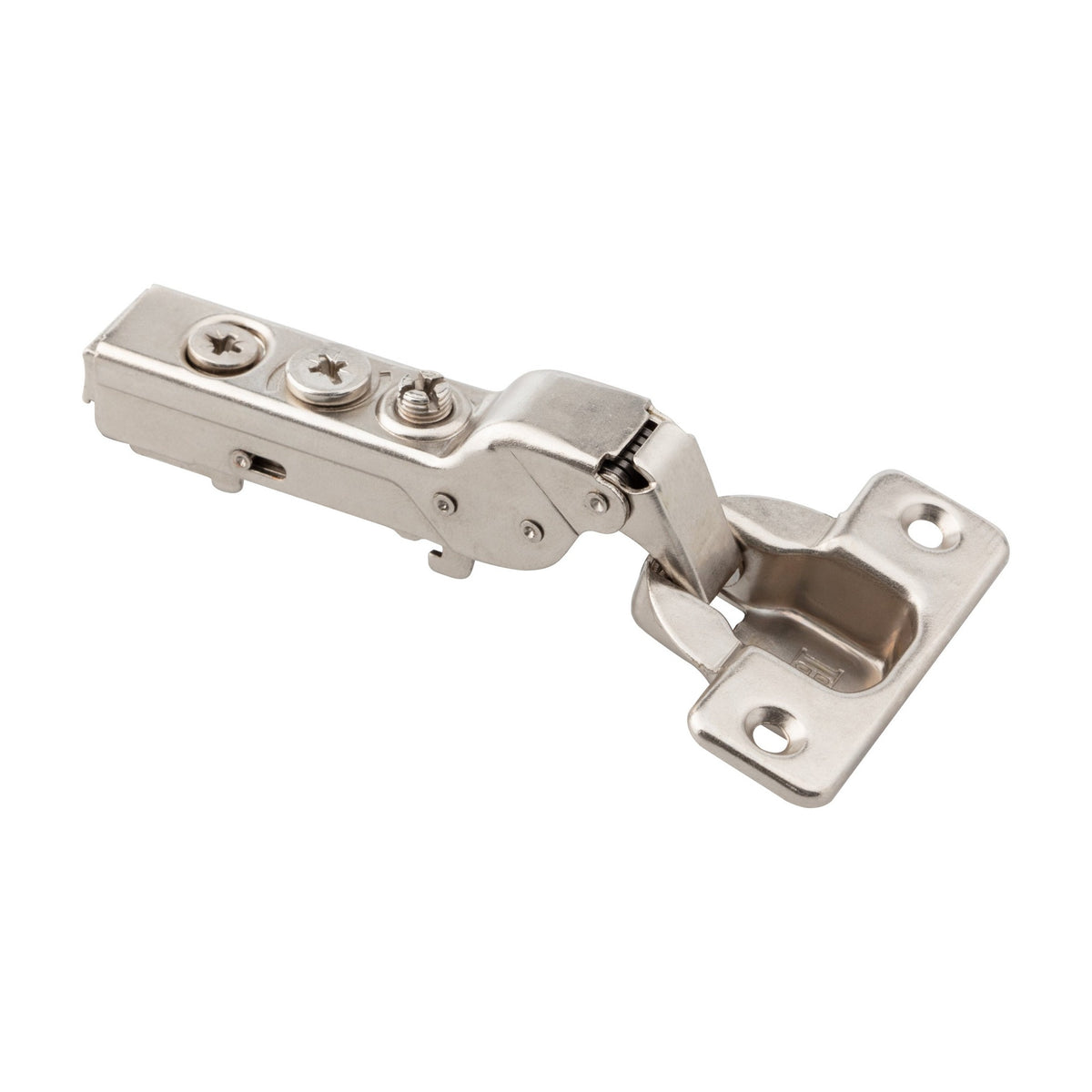

- SKUs: 90 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 1750.0161.25; 110 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, No Dowels: 1750.0535.25; 110 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 1750.0181.25; 110 Degree / 9 mm Crank (Half Overlay) / Cam Adjustable, No Dowels: 1750.0536.25; 110 Degree / 9 mm Crank (Half Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 1750.0179.25; 110 Degree / 15 mm Crank (Inset) / Cam Adjustable, No Dowels: 1750.0280.25; 110 Degree / 15 mm Crank (Inset) / Cam Adjustable, Press-in 8 mm Dowels: 1750.0537.25
Imagine a kitchen or closet where every door and drawer feels solid and smooth. Let the 1750 Series Adjustable Soft-Close European Hinge bring that well built feeling to the space you are creating.
