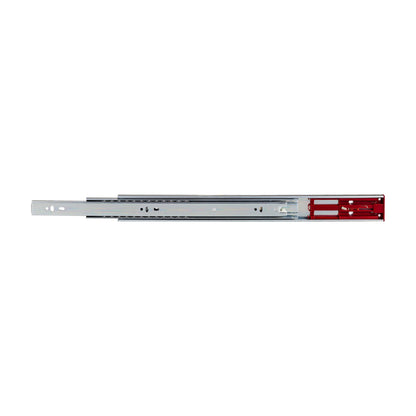

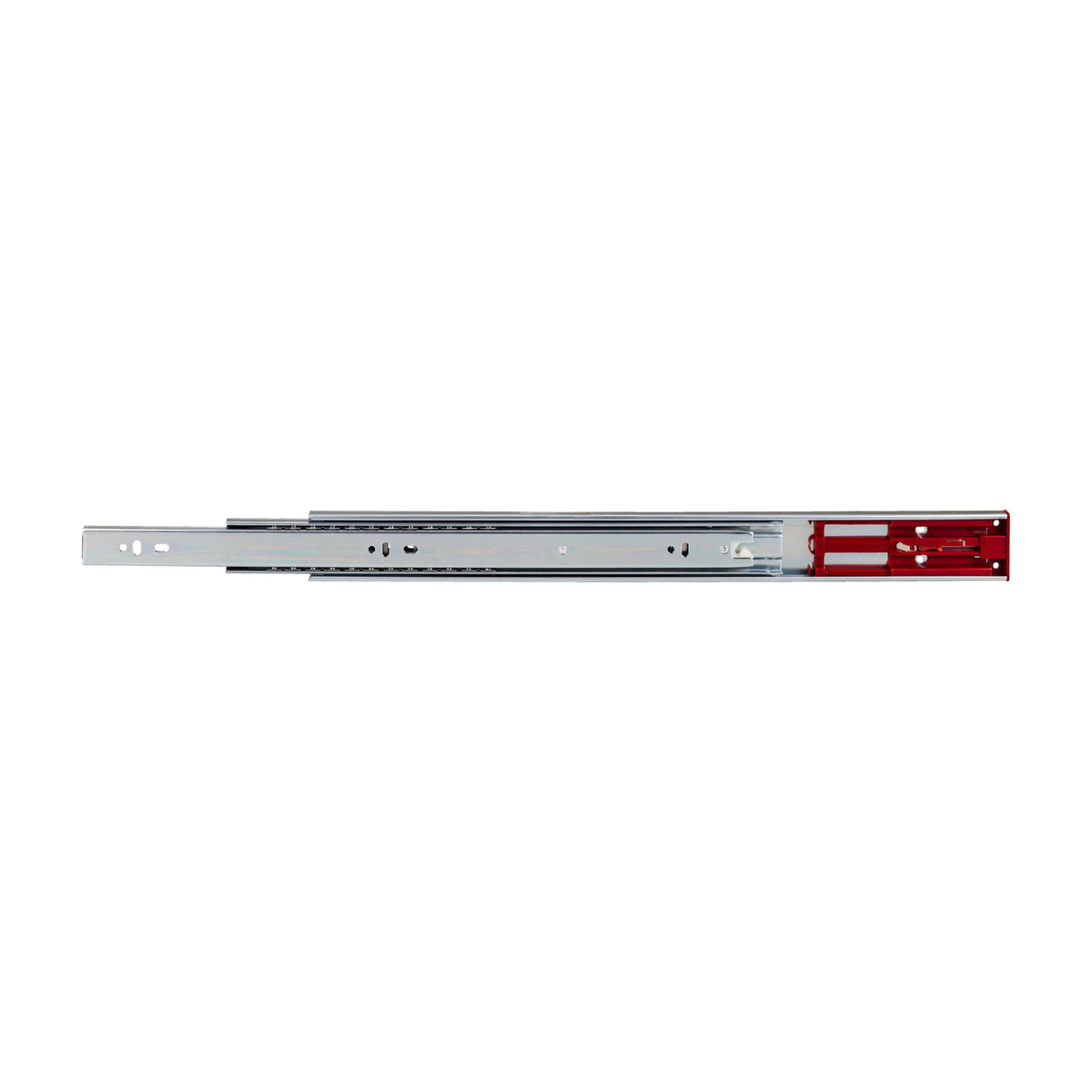

303-200 Series Push-to-Open Ball Bearing Drawer Slide
303-200 Series Push-to-Open Ball Bearing Drawer Slide
SKU: 303-200-14
Request Pricing
This brand does not allow prices to be listed online. Check the items you want and we will email you the prices, plus next steps on how to order. Prefer to talk? Call 657-279-8130.
PRODUCT DESCRIPTION
Zinc plated steel heavy duty ball bearing slide rated for 100 lb with push-to-open, so handleless drawers open with a light press. A heavy duty 100 lb push-to-open ball bearing slide designed for use in either frameless or face frame applications. Very popular for use in a cutlery drawer insert or when a clean, no-hardware look is required on doors and drawer fronts.
Key Features
- Non-handed trigger disconnect release
- 45 mm profile height
- 1/2" side spacing
- 1.0 mm x 1.0 mm x 1.2 mm cold rolled steel material
- Clear zinc electroplated finish
- 6.3 mm Euro screw or #8 x 7/16" truss head screw is recommended
- For inset applications no special installation required
- Full extension slide
Specifications
- Material: Steel
- Finish: Zinc
- Height: 45 mm
- Load rating: 100 lb
- Extension: Full Extension
- Slide type: Ball Bearing
- Installation: Screw
- Certification: ANSI/BHMA A156.9-2015 Grade 1
- Sold by: Pair
- SKUs: 14": 303-200-14; 16": 303-200-16; 18": 303-200-18; 20": 303-200-20; 22": 303-200-22
Imagine a kitchen or closet where every door and drawer feels solid and smooth. Let the 303-200 Series Push-to-Open Ball Bearing Drawer Slide bring that well built feeling to the space you are creating.
