500 Series Standard Duty European Hinge
500 Series Standard Duty European Hinge
SKU: 500.0N20.75
Request Pricing
This brand does not allow prices to be listed online. Check the options you want and we will email you the prices, plus next steps on how to order. Prefer to talk? Call 657-279-8130.
PRODUCT DESCRIPTION
Nickel plated cold rolled steel European cup hinge with 6-way adjustment when paired with a 400 Series clip-on plate, so doors can be lined up after the cabinet is hung.
Key Features
- Lever-top available: Provides toolless installation and removal
- 6-Way adjustability: Horizontal, depth and vertical with plate
- Compatible with 400 Series plates
- 1-stop action
- Cold rolled steel with nickel plating
- Hinge and plate provide 6-way adjustability
- 45 mm boring pattern
- Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
Specifications
- Material: Steel
- Finish: Polished Nickel
- Center to center: 45 mm
- Cup diameter: 35 mm
- Cup bore depth: 11.2 mm
- Adjustment: 6-Way Adjustment
- Application: Face frame and frameless
- Sold by: Each

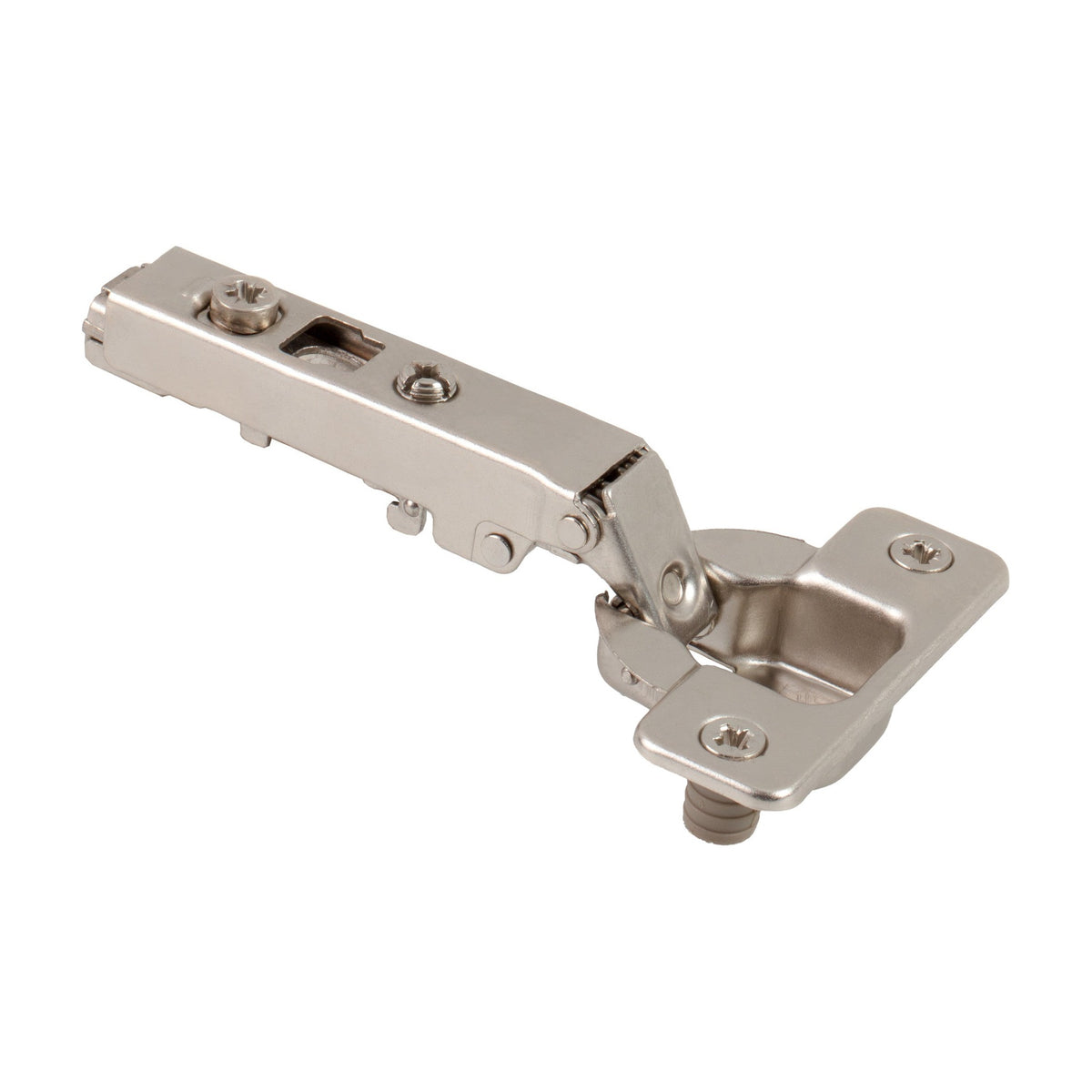

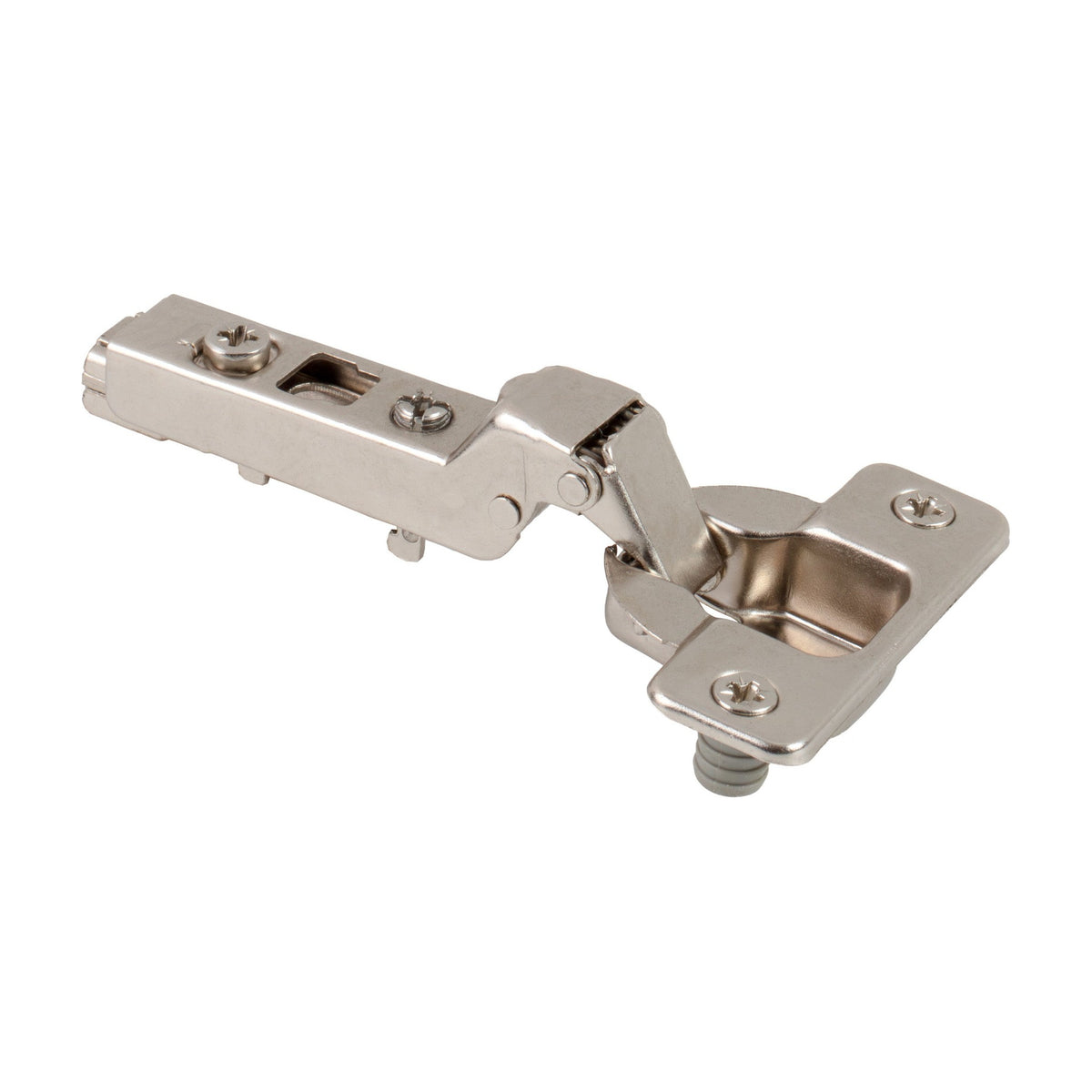

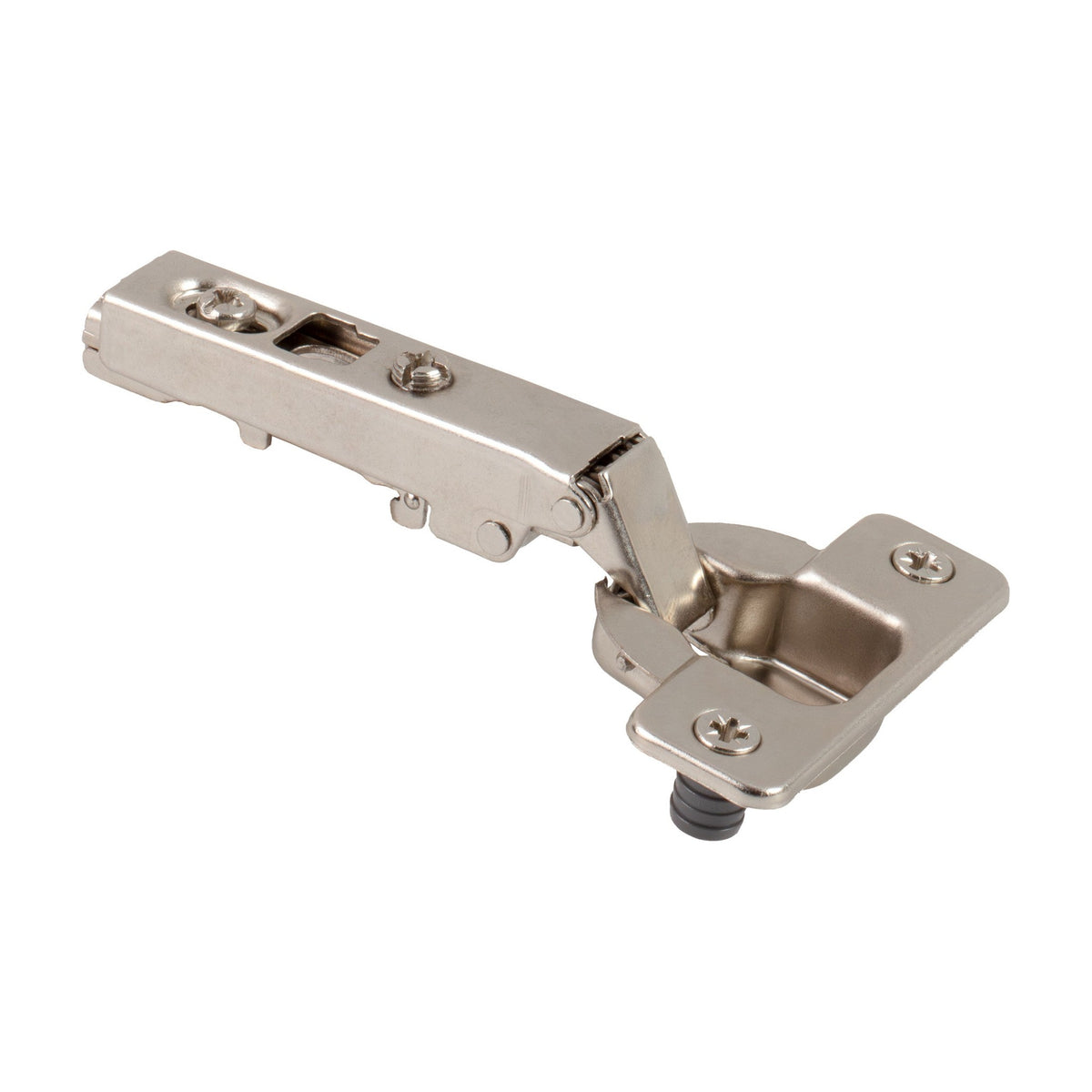

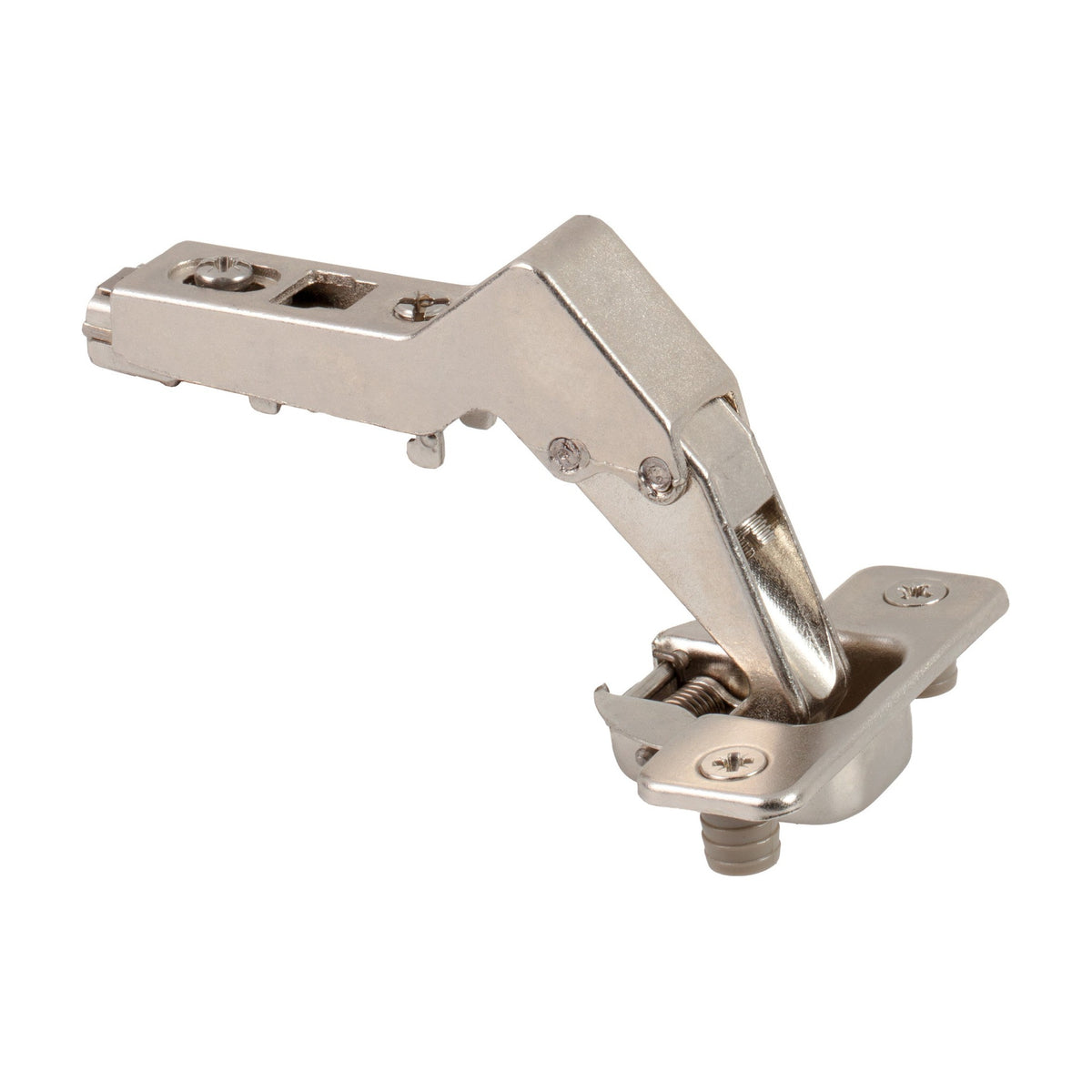

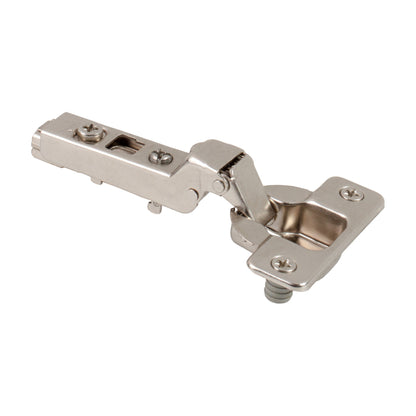

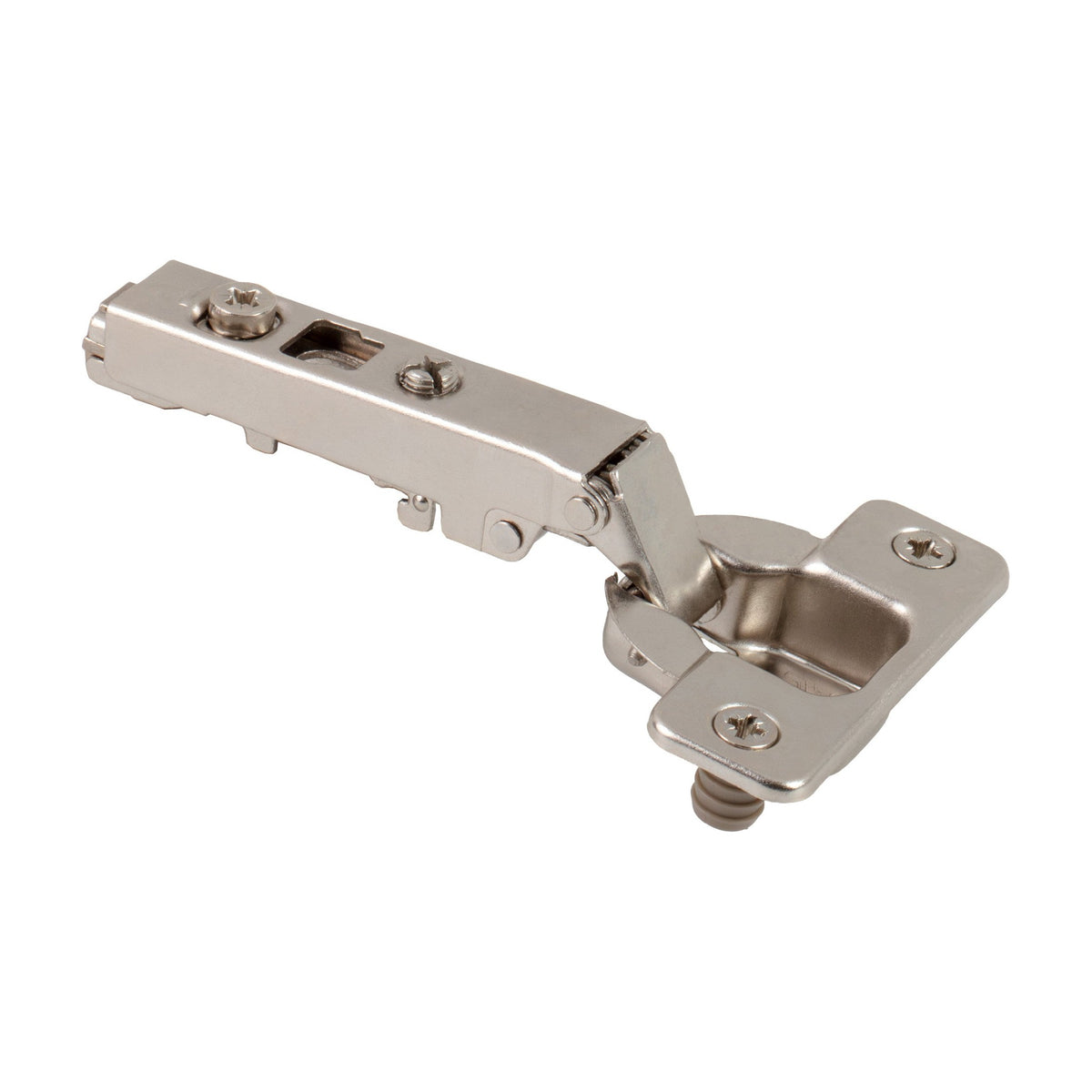

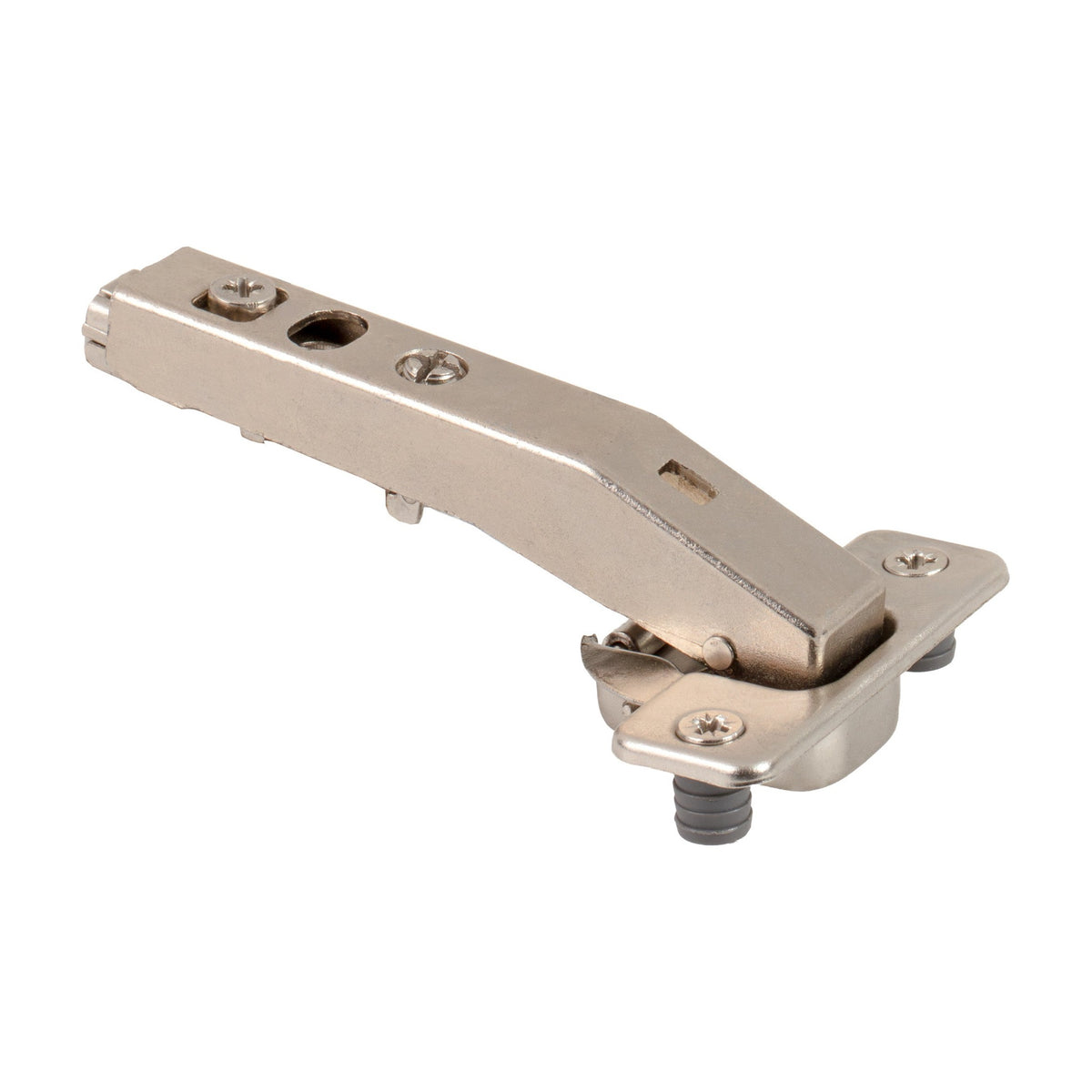

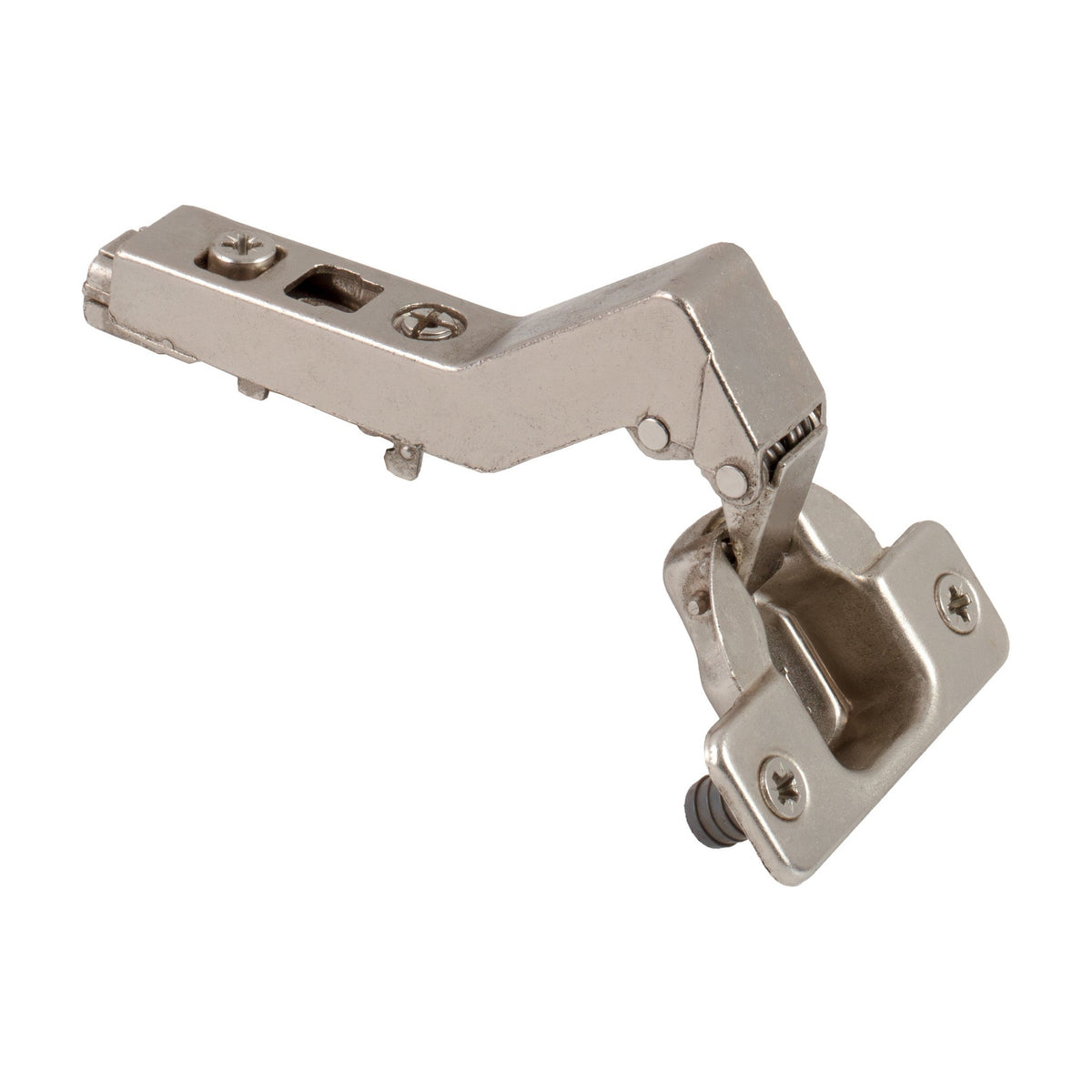

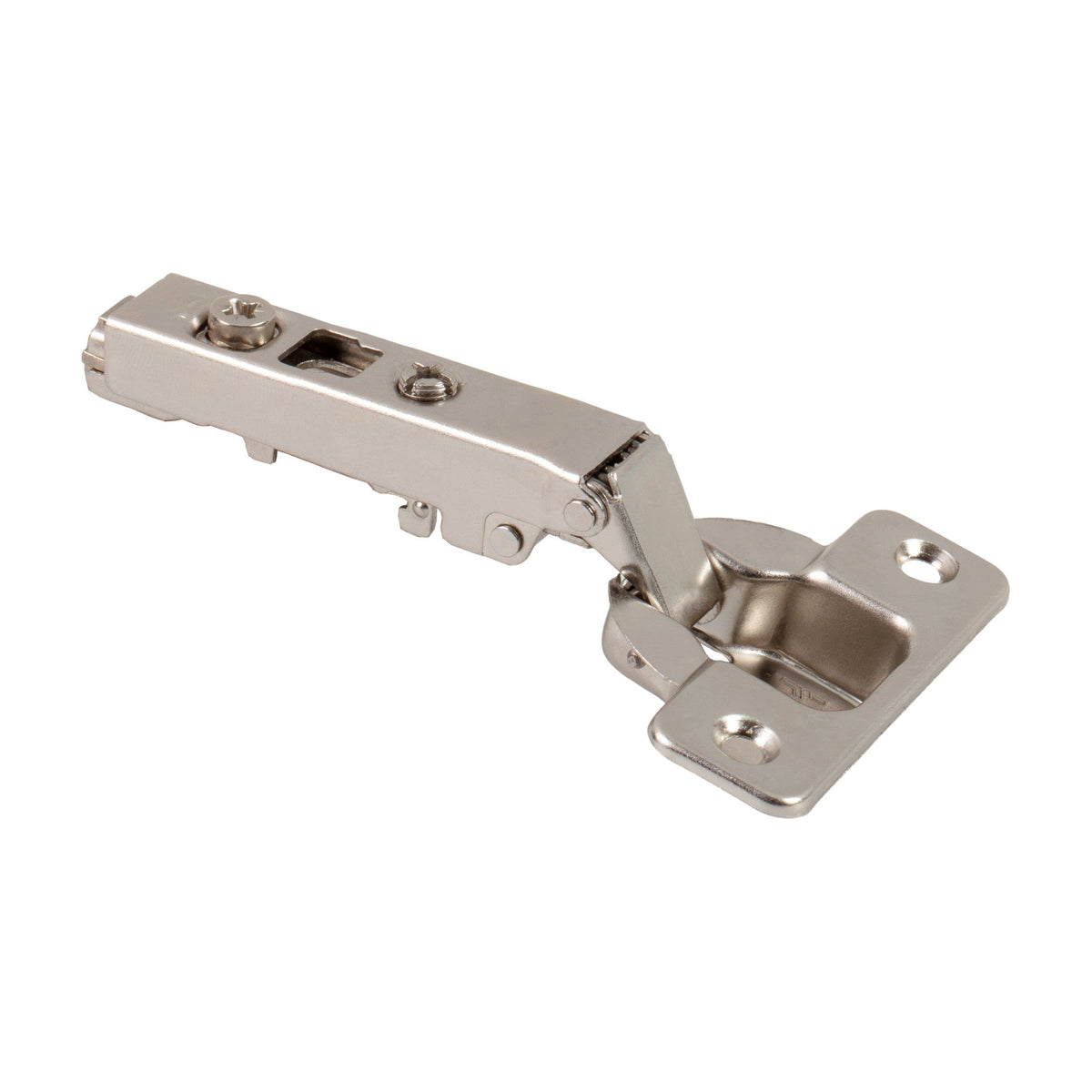

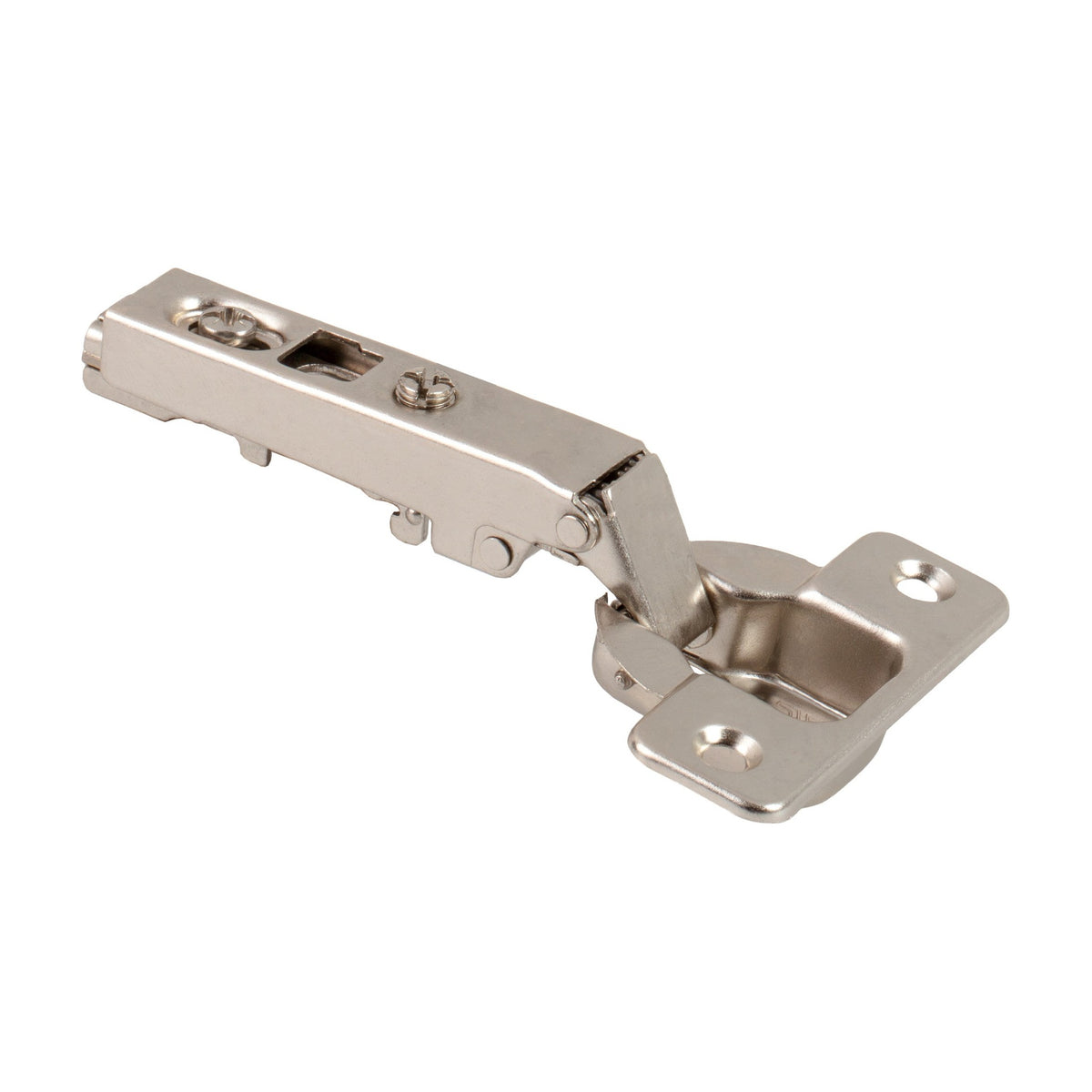

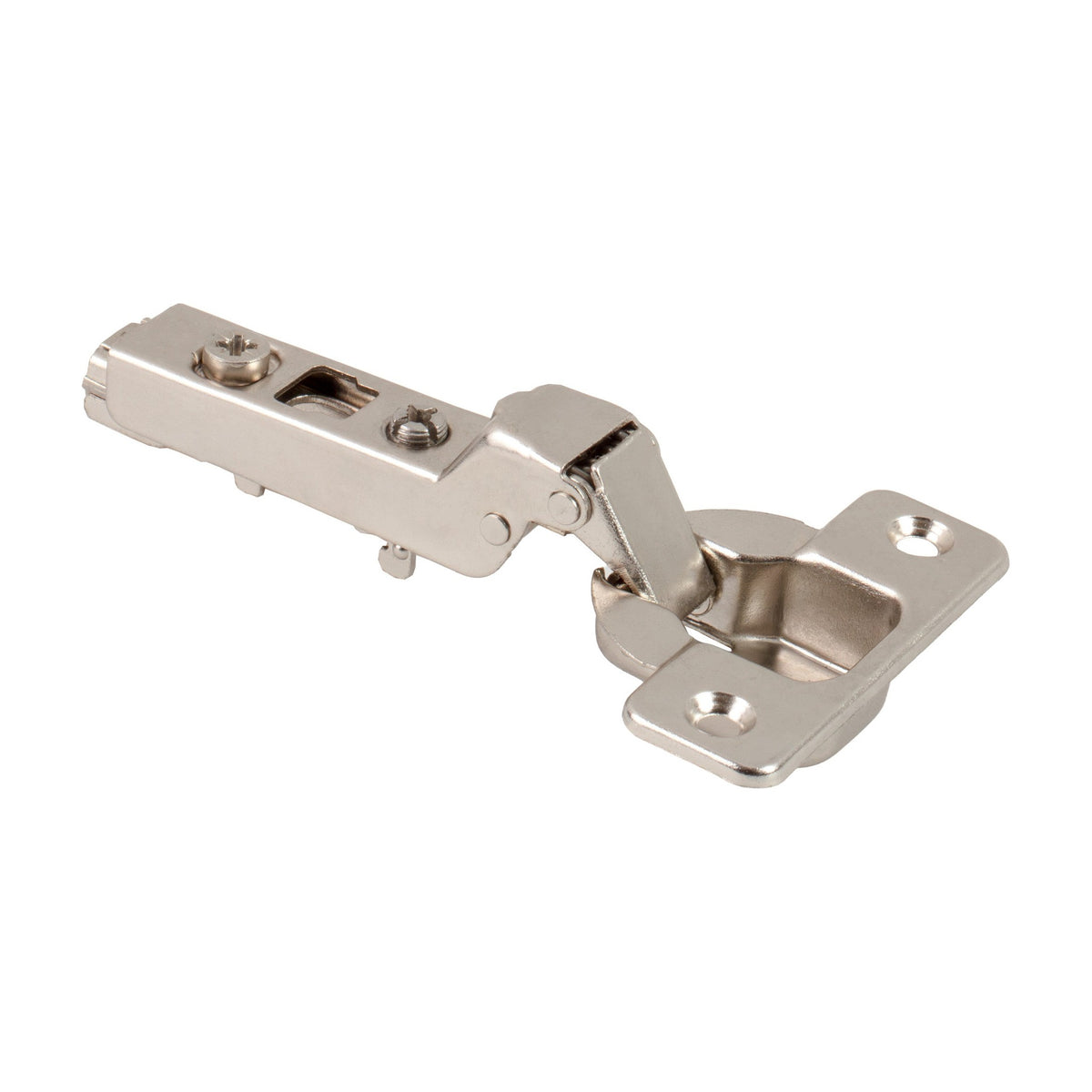

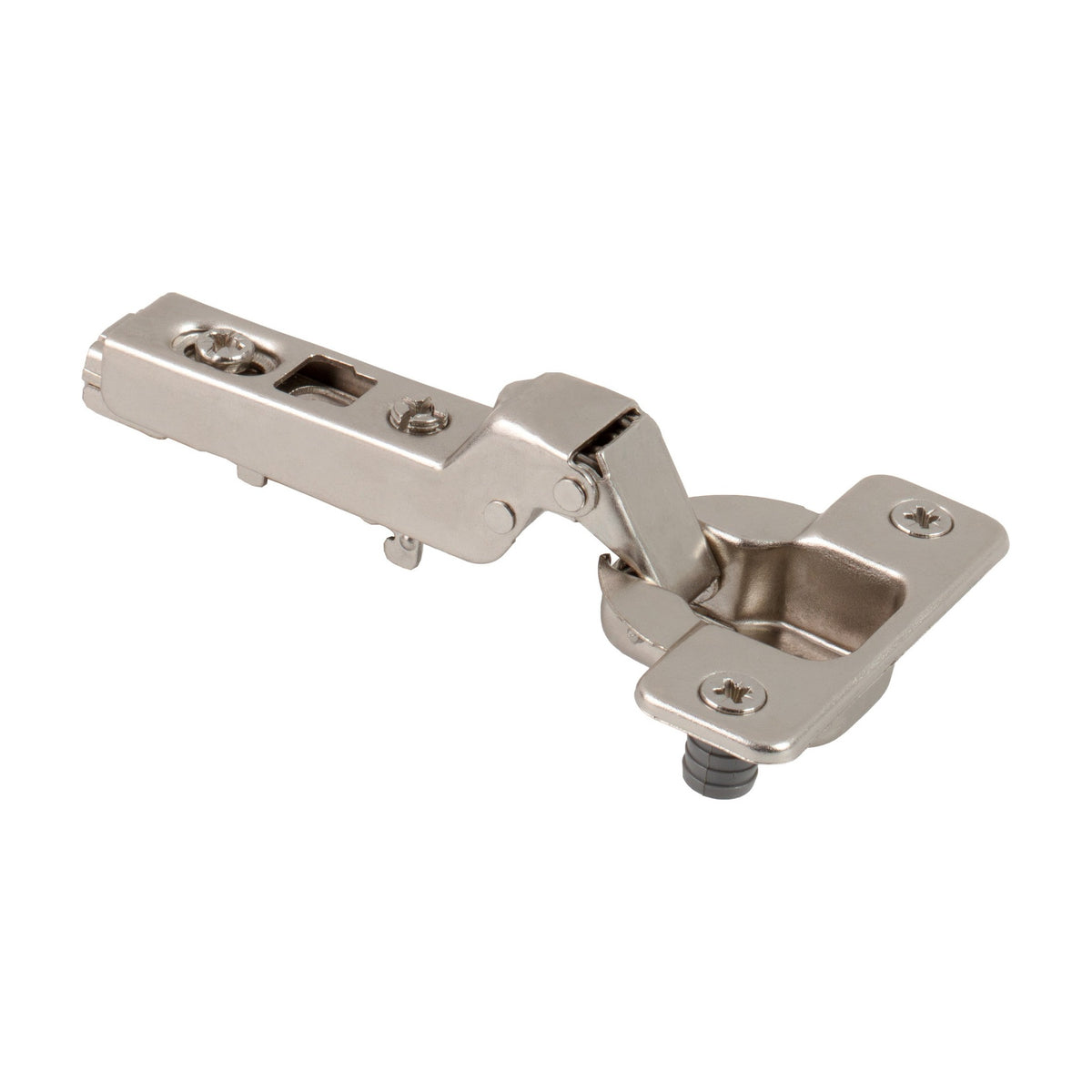

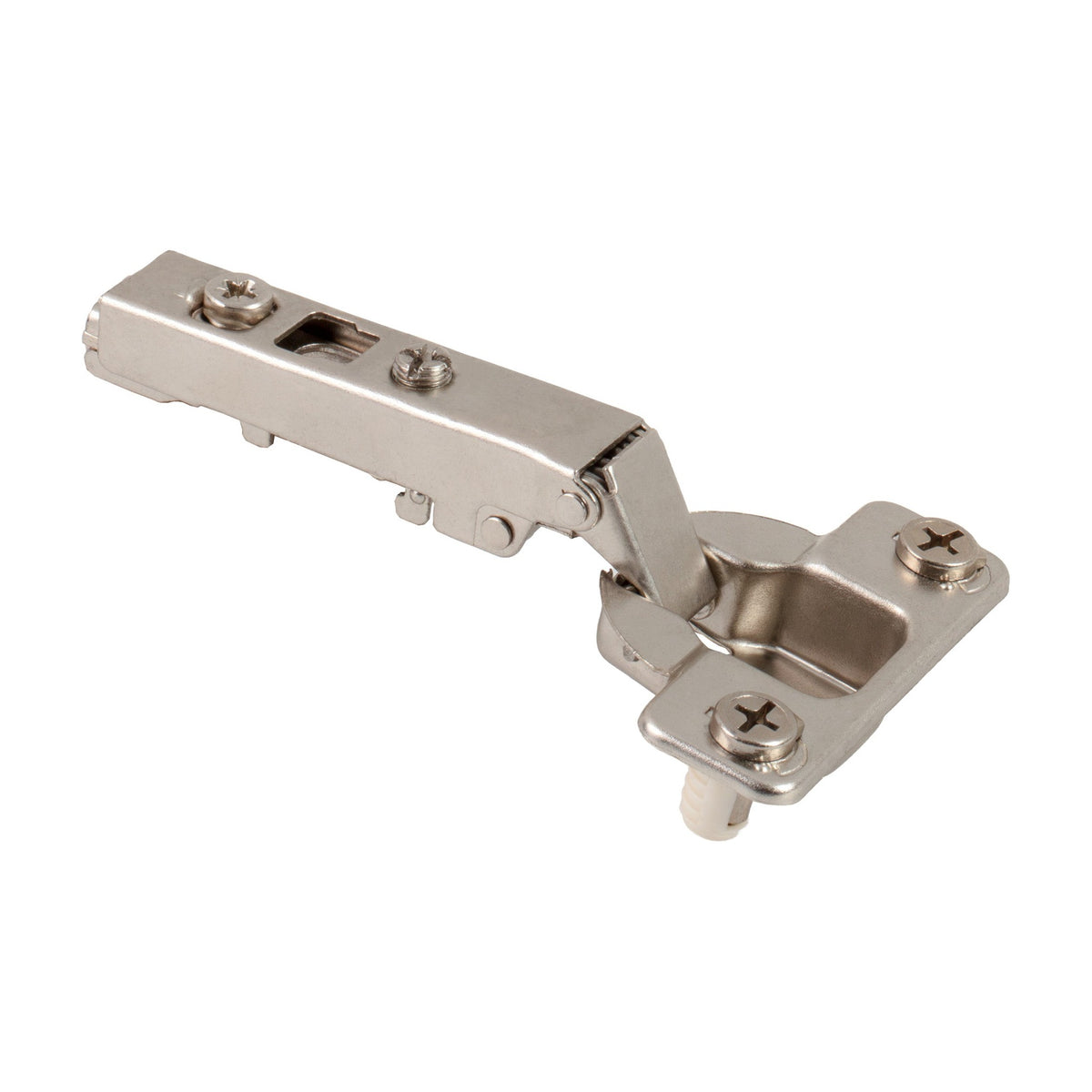

- SKUs: 45 Degree / 18 mm Crank (Inside Corner) / Cam Adjustable, Press-in 8 mm Dowels: 500.0N20.75; 90 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 500.0161.75; 90 Degree Blind Corner / 0 mm Crank / Cam Adjustable, Press-in 8 mm Dowels: 500.0N24.75; 105 Degree / 18 mm Crank (Pie Corner) / Cam Adjustable, Press-in 8 mm Dowels: 500.0U22.75; 110 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Easy-Fix Dowels: 500.0186.75; 110 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, No Dowels: 500.0535.75; 110 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 500.0181.75; 110 Degree / 0 mm Crank (Full Overlay) / Screw Adjustable, No Dowels: 500.0534.75; 110 Degree / 0 mm Crank (Full Overlay) / Screw Adjustable, Press-in 8 mm Dowels: 500.0171.75; 110 Degree / 9 mm Crank (Half Overlay) / Cam Adjustable, No Dowels: 500.0536.75; 110 Degree / 9 mm Crank (Half Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 500.0179.75; 110 Degree / 9 mm Crank (Half Overlay) / Screw Adjustable, Press-in 8 mm Dowels: 500.0279.75; 110 Degree / 15 mm Crank (Full Inset) / Cam Adjustable, No Dowels: 500.0537.75; 110 Degree / 15 mm Crank (Inset) / Cam Adjustable, Press-in 8 mm Dowels: 500.0280.75; 110 Degree Free-Swinging / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 500.0141.75; 125 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Easy-Fix Dowels: 500.0U86.75; 125 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, No Dowels: 500.0U85.75; 125 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 500.0U84.75
Picture cabinets and shelving that open, close and hold just the way they should, with the 500 Series Standard Duty European Hinge working quietly behind the scenes. It is a small detail that helps your finished space look and feel polished every day.
