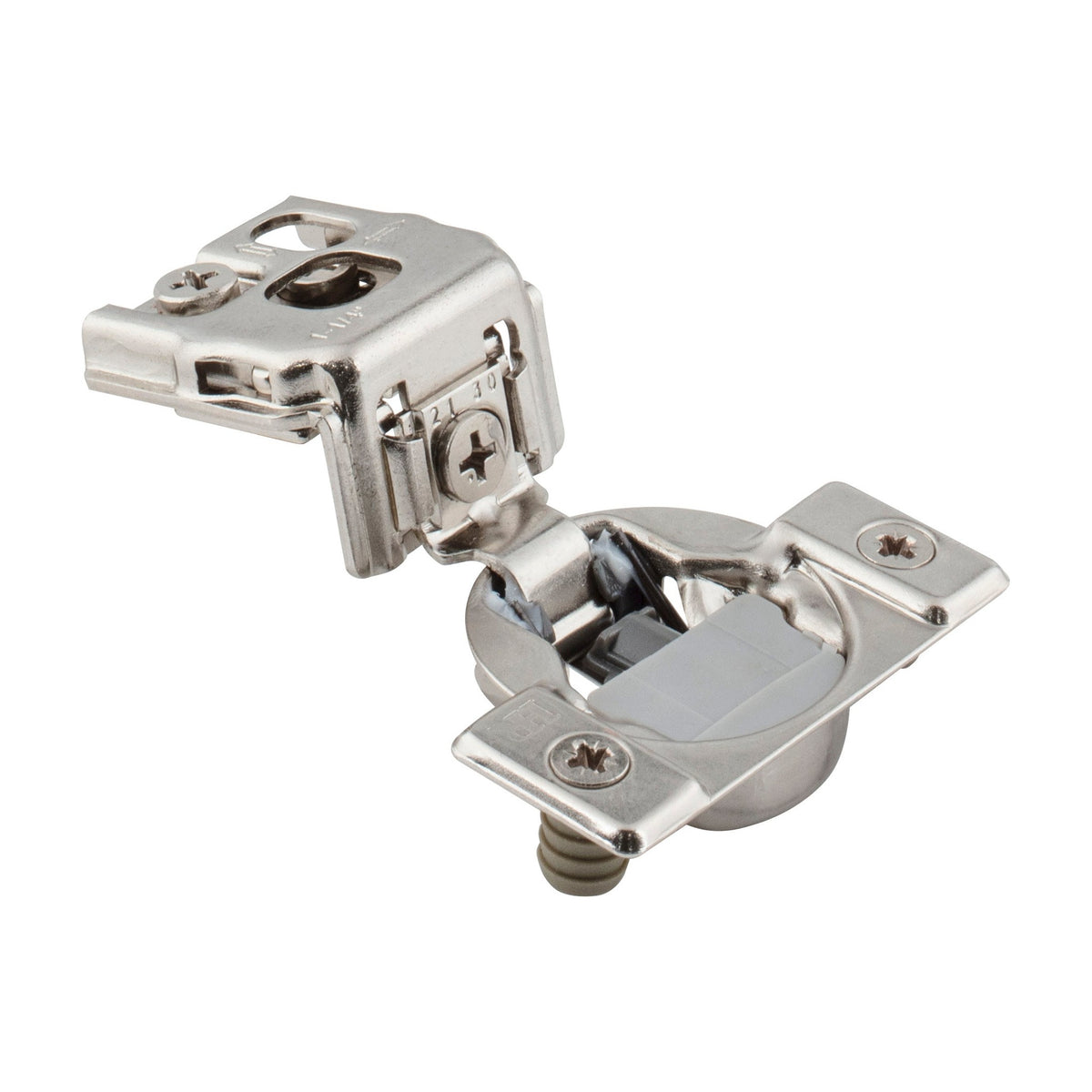

9390 Series Soft-Close Compact Hinge
9390 Series Soft-Close Compact Hinge
SKU: 9390-038
Request Pricing
This brand does not allow prices to be listed online. Check the options you want and we will email you the prices, plus next steps on how to order. Prefer to talk? Call 657-279-8130.
PRODUCT DESCRIPTION
Nickel plated steel one piece compact hinge for face frame cabinets, with built in soft-close so doors shut quietly without slamming. Hardware Resources' smoothest and most long-lasting soft-close hinge to date is perfect for when quality and performance are a must.
Key Features
- Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
- For face frame applications
- Single pivot point
- #7 x 5/8" pan washer head screw recommended for installation (item # 7X0580WCQ)
- One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
- Compatible with 8390 Series self-close hinges
- Easy soft-close speed adjustment
- One piece compact assembly with vertical, horizontal, and depth cam adjustment
Specifications
- Material: Steel
- Finish: Nickel
- Opening angle: 105°
- Cup diameter: 35 mm
- Cup bore depth: 11.2 mm
- Adjustment: 6-Way Adjustment
- Installation: Screw
- Application: Face Frame
- Sold by: Each
- SKUs: 3/8" / Dowels / Standard: 9390-038; 7/16" / Dowels / Standard: 9390-716; 1/2" / 2 Cleat, Dowels / Standard: 9390-2-2C; 1/2" / 2 Cleat, No Dowels / Standard: 9390-2C; 1/2" / Dowels / Adjustable: 9390-2-000ADJ; 1/2" / Dowels / Standard: 9390-2-000; 1/2" / No Dowels / Adjustable: 9390ADJ; 1/2" / No Dowels / Standard: 9390; 5/8" / Dowels / Standard: 9390-058; 3/4" / Dowels / Standard: 9390-6-000; 1" / Dowels / Standard: 9391-000; 1-1/4" / 2 Cleat, Dowels / Standard: 9394-2C; 1-1/4" / Dowels / Adjustable: 9394-000ADJ; 1-1/4" / Dowels / Standard: 9394-000; 1-1/4" / No Dowels / Standard: 9394; 1-3/8" / Dowels / Standard: 9393-000; 1-1/2" / Dowels / Standard: 9392-000
Picture cabinets and shelving that open, close and hold just the way they should, with the 9390 Series Soft-Close Compact Hinge working quietly behind the scenes. It is a small detail that helps your finished space look and feel polished every day.
