3390 Series Economy Self-Close Compact Hinge
3390 Series Economy Self-Close Compact Hinge
SKU: 3390-2-2C
Request Pricing
This brand does not allow prices to be listed online. Check the options you want and we will email you the prices, plus next steps on how to order. Prefer to talk? Call 657-279-8130.
PRODUCT DESCRIPTION
Polished nickel steel compact hinge for face frame cabinets, an economical self-close hinge with cam adjustment for everyday doors. Hardware Resources' most economical, yet field proven compact hinge is the 3390 Series. It's hard to go wrong with this industry standard compact hinge. Options marked Full Carton ship in full cartons only.
Key Features
- 45 mm boring pattern
- #7 x 5/8" pan washer head screw (7X0580WCQ) recommended
- Cold rolled steel with nickel plating
- For face frame applications
- Single pivot point
- Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
- 105 degree opening angle
- One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
Specifications
- Material: Steel
- Finish: Polished Nickel
- Opening angle: 105°
- Cup diameter: 35 mm
- Cup bore depth: 12.5 mm
- Application: Face Frame

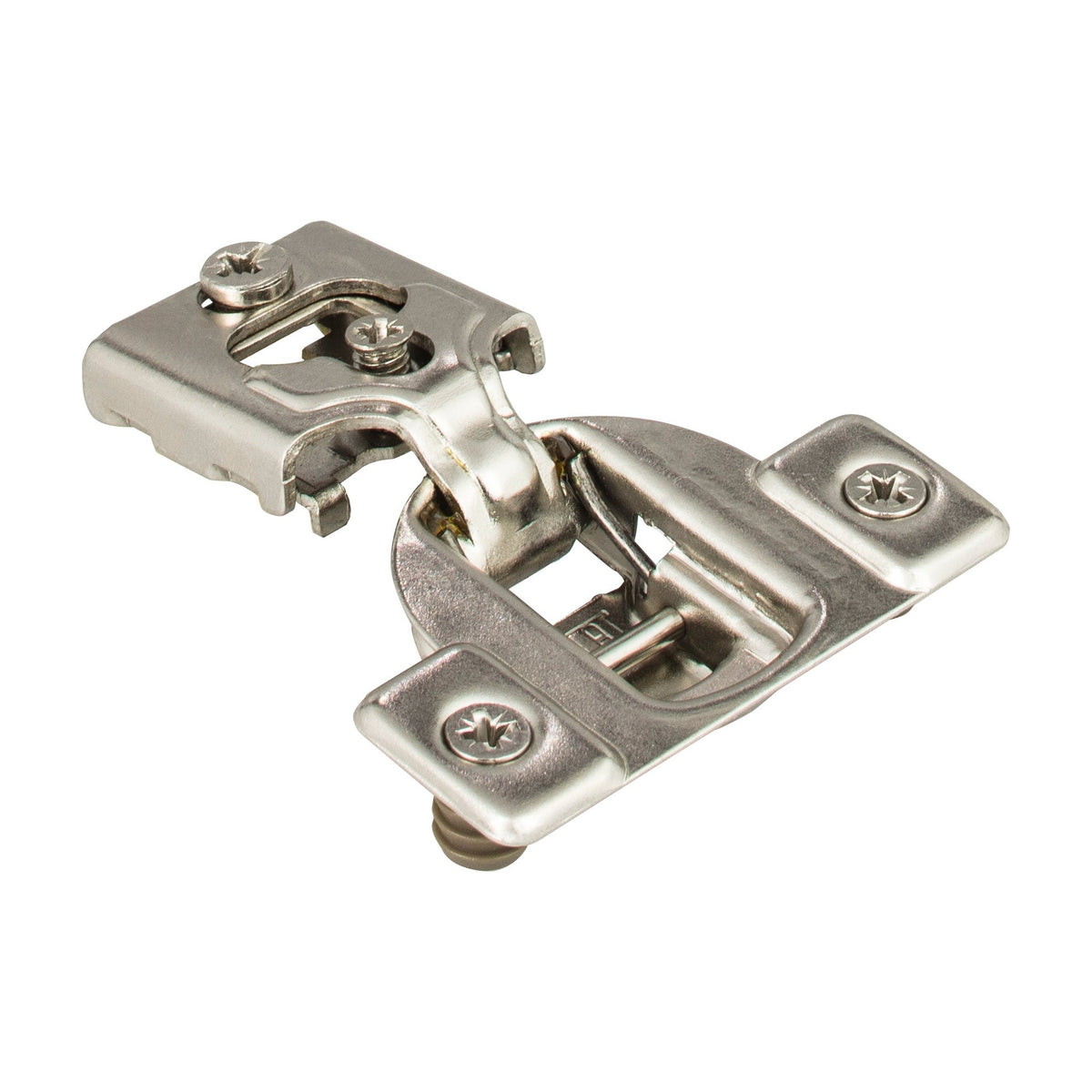

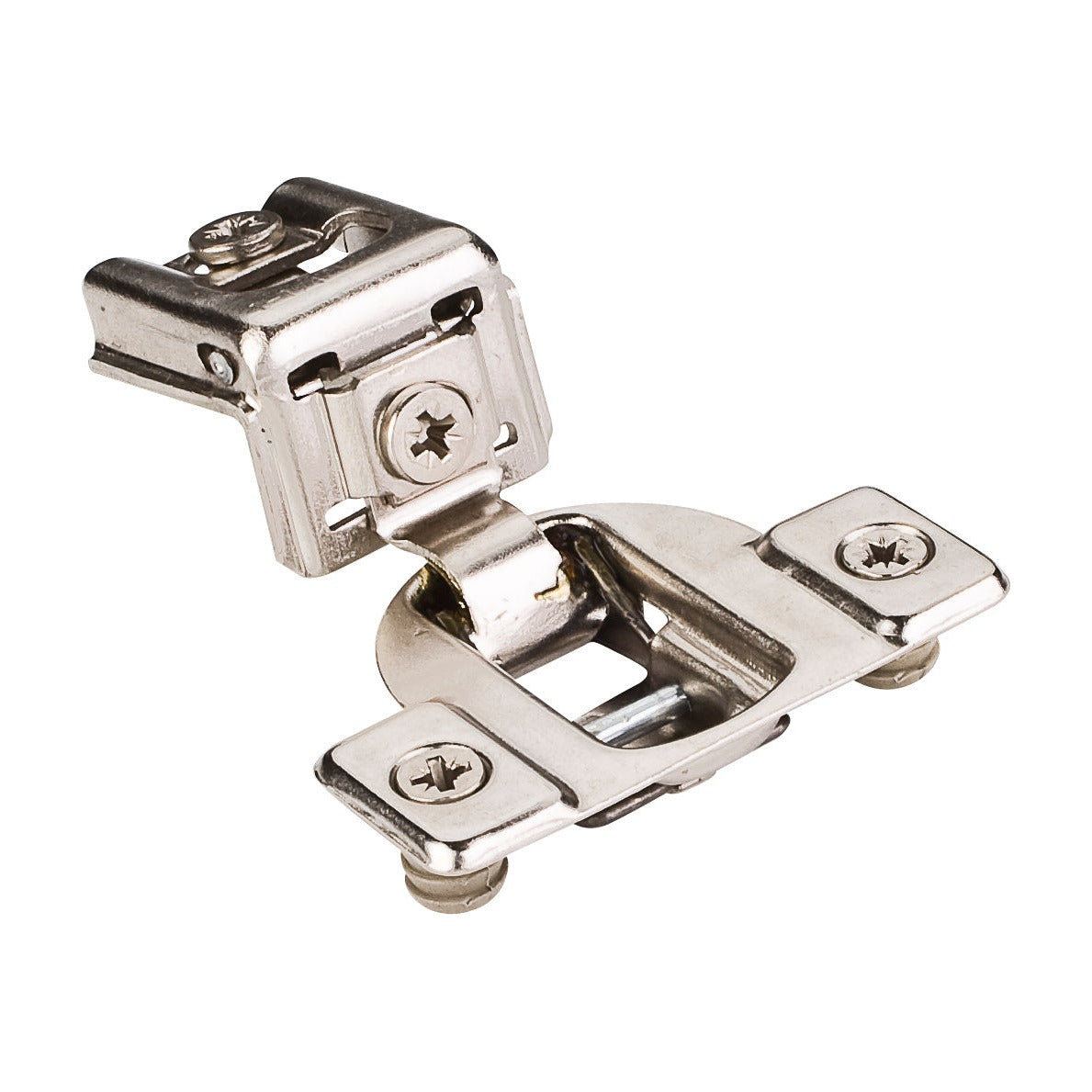

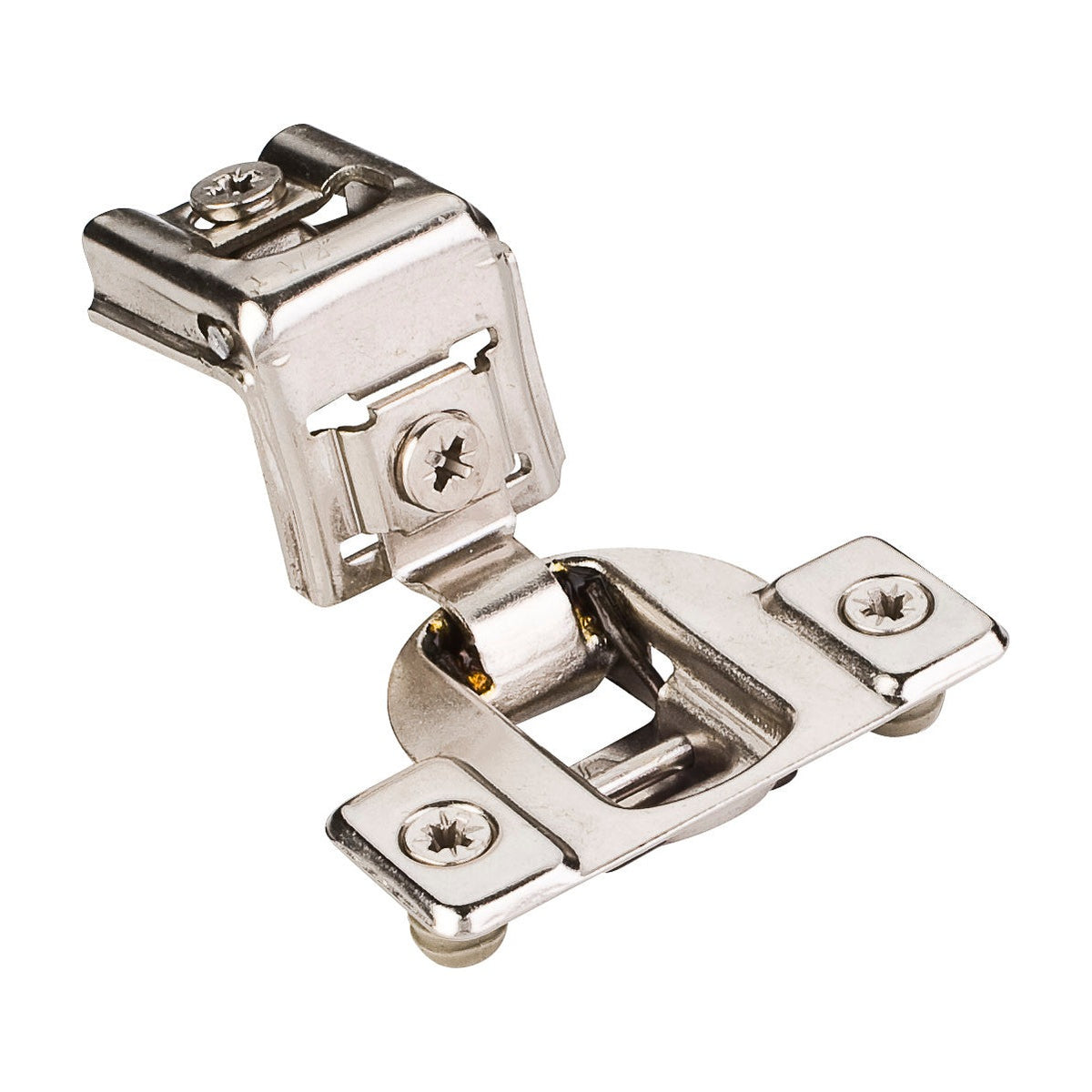

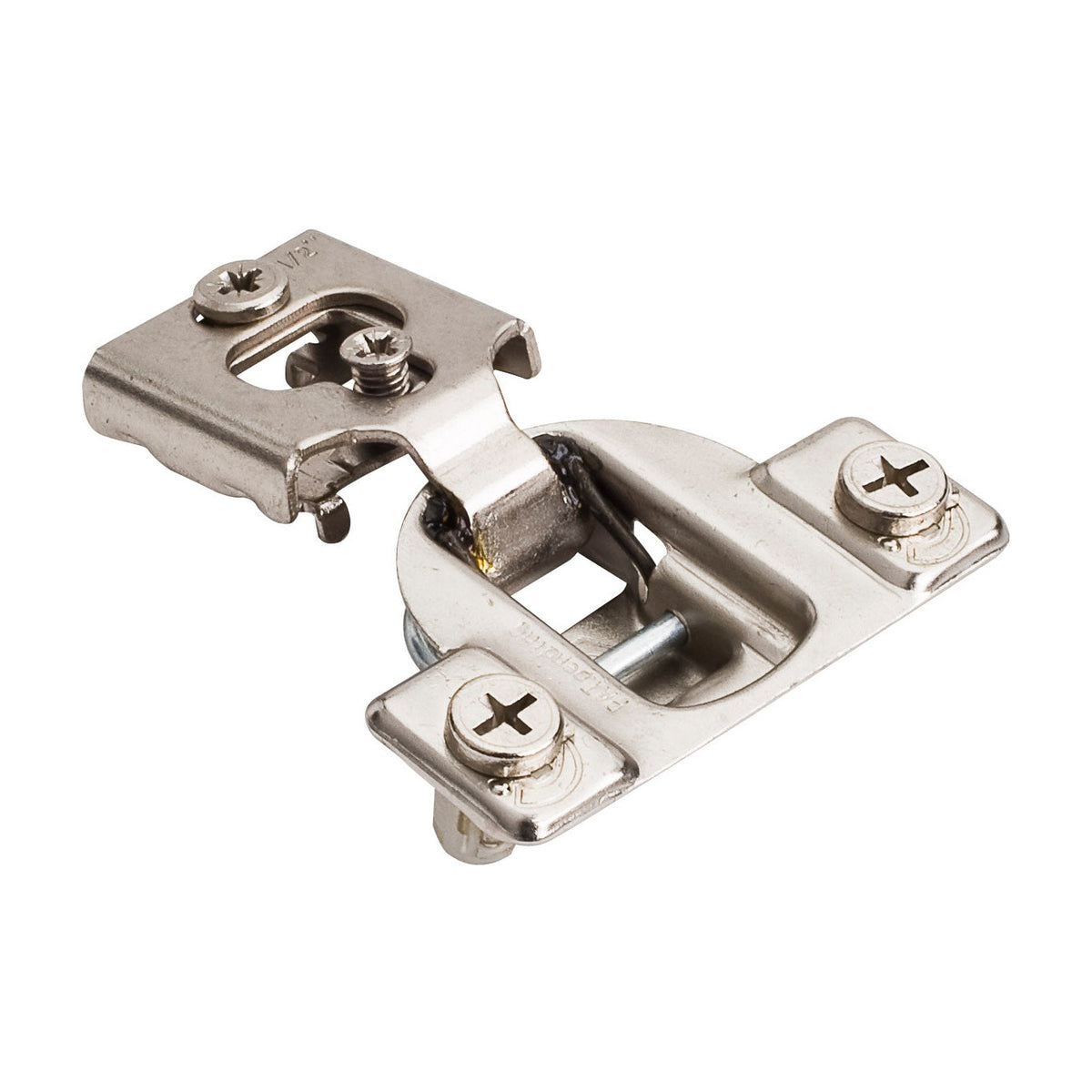

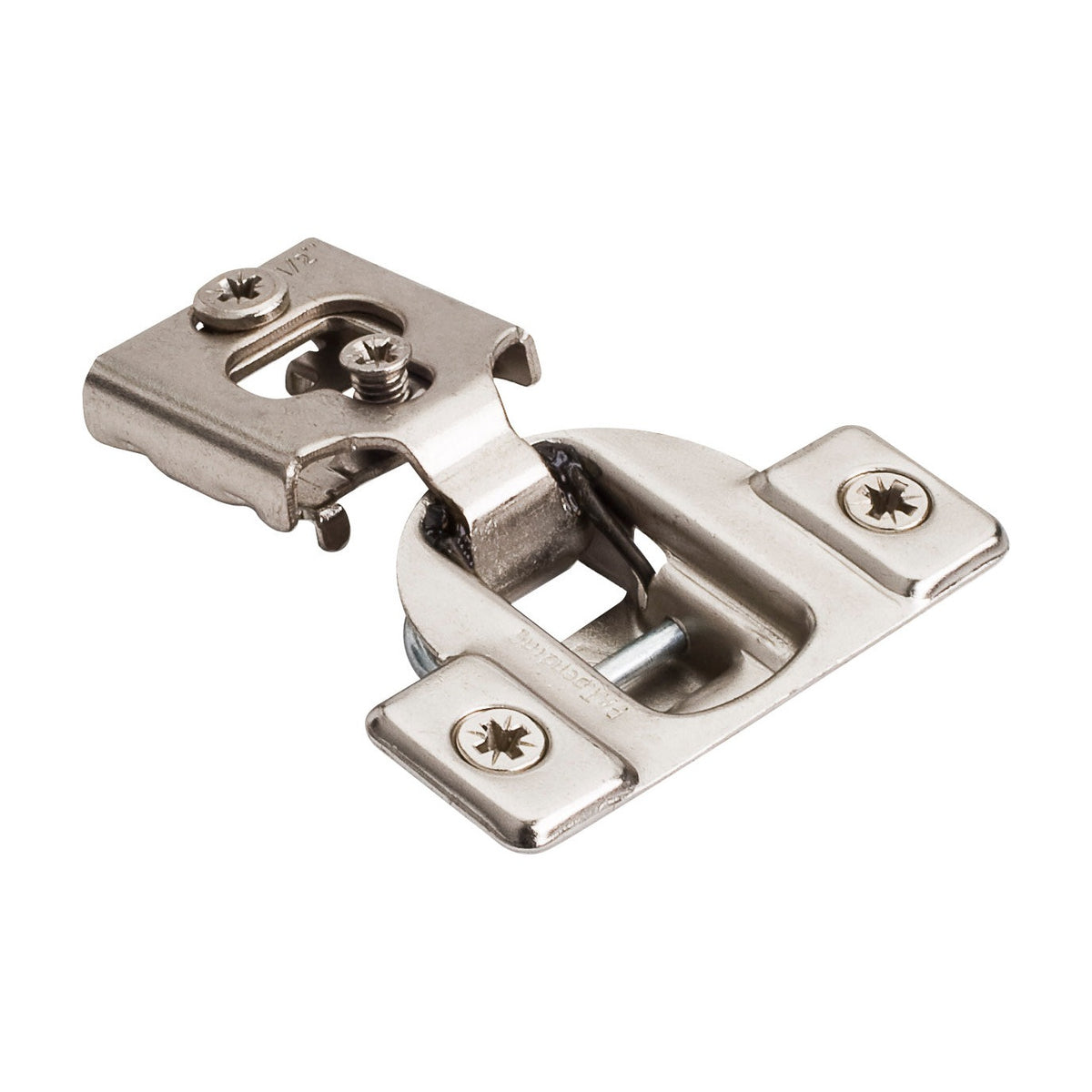

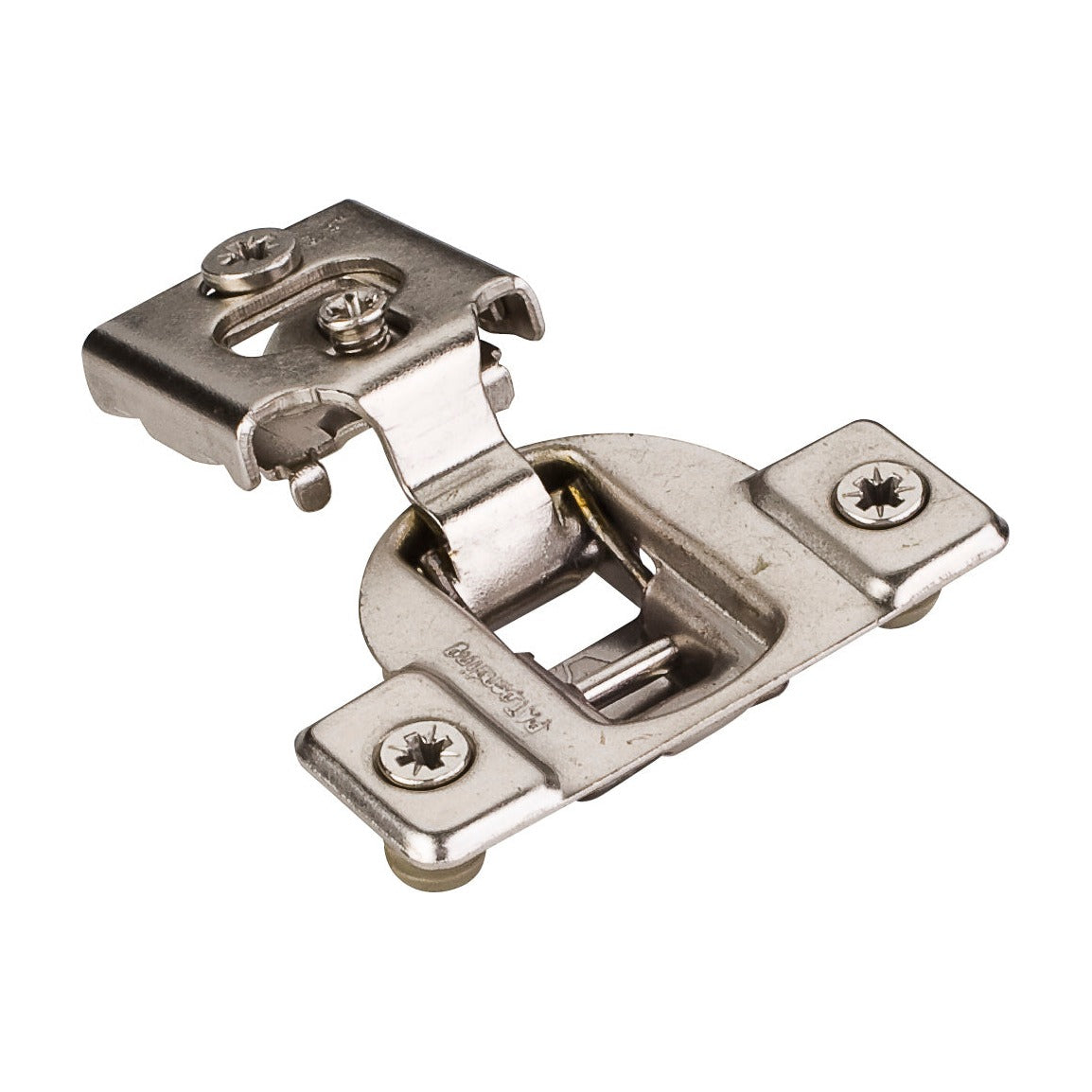

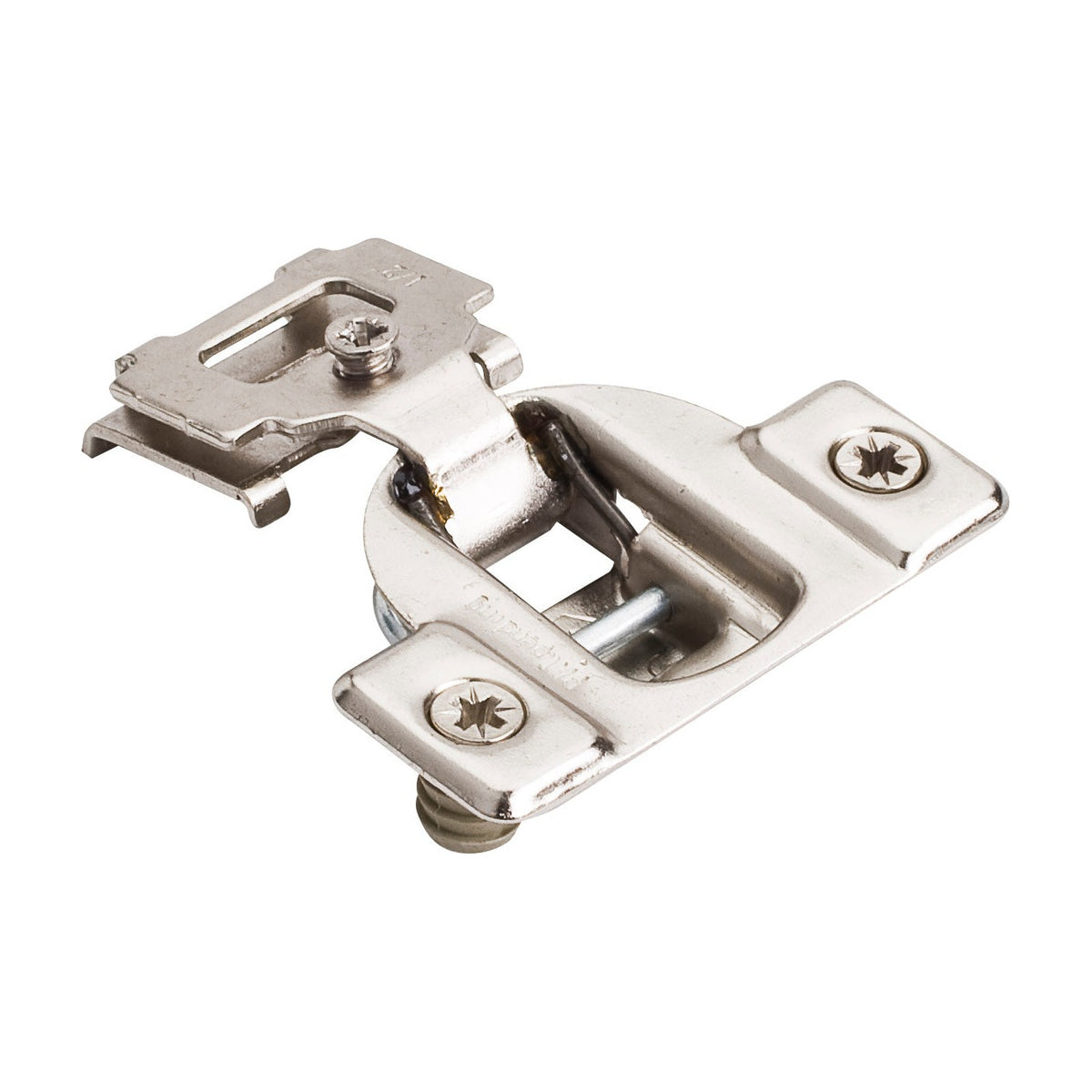

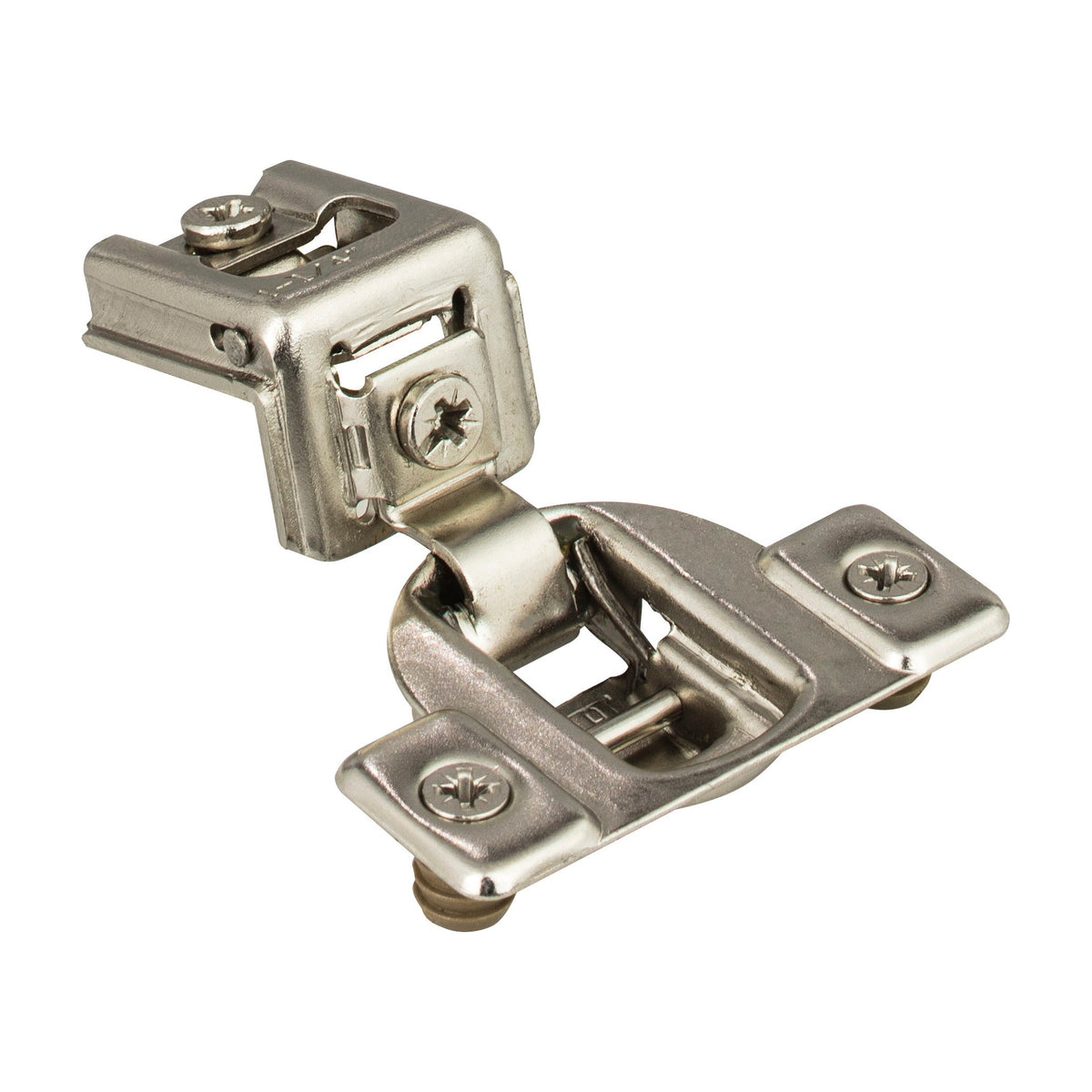

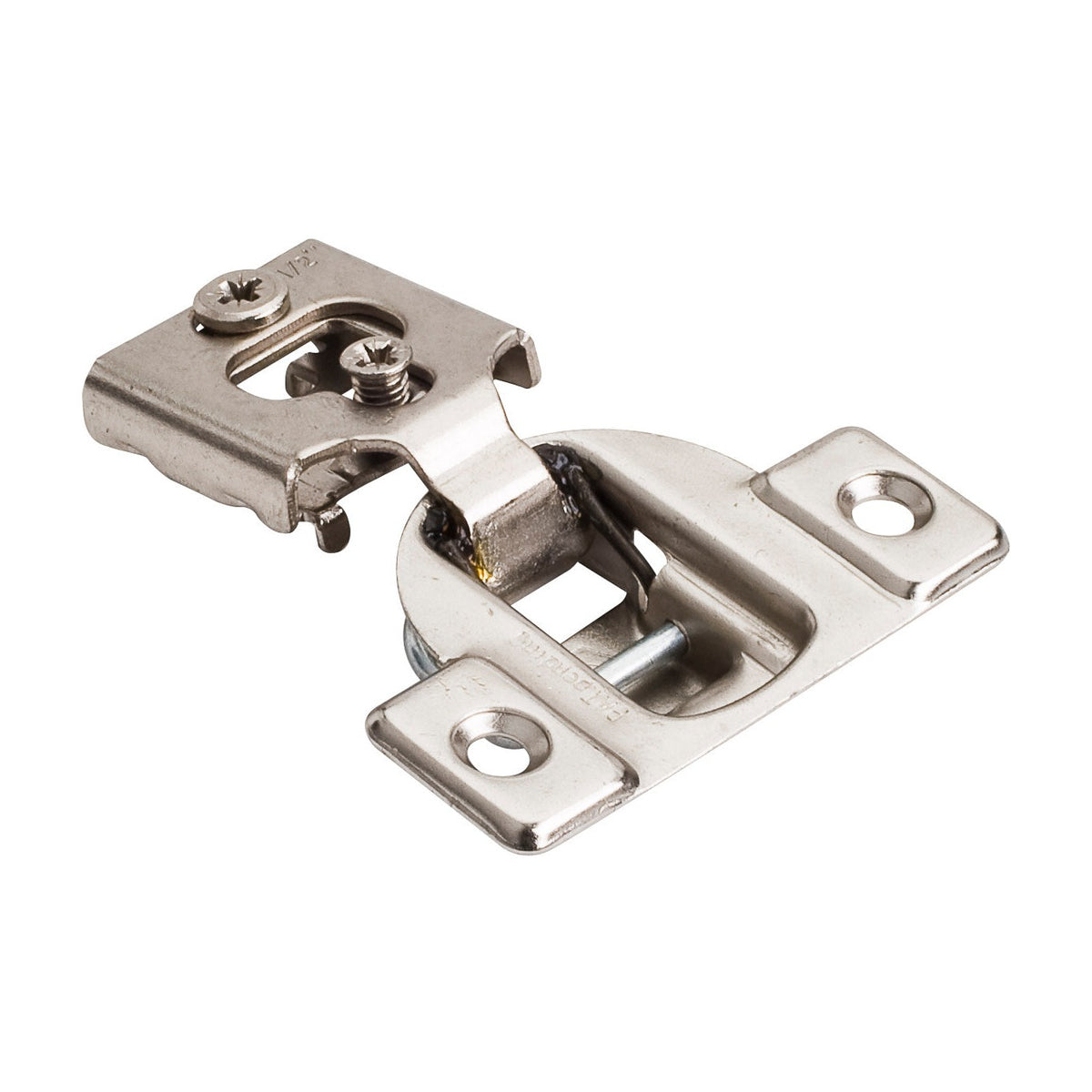

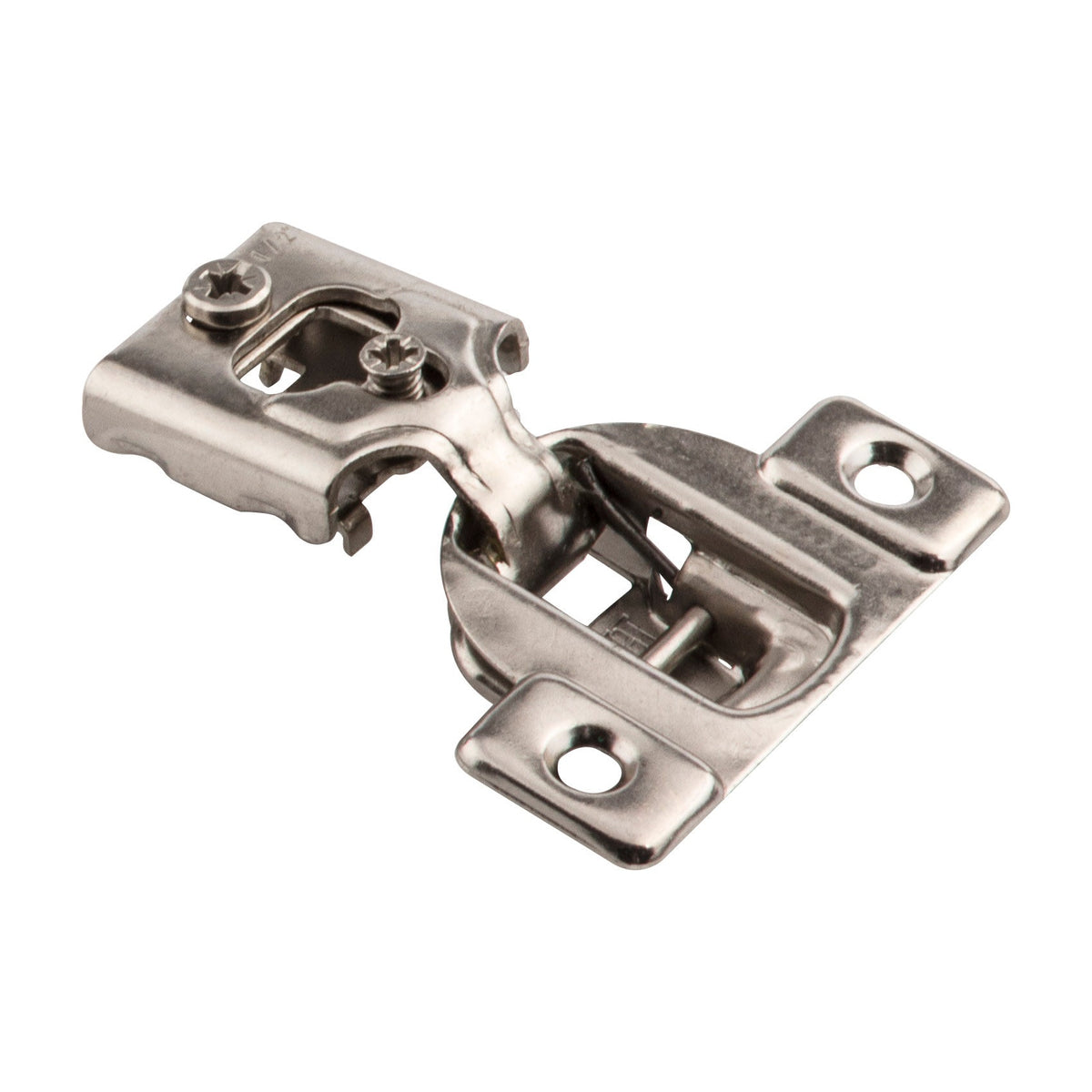

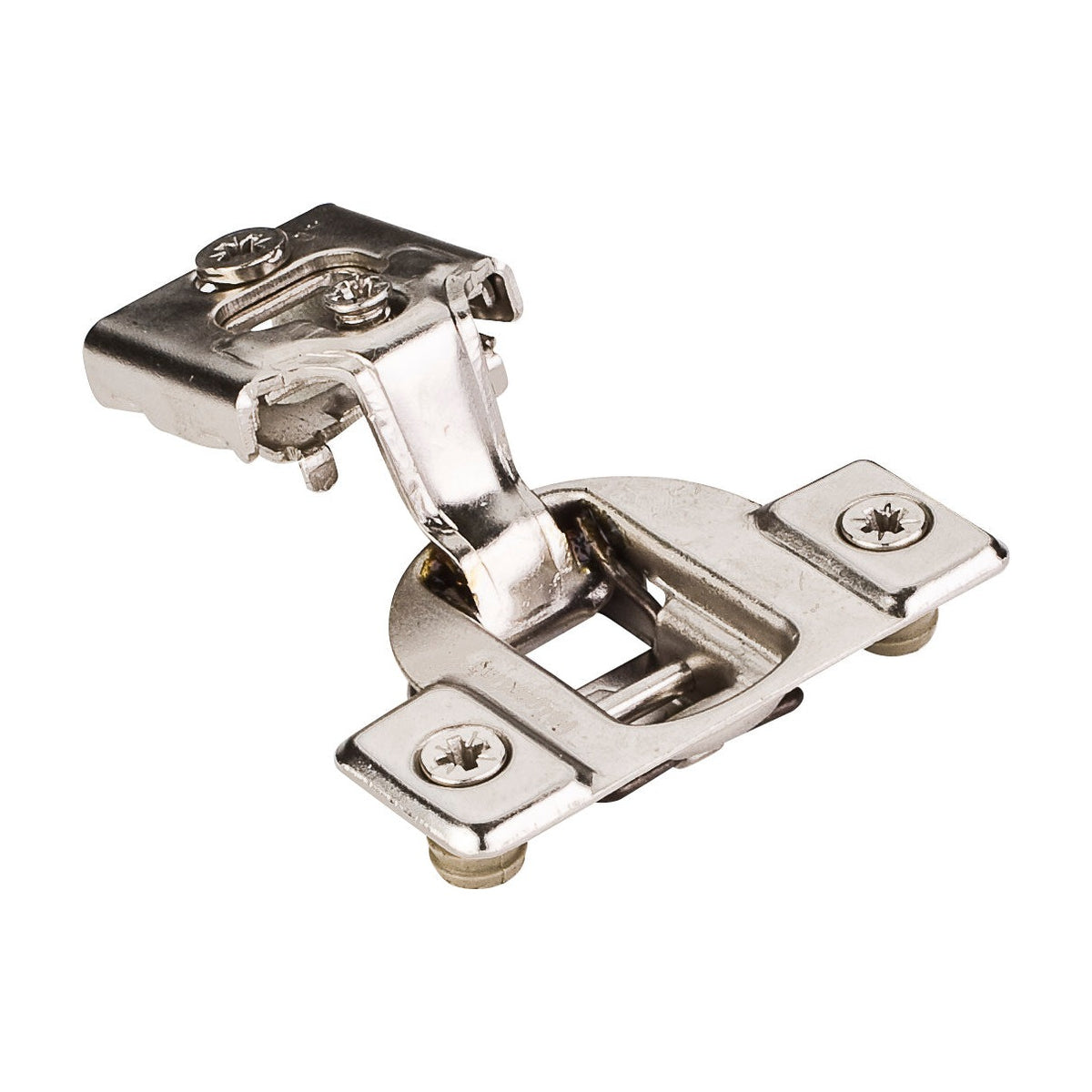

- SKUs: 1/2" / 2 Cleat, Dowels / Each: 3390-2-2C (sold by each); 1/2" / Dowels / Each: 3390-2-000 (sold by each); 1/2" / Dowels, 4-Way Adjustment / Each: 3396-000 (sold by each); 1/2" / Easy-Fix Dowels / Each: 3390-3-000 (sold by each); 1/2" / No Dowels / Each: 3390 (sold by each); 1/2" / No Dowels / Retail 2-Pack (Full Carton): 3390-R (sold by pack); 3/4" / Dowels / Each: 3390-6-000 (sold by each); 1" / Dowels / Each: 3391-000 (sold by each); 1-1/4" / 2 Cleat, Dowels / Each: 3394-2C (sold by each); 1-1/4" / Dowels / Each: 3394-000 (sold by each); 1-1/2" / Dowels / Each: 3392-000 (sold by each)
Picture cabinets and shelving that open, close and hold just the way they should, with the 3390 Series Economy Self-Close Compact Hinge working quietly behind the scenes. It is a small detail that helps your finished space look and feel polished every day.
