Hardware Resources

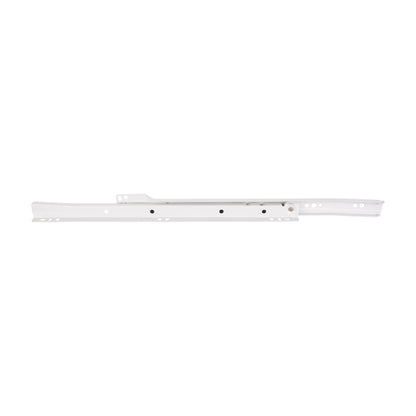

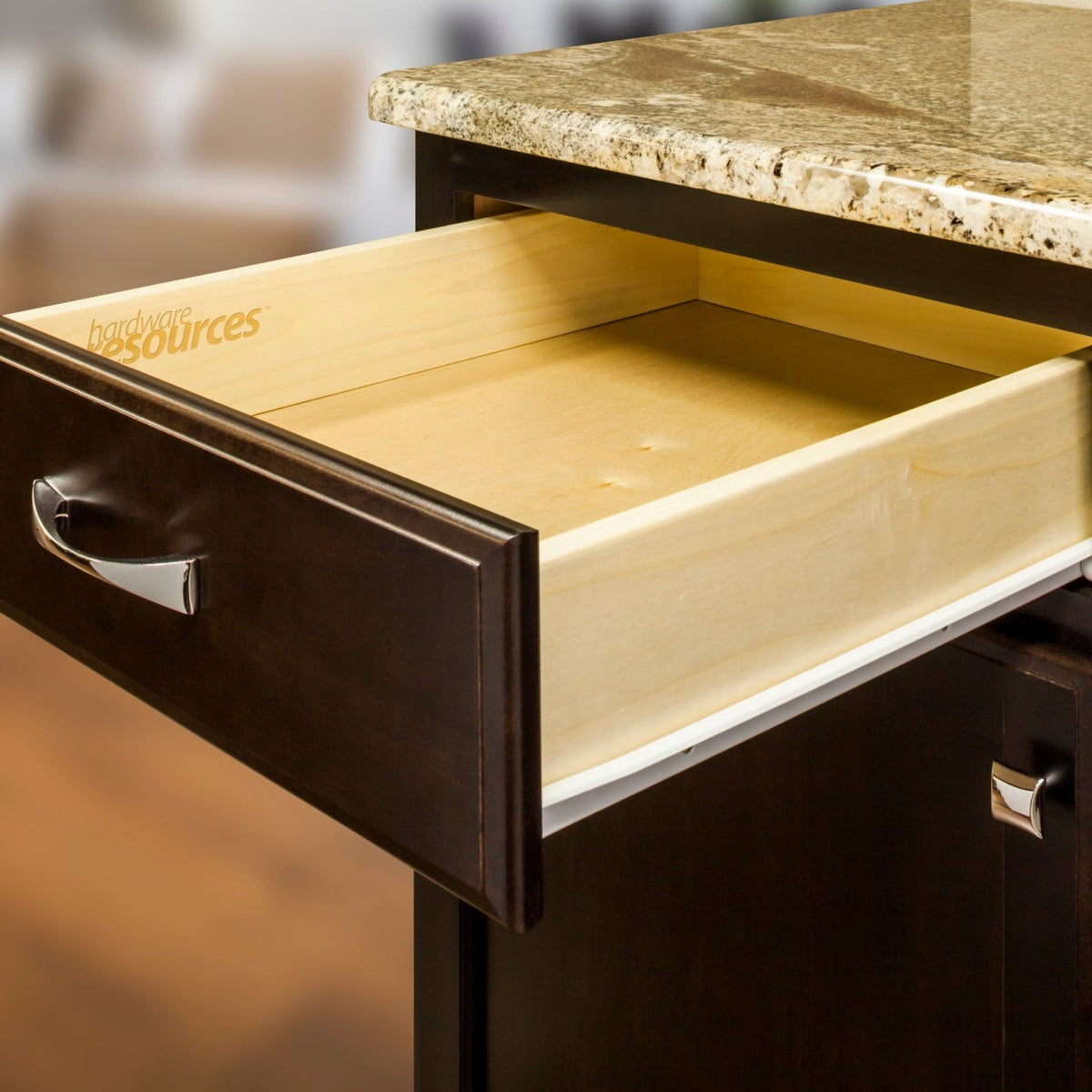

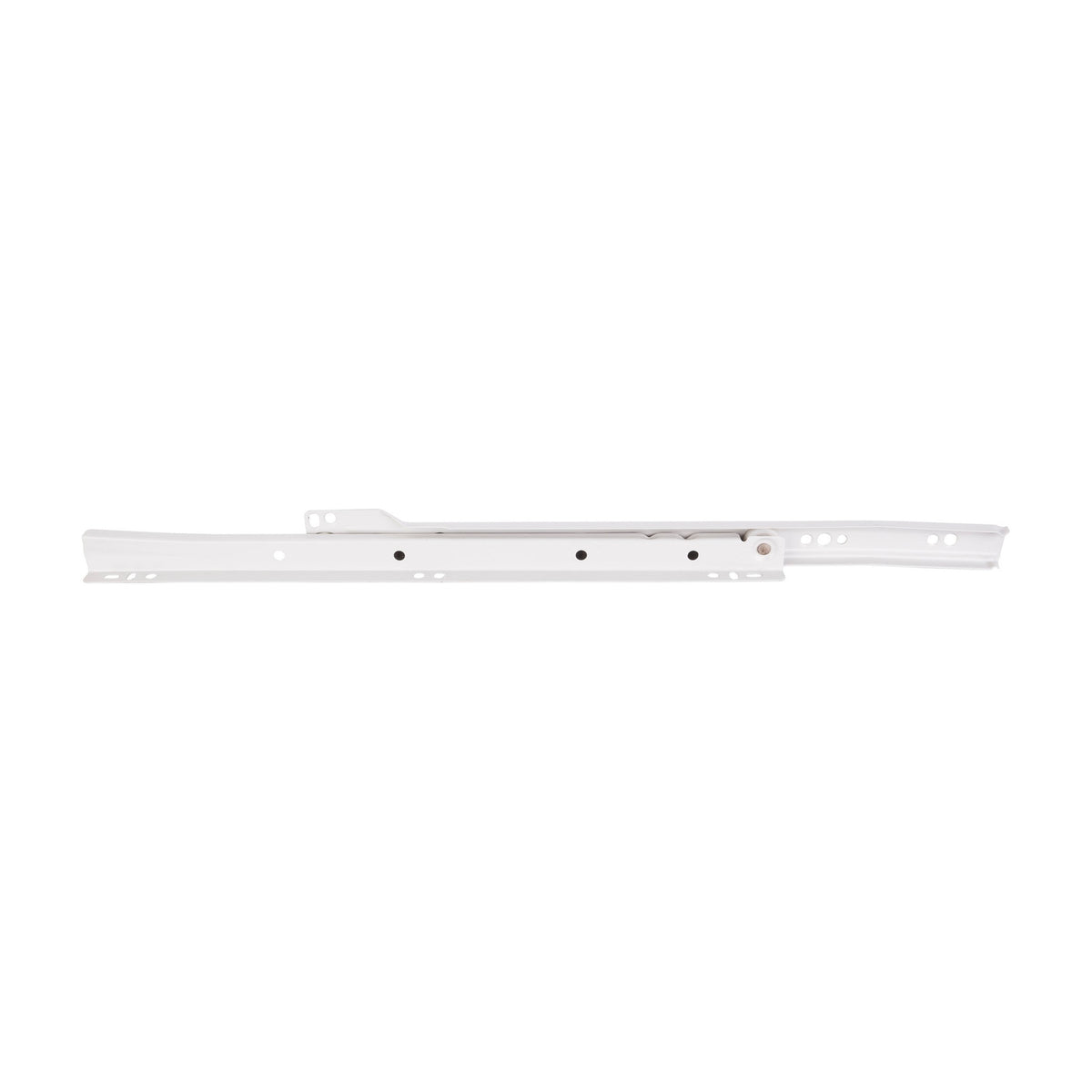

5000 Series Self-Closing Epoxy Drawer Slide
5000 Series Self-Closing Epoxy Drawer Slide
SKU: 5030-R
Request Pricing
This brand does not allow prices to be listed online. Check the options you want and we will email you the prices, plus next steps on how to order. Prefer to talk? Call 657-279-8130.
PRODUCT DESCRIPTION
Cream white epoxy coated steel bottom mount slide with self-closing action and screws included in retail packs, for smooth everyday drawers. A standard duty self-closing slide designed for use in either frameless or face frame applications. This item ships in full cartons only.
Key Features
- Positive lock-out on both members
- Disconnects via lift out
- 1/2" side spacing
- Side or bottom mounting style for frameless and face frame cabinetry
- POM synthetic plastic roller, cylindrically ground for smooth and quiet action
- Self-closing with positive stop prevents drawer bounce-back and roll out
- 1-7/16" side profile height
- 1.0 mm hot rolled steel material
Specifications
- Material: Steel
- Finish: White
- Height: 1-7/16"
- Load rating: 75 lb
- Extension: 3/4 Extension
- Slide type: Euro Slide
- Installation: Screw
- Certification: ANSI/BHMA
- SKUs: 12" (300 mm) / Cabinet Members Only, Box of 30: 5030-R (sold by pack); 14" (350 mm) / Builder Pack: 5035 (sold by pair); 14" (350 mm) / Retail Pack: 5035-R (sold by pack); 16" (400 mm) / Builder Pack: 5040 (sold by pair); 16" (400 mm) / Retail Pack: 5040-R (sold by pack); 18" (450 mm) / Builder Pack: 5045 (sold by pair); 18" (450 mm) / Retail Pack: 5045-R (sold by pack); 20" (500 mm) / Builder Pack: 5050 (sold by pair); 20" (500 mm) / Retail Pack: 5050-R (sold by pack); 22" (550 mm) / Builder Pack: 5055 (sold by pair); 22" (550 mm) / Retail Pack: 5055-R (sold by pack)
Visit our Anaheim showroom at 1630 N. State College Blvd. to see the line in person.
