700 Series Heavy Duty Soft-Close European Hinge
700 Series Heavy Duty Soft-Close European Hinge
SKU: 700.0N20.05
Request Pricing
This brand does not allow prices to be listed online. Check the options you want and we will email you the prices, plus next steps on how to order. Prefer to talk? Call 657-279-8130.
PRODUCT DESCRIPTION
Nickel plated cold rolled steel heavy duty European hinge with a built in soft-close mechanism that slows the door and pulls it quietly shut. Soft-close heavy duty hinge designed for 45 degree inside corner and overlay applications
Key Features
- Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
- Lever-top available: Provides toolless installation and removal
- Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play
- Compatible with 600 Series Plates
- Heavy duty spring and patented linkage system
- Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles
- All metal concealed damper provides a life time of worry-free use
- 2-stop action
Specifications
- Material: Steel
- Finish: Polished Nickel
- Center to center: 45 mm
- Cup diameter: 35 mm
- Cup bore depth: 11.2 mm
- Adjustment: 6-Way Adjustment
- Application: Face frame and frameless
- Sold by: Each

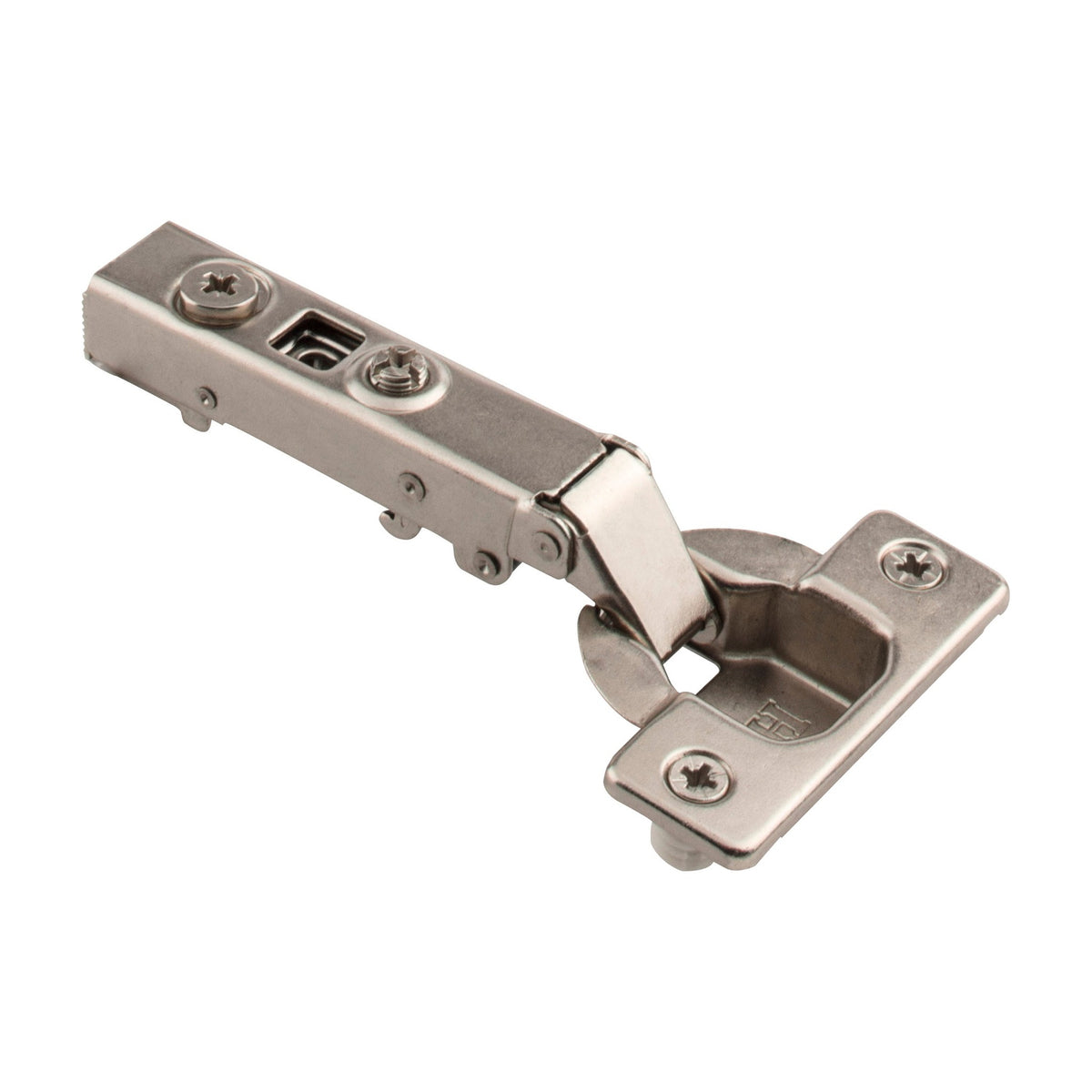

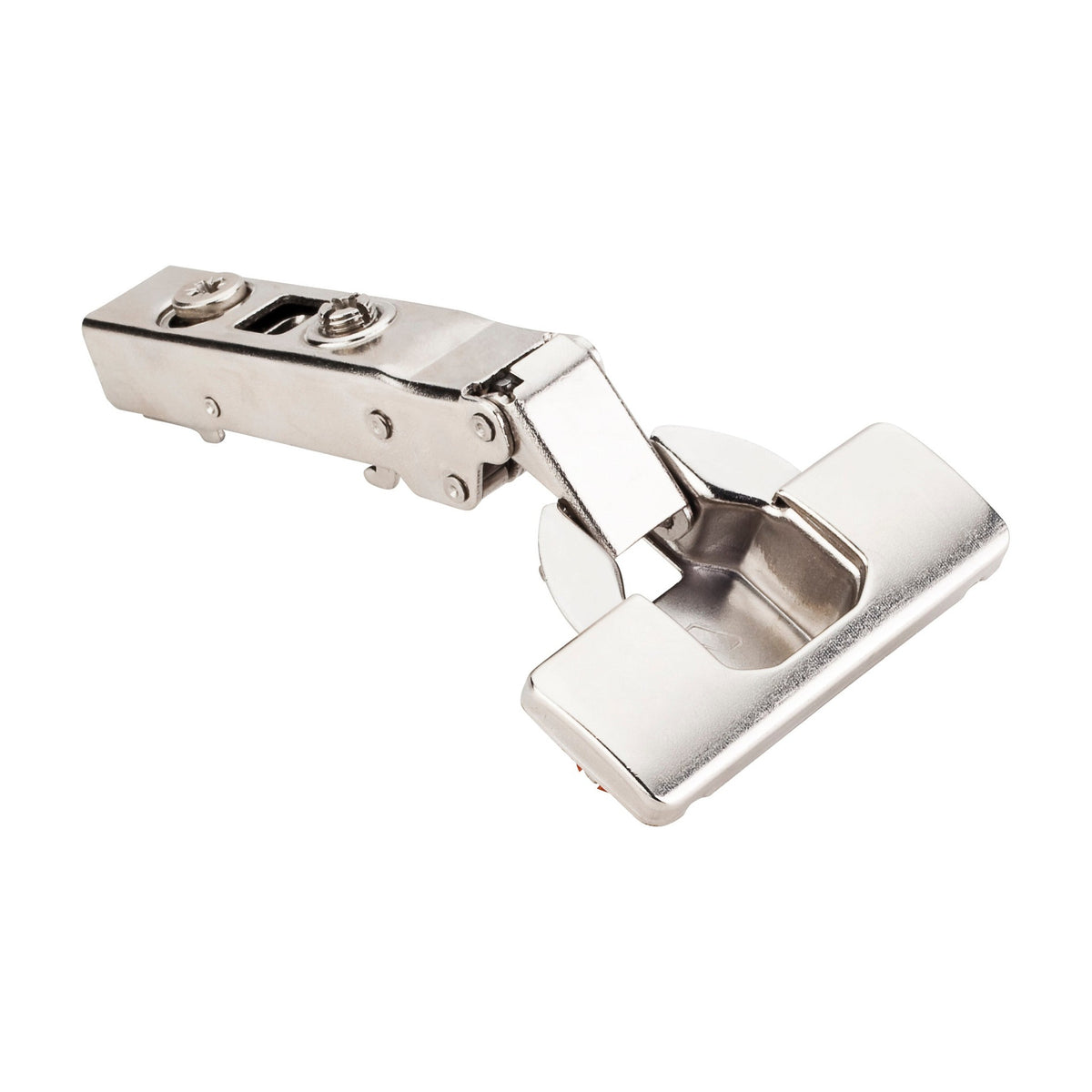

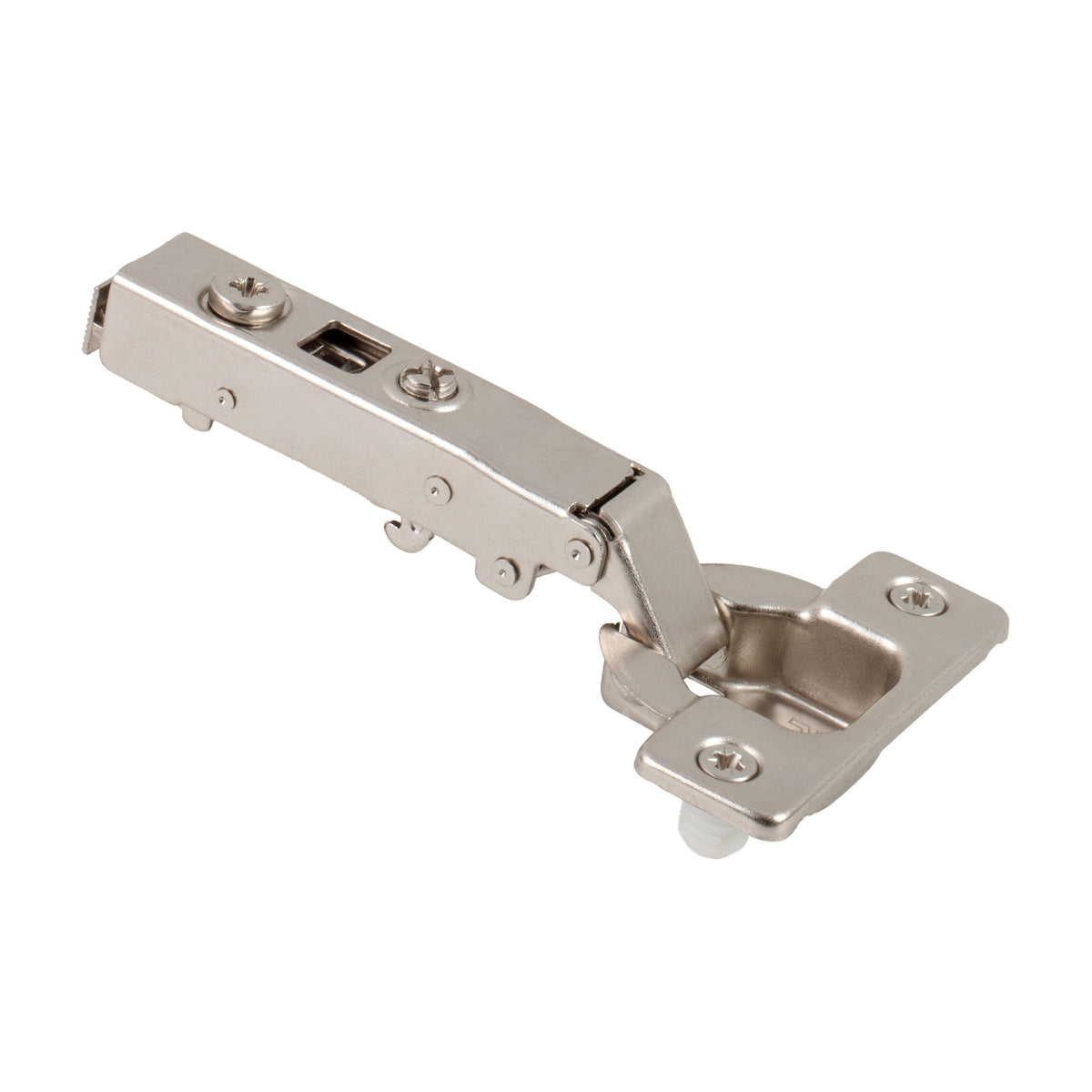

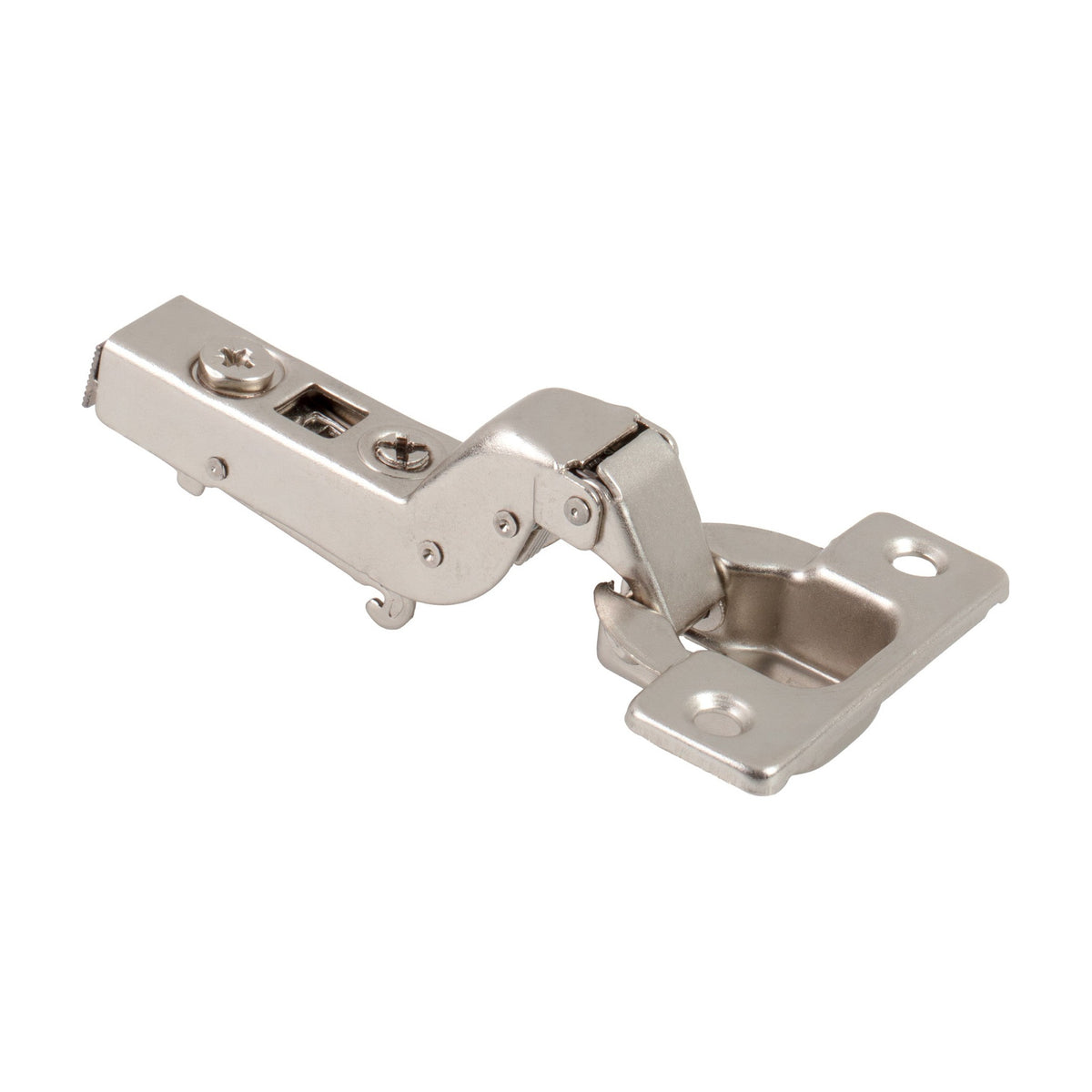

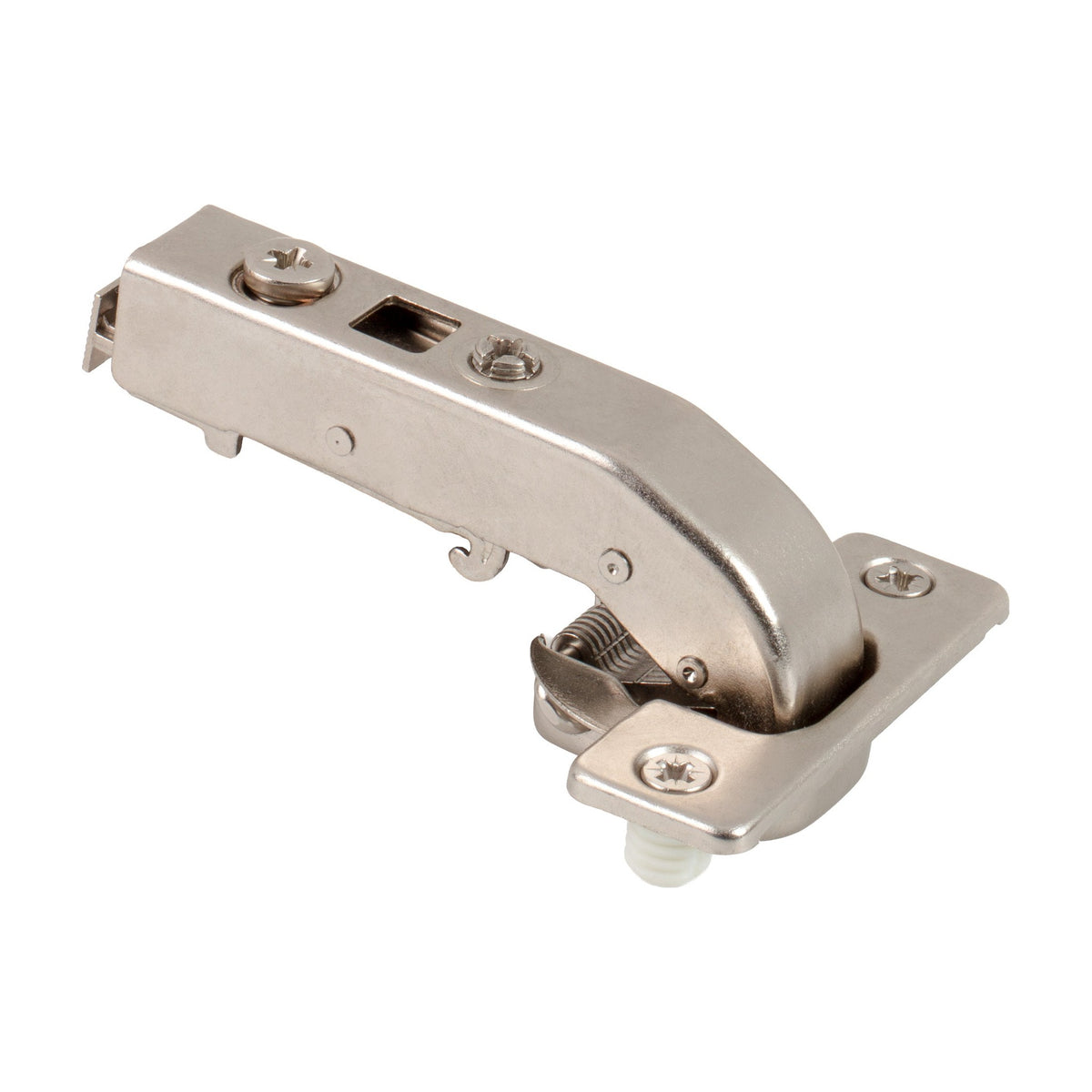

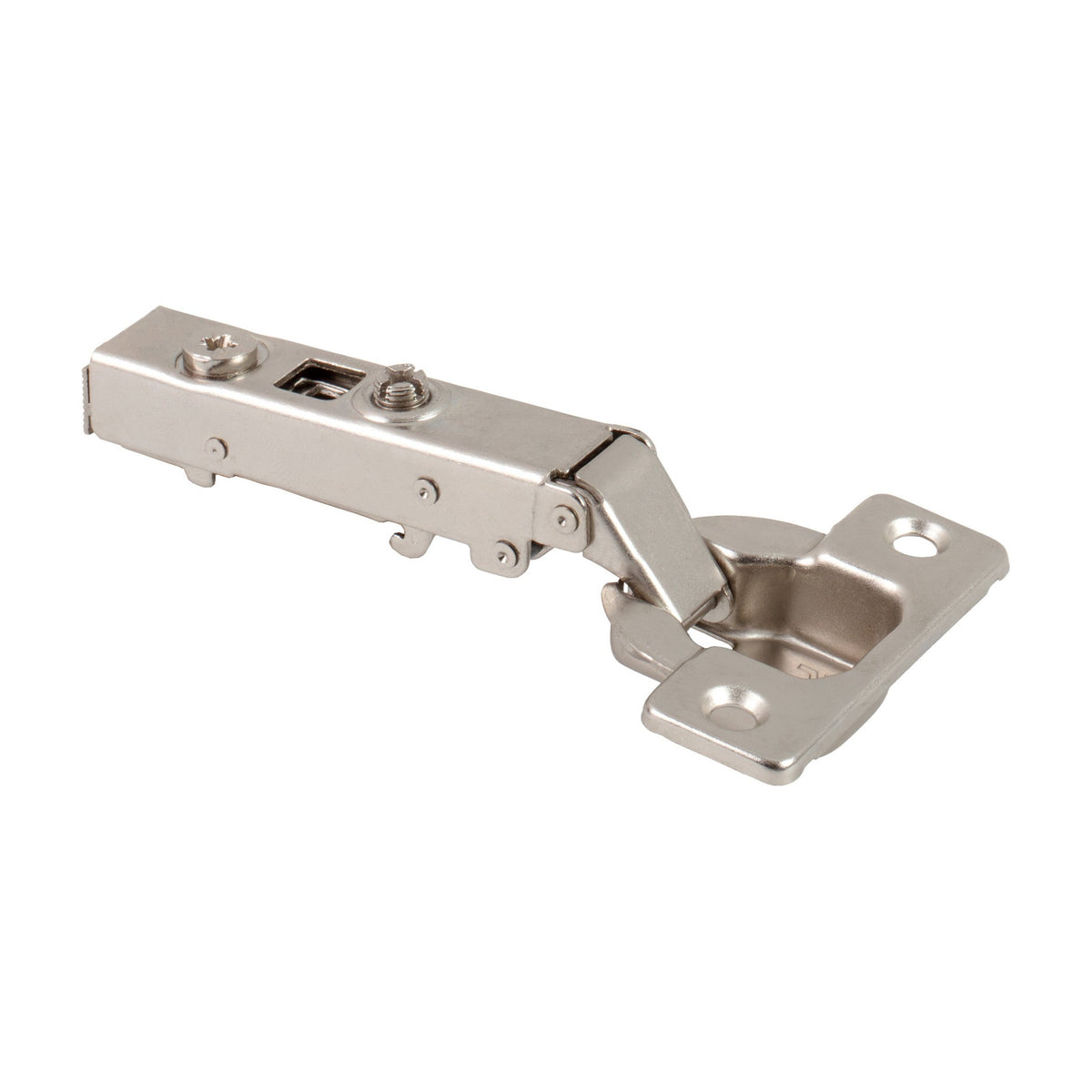

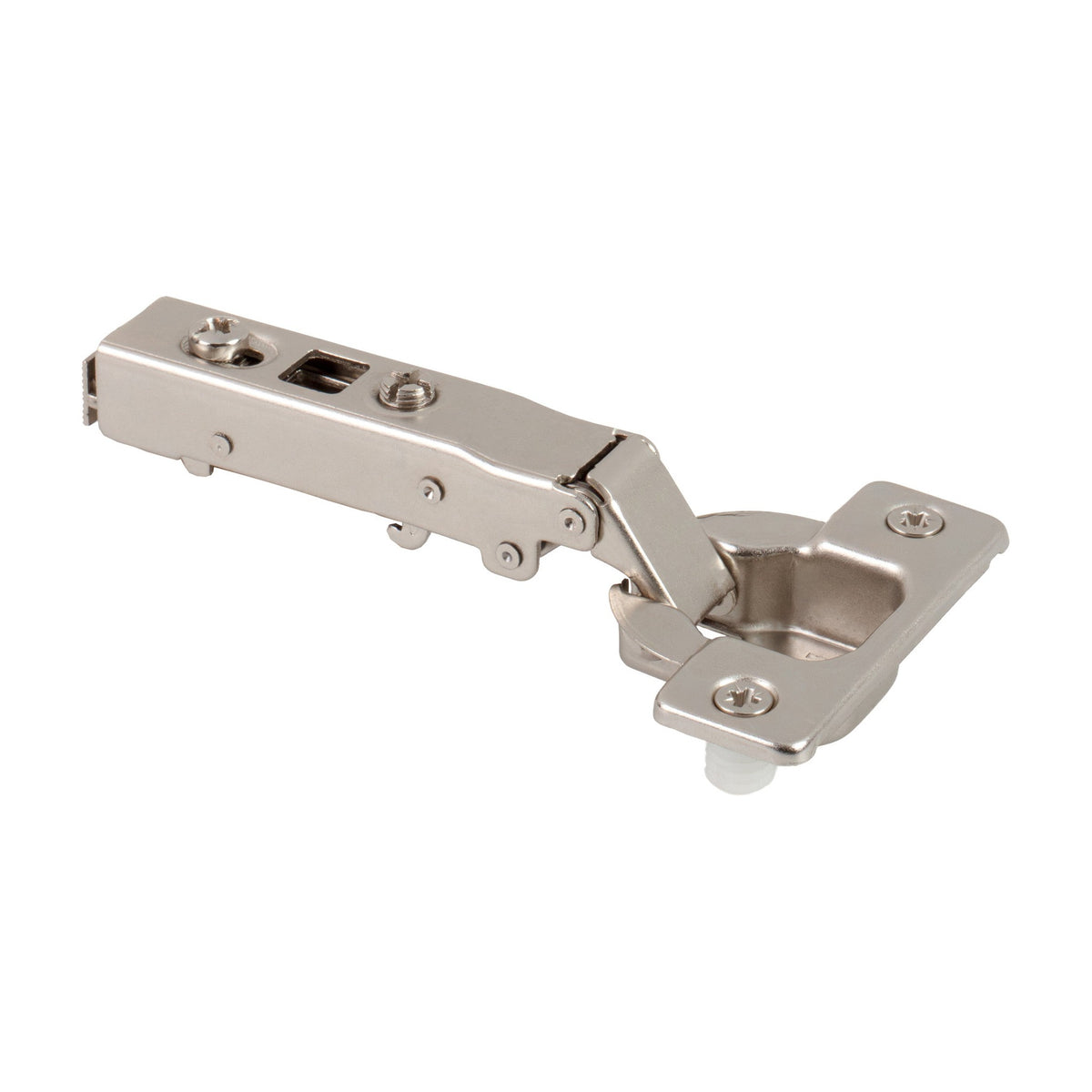

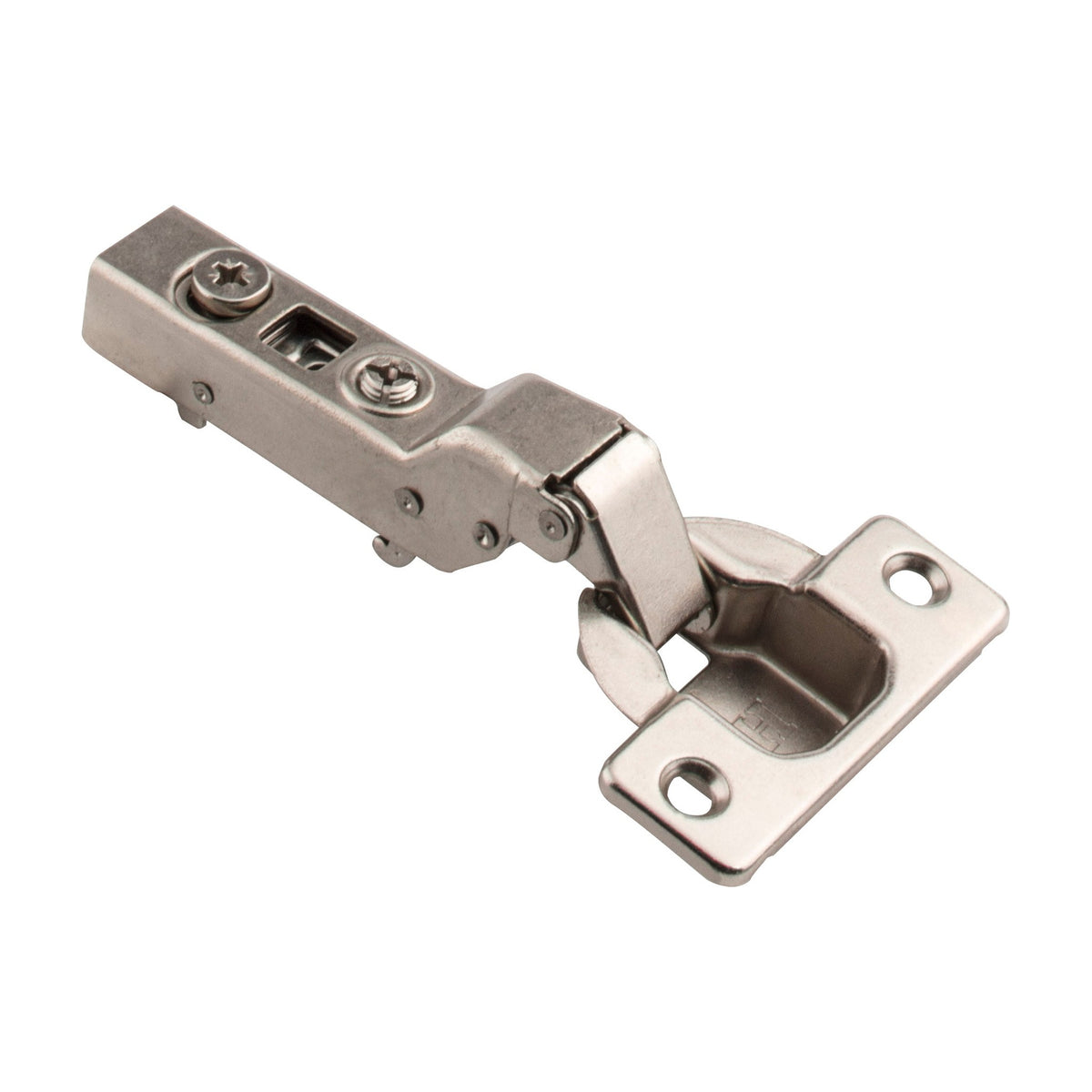

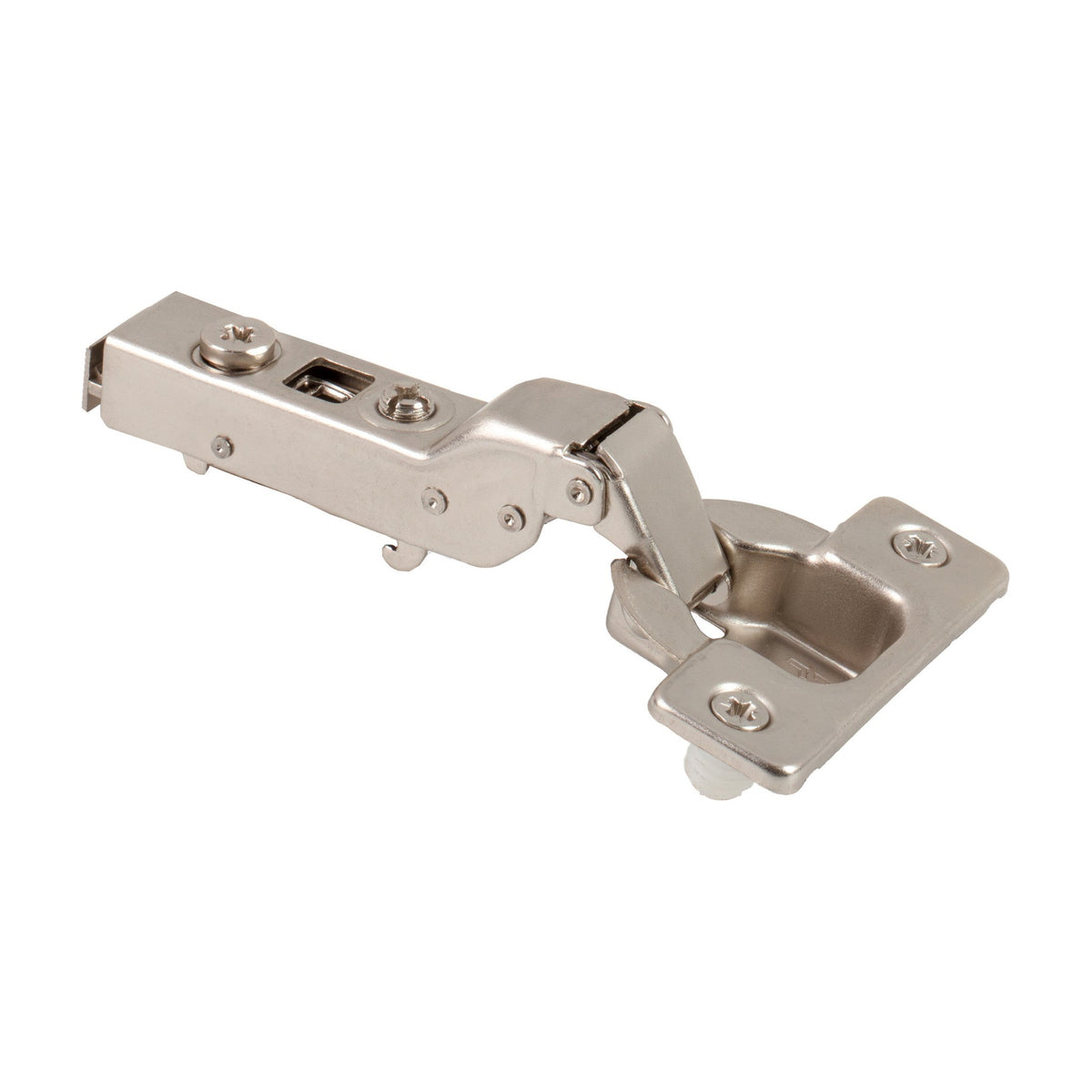

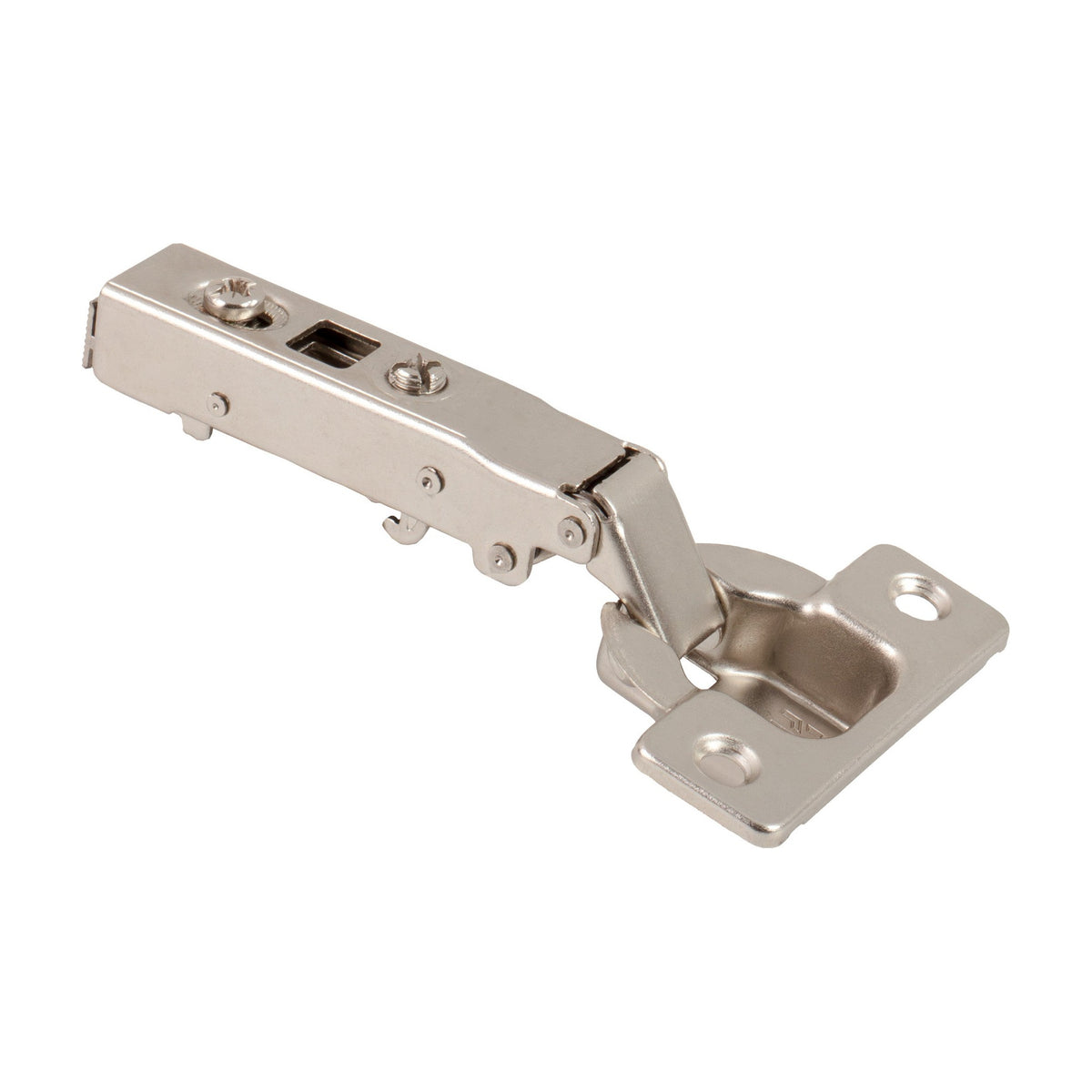

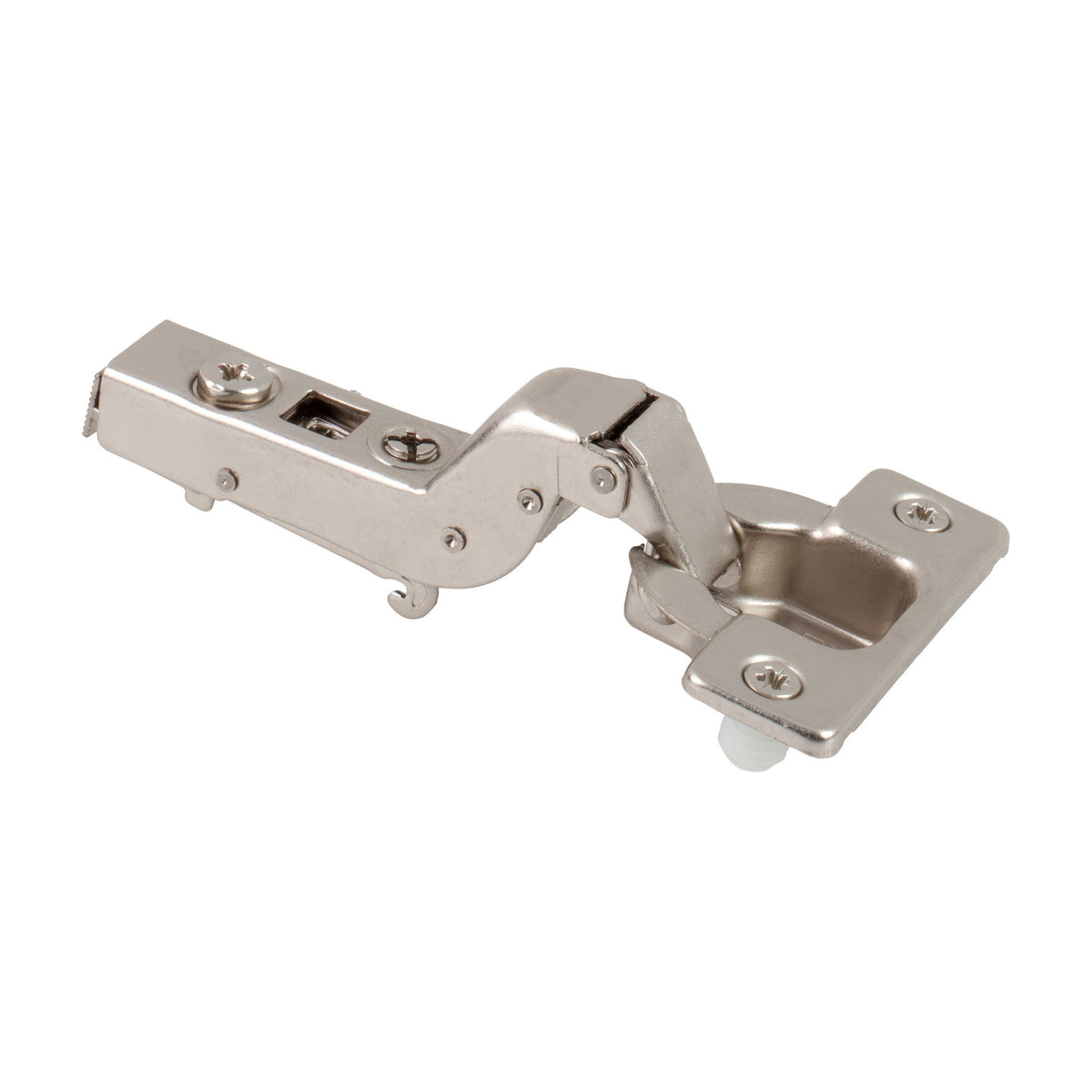

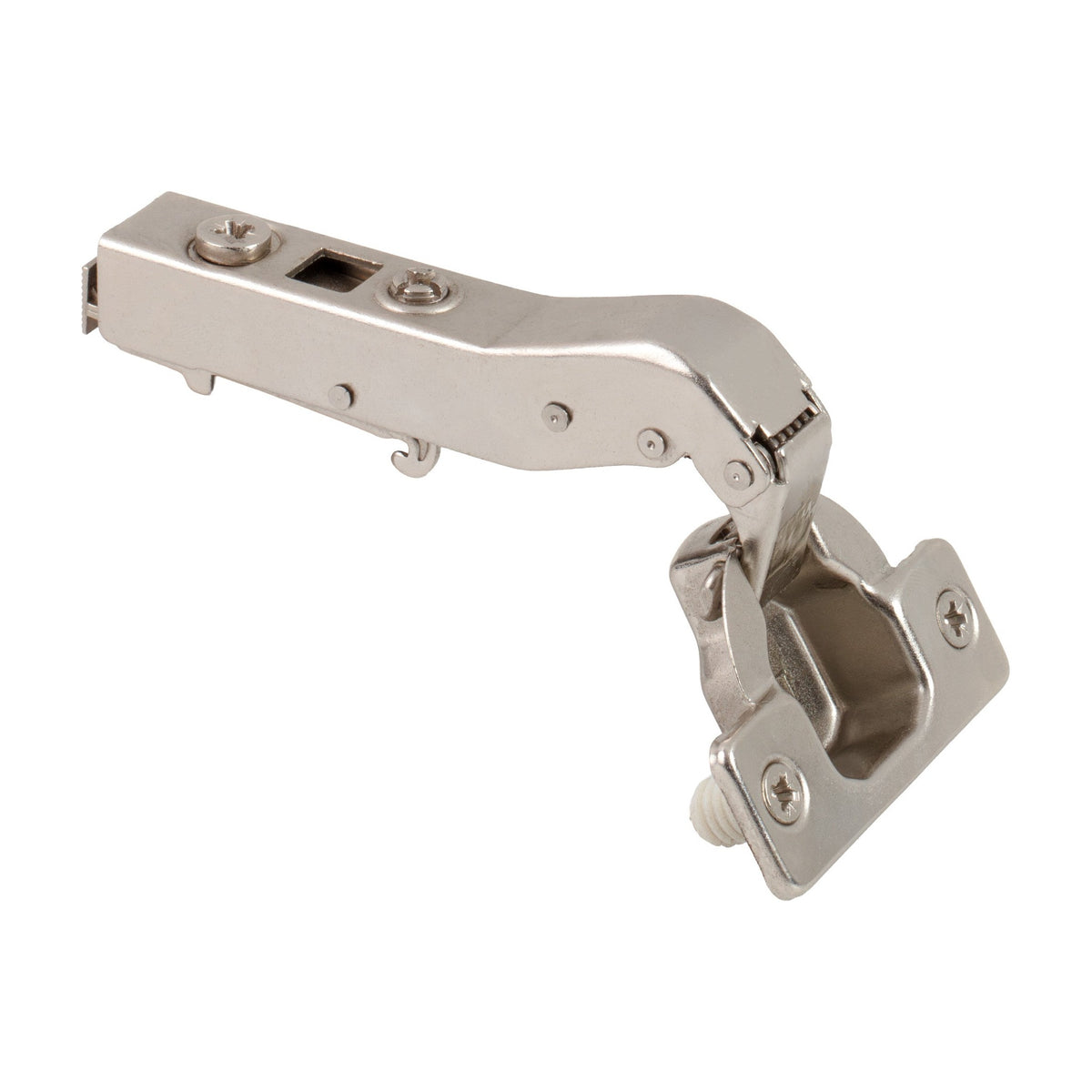

- SKUs: 45 Degree / 18 mm Crank (Inside Corner) / Cam Adjustable, Press-in 8 mm Dowels: 700.0N20.05; 90 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 700.0161.25; 90 Degree Blind Corner / 0 mm Crank / Cam Adjustable, Press-in 8 mm Dowels: 700.0N24.05; 110 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, No Dowels: 700.0535.25; 110 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 700.0181.25; 110 Degree / 0 mm Crank (Full Overlay) / Screw Adjustable, No Dowels: 700.0534.25; 110 Degree / 0 mm Crank (Full Overlay) / Screw Adjustable, Press-in 8 mm Dowels: 700.0171.25; 110 Degree / 9 mm Crank (Half Overlay) / Cam Adjustable, No Dowels: 700.0536.25; 110 Degree / 9 mm Crank (Half Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 700.0179.25; 110 Degree / 15 mm Crank (Inset) / Cam Adjustable, No Dowels: 700.0537.25; 110 Degree / 15 mm Crank (Inset) / Cam Adjustable, Press-in 8 mm Dowels: 700.0280.25; 125 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Easy-Fix Dowels with Cover: 700.0U86.05; 125 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Lever-Top Dowels: 700.0U94.05; 125 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, No Dowels: 700.0U85.05; 125 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 700.0U84.05; 165 Degree / 0 mm Crank (Full Overlay) / Cam Adjustable, Press-in 8 mm Dowels: 700.0M73.05
