Non-Mortise Institutional 5-Knuckle Cabinet Hinge
Non-Mortise Institutional 5-Knuckle Cabinet Hinge
SKU: HR0076AL
Products from this brand are restricted from listing prices online. Please call our office at 657-279-8130 to request pricing.
PRODUCT DESCRIPTION
Heavy duty 5-knuckle institutional hinge in steel or stainless steel, a non-mortise design built for commercial casework.
Key Features
- Slotted screw holes for vertical and horizontal adjustment
- Hospital tips, 2-3/4" overall height
- 32 mm system hole pattern with 37 mm setback
- Countersunk screw holes for recommended #8 flat head or Euro screws
- Stainless steel #8 x 3/4" flathead screw available (8X347-2)
- Conforms to ANSI/BHMA Grade 1 Requirements
- Drilled knuckle inner diameter
Specifications
- Material: Steel
- Installation: Screw
- Recommended screws: Stainless steel #8 x 3/4" flathead screw
- Certification: ANSI/BHMA Grade 1
- Sold by: Each

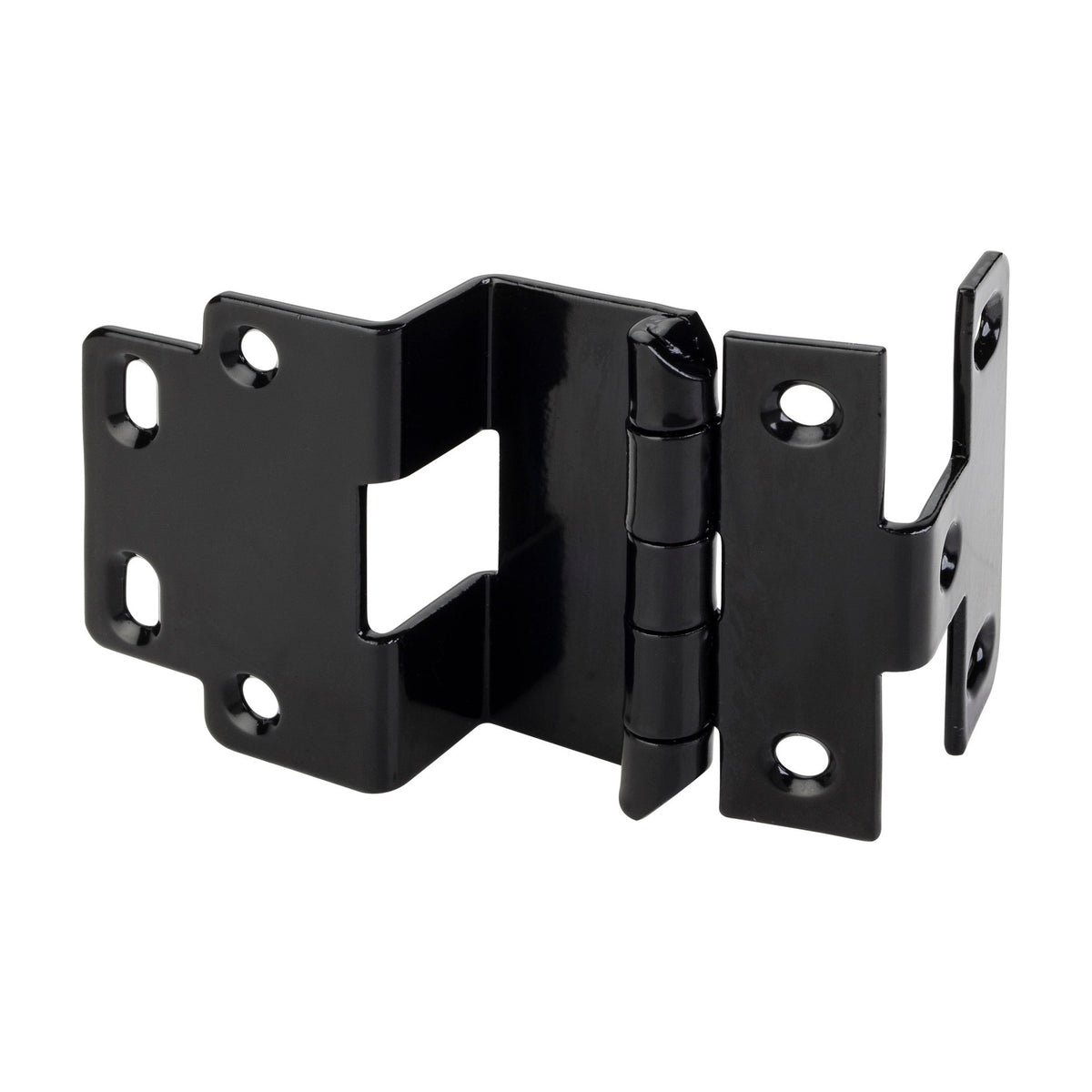

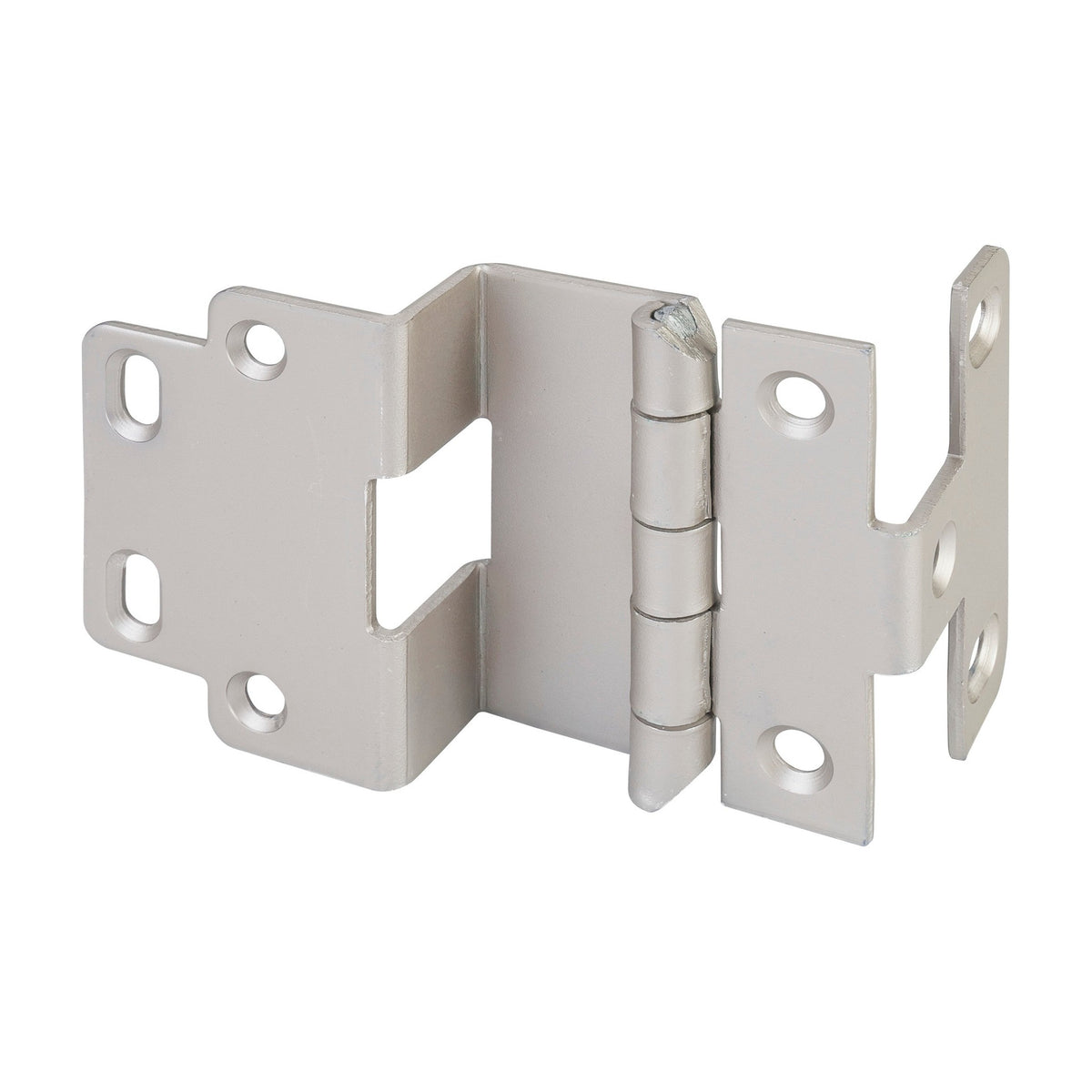

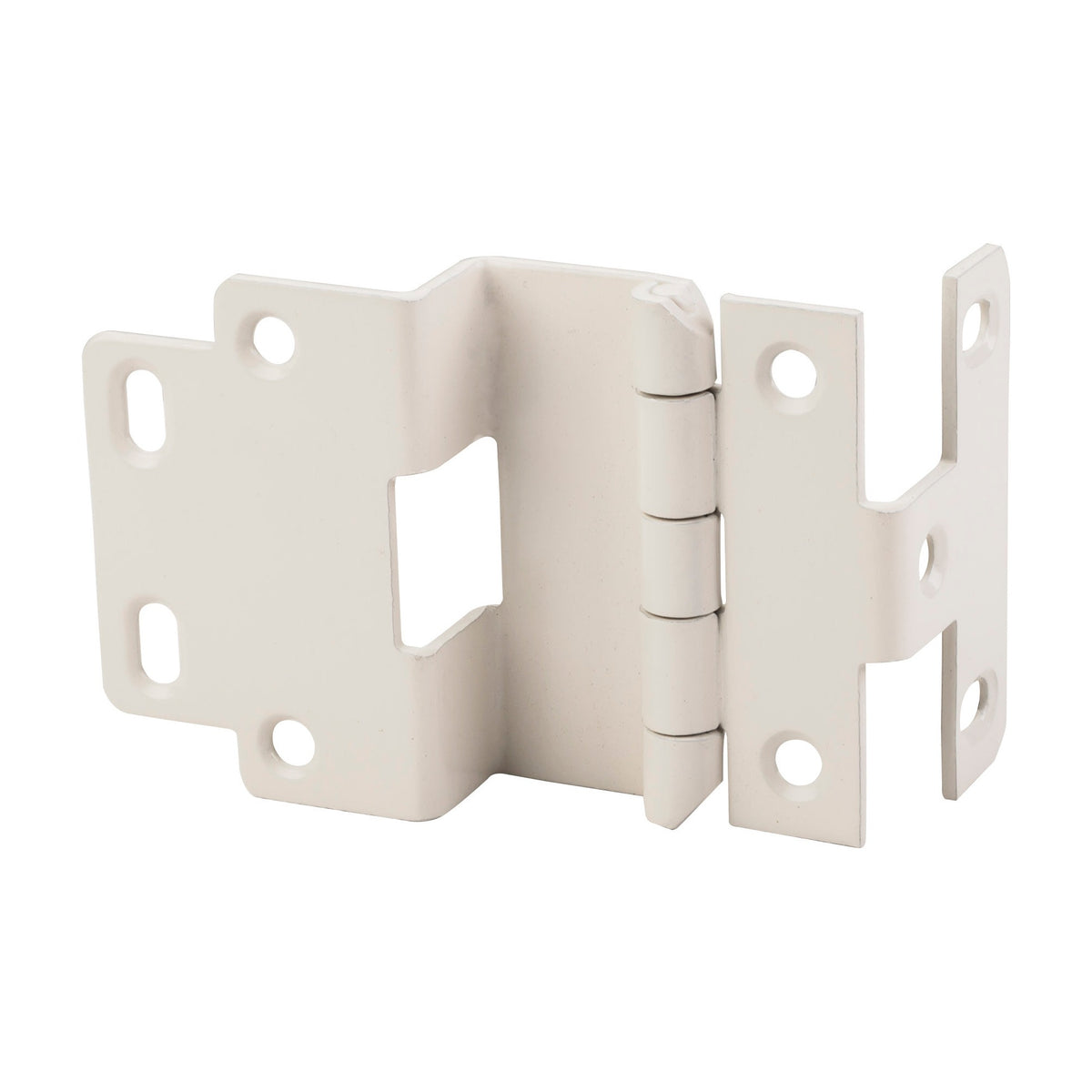

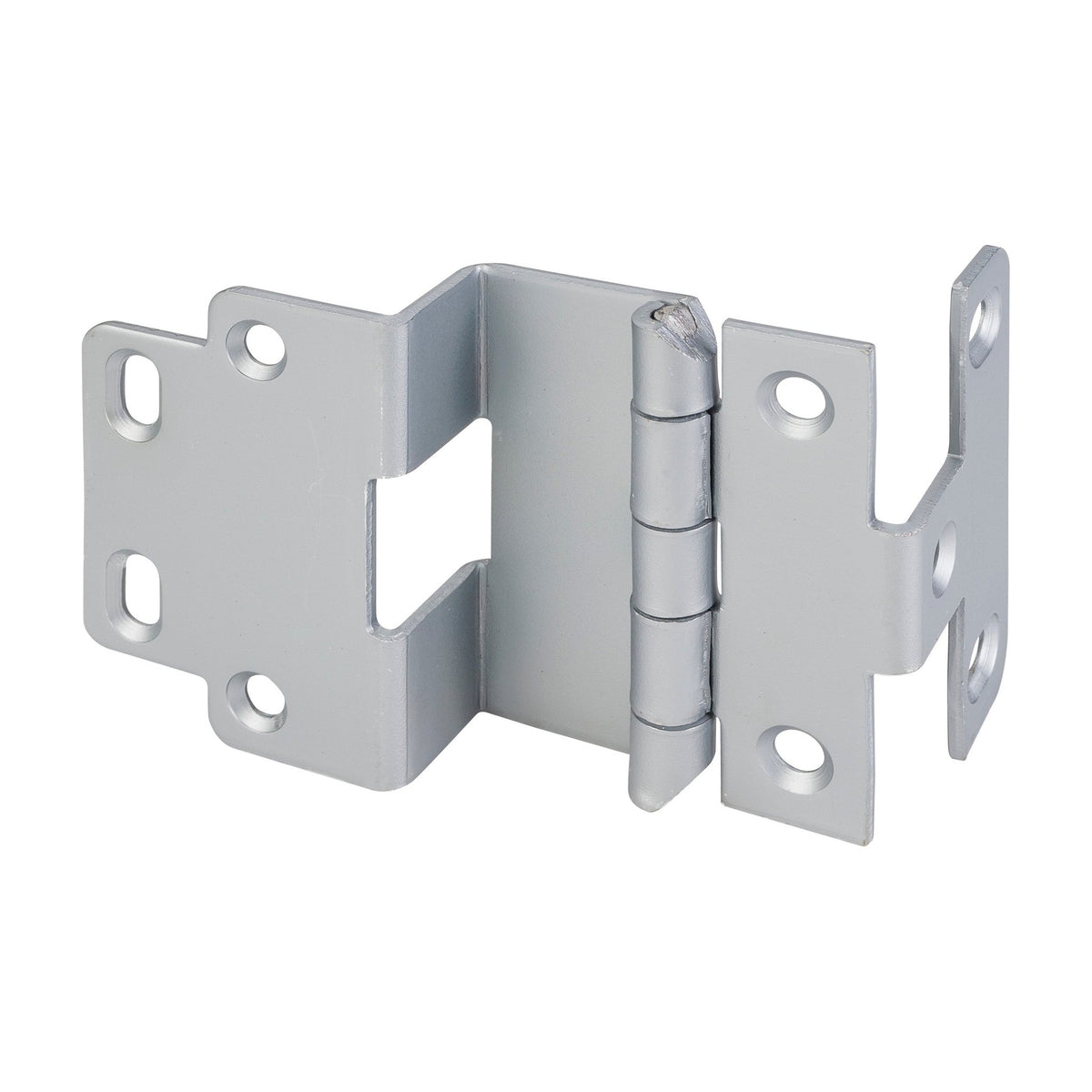

- SKUs: Almond: HR0076AL; Black: HR0076BLK; Dull Nickel: HR0076; Stainless Steel: HR0076SS
Hardware Resources products are sold by quote. Call our Anaheim showroom at 657-279-8130 for pricing, availability and lead times, or visit us at 1630 N. State College Blvd. to see the line in person.
