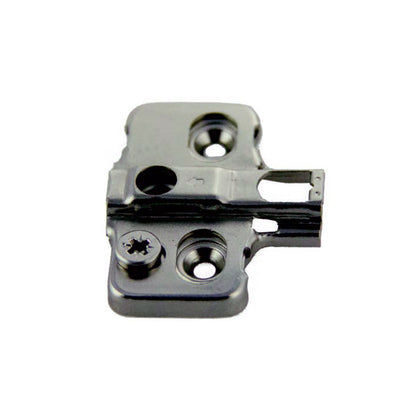

SDX Series Hinge Mounting Plate

SDX Series Hinge Mounting Plate

No reviews yetRead store reviews

SKU: CLK.0

Regular price
Price: $0.50
Regular price
List Price:
Sale price
Price: $0.50

Click-on, slide-on, cam adjustable and face frame mounting plates for SDX Series hinges, in heights that set the door overlay.

Plate

$35 flat rate parcel shipping per order | Free pickup in Anaheim, CA

View Cart
Key Features
  • Box plates and face frame plates
  • Cam adjustable and stamped steel versions
  • System screw and dowel versions
Specifications
  • Material: Steel
  • Plate heights: 0 mm to 6 mm
  • Fits: SDX Series hinges
  • Sold by: Each
  • SKUs: Click-On Steel Box Plate, 0 mm: CLK.0; Click-On Steel Box Plate with System Screws, 0 mm: CLK.0S; Click-On Steel Box Plate with 12 mm System Screws, 0 mm: CLK.0S-12; Box Plate with Adjustment Screw and System Screws, 0 mm: CLK.0SC; Click-On Steel Box Plate, 2 mm: CLK.2; Click-On Steel Box Plate with System Screws, 2 mm: CLK.2S; Click-On Steel Box Plate with System Screws, 4 mm: CLK.4S; Slide-On Box Plate, 0 mm: SLO.0; Slide-On Box Plate, 2 mm: SLO.2; Cam Adjustable Steel Box Plate, 0 mm: T00TQ; Cam Adjustable Steel Box Plate with System Screws, 0 mm: T02TQ; Cam Adjustable Steel Box Plate with Screws and 5 mm Plastic Dowels, 0 mm: T0CTQ; Cam Adjustable Steel Box Plate, 2 mm: T20TQ; Cam Adjustable Steel Box Plate with System Screws, 2 mm: T22TQ; Cam Adjustable Steel Box Plate, Larger Hole, 2 mm: T2BTQ; Cam Adjustable Steel Box Plate, 4 mm: T40TQ; Cam Adjustable Steel Box Plate with System Screws, 4 mm: T42TQ; Click-On Face Frame Plate, 0 mm (5/8" Overlay): FCL.0; Click-On Face Frame Plate, 3 mm (1/2" Overlay): FCL.3; Click-On Face Frame Plate, 6 mm (3/8" Overlay): FCL.6; Stamped Steel Face Frame Plate, 0 mm (5/8" Overlay): FCL.S.0; Stamped Steel Face Frame Plate, 3 mm (1/2" Overlay): FCL.S.3; Stamped Steel Face Frame Plate with Tab, 3 mm (1/2" Overlay): FCL.S.3T; Stamped Steel Face Frame Plate, 6 mm (3/8" Overlay): FCL.S.6; Cam Click-On Face Frame Plate, 0 mm (5/8" Overlay): FCLCAM.0; Cam Click-On Face Frame Plate, 3 mm (1/2" Overlay): FCLCAM.3

Shipping: How Delivery Works

Ships by UPS or USPS for $35 flat per order. Prefer to skip shipping? Free pickup at our Anaheim, CA showroom. Choose Pickup at checkout.

In stock items leave our warehouse in 3 to 5 business days. The exact rate for your cart is always shown at checkout before you pay. We are not able to ship to Hawaii or Alaska.

Returns

Returns need prior approval, so please contact us first. Restocking fees apply, and we can't accept returns after 30 days. Clearance items are sold as is. See the full return policy.

Questions

Not sure it fits? Call 657-279-8130, email sales@kbfhomeimprovement.com, or visit our Anaheim showroom at 1630 N. State College Blvd, Monday to Saturday, 9 AM to 5 PM. We usually reply within 1 to 2 business days.
