Unidoor-X Frameless Hinged Shower Door (29"W to 36"W)

Unidoor-X Frameless Hinged Shower Door in Clear Glass for 29 to 36 Inch Openings

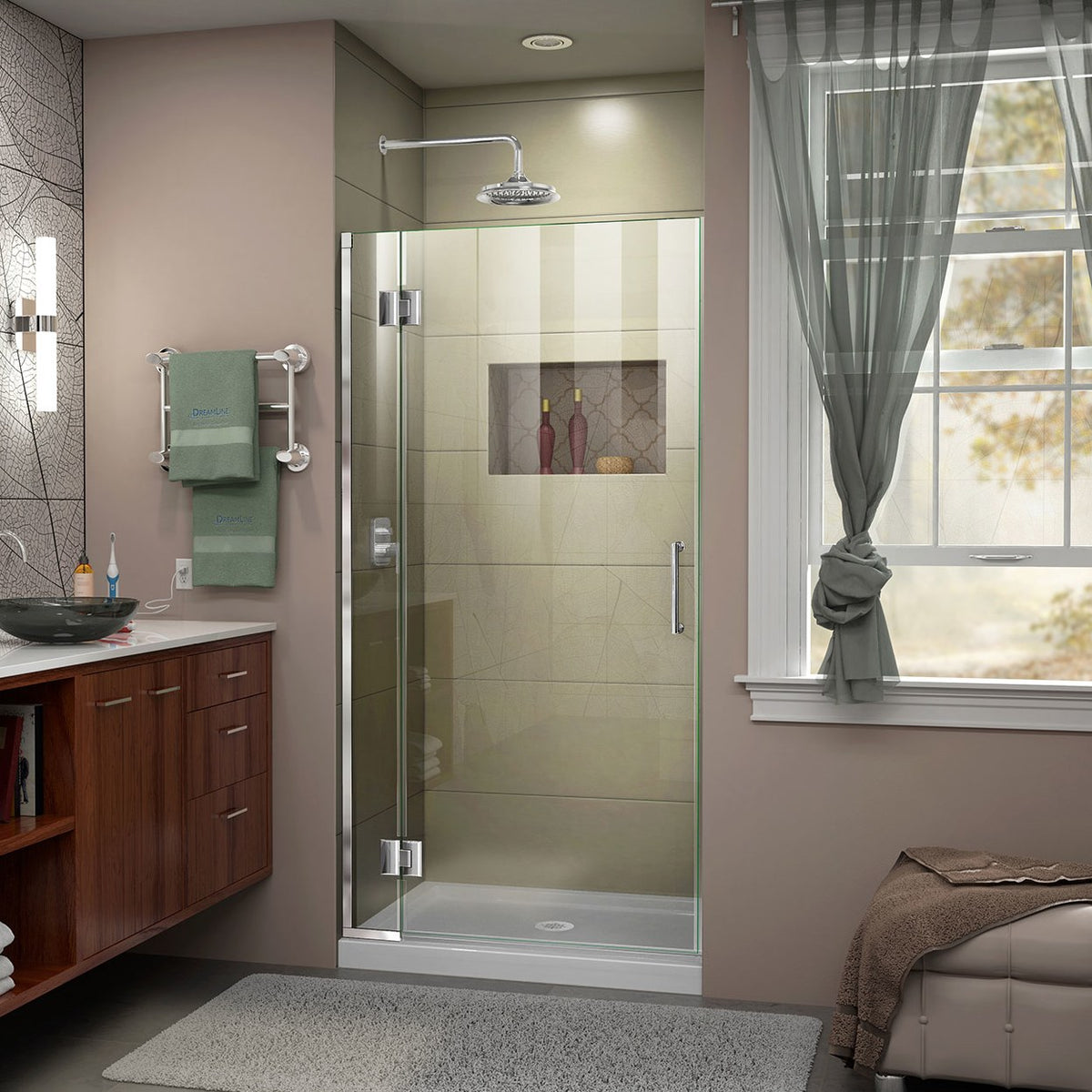

Open up your bathroom with the Unidoor-X frameless hinged shower door. This system pairs a 6 inch hinged glass panel with an attached frameless door, so the glass reads as one clean, light filled wall. Thick 3/8 inch clear tempered glass, solid brass glass to glass hinges and slim wall channels keep the look minimal while the door swings smoothly every day.

Key Features & Benefits

• Frameless Glass Design: Clean lines and an open, airy feel that lets your tile take center stage
• Premium Tempered Glass: 3/8 inch (10 mm) thick certified clear tempered glass

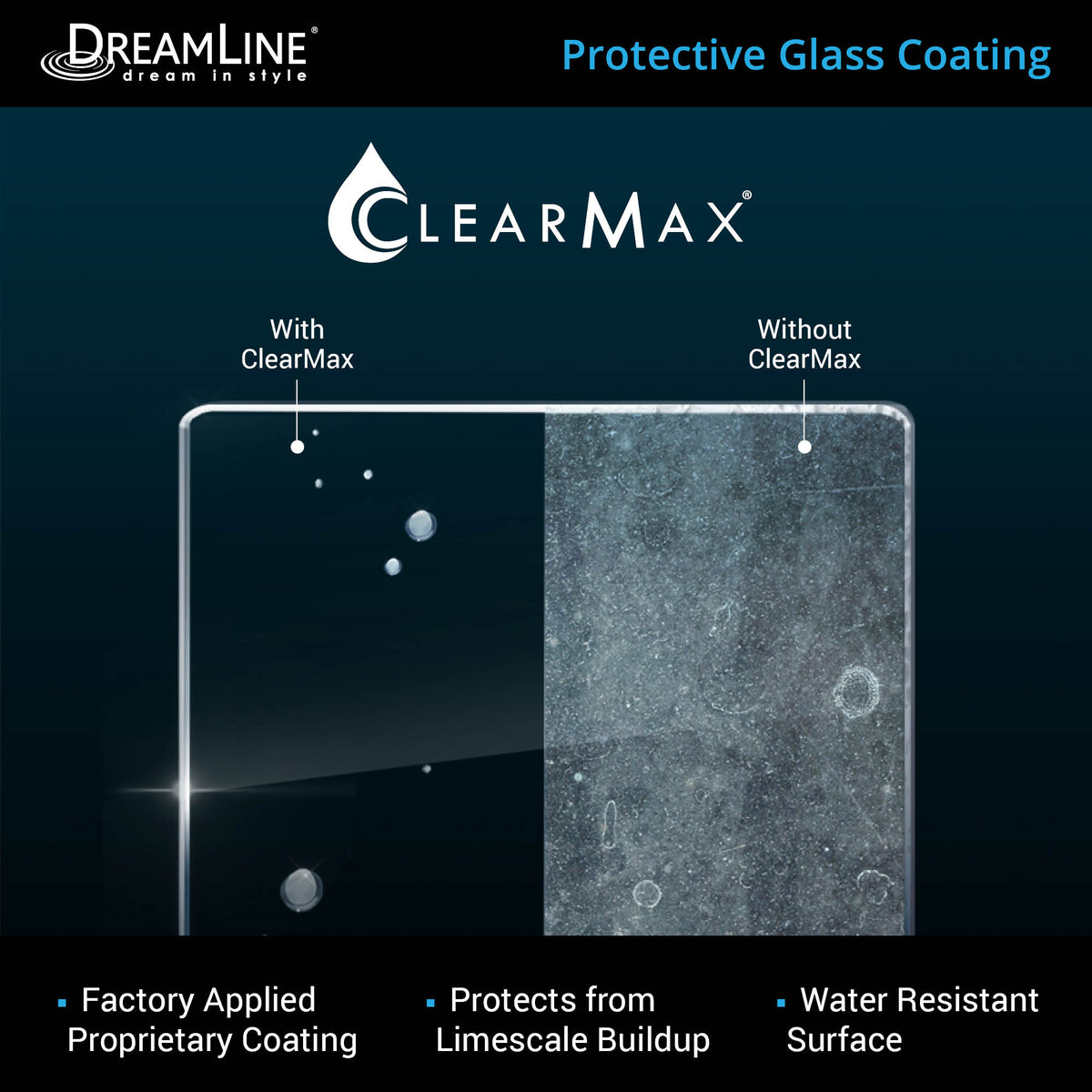

• ClearMax Coating: Water and stain resistant glass coating that makes cleaning easier

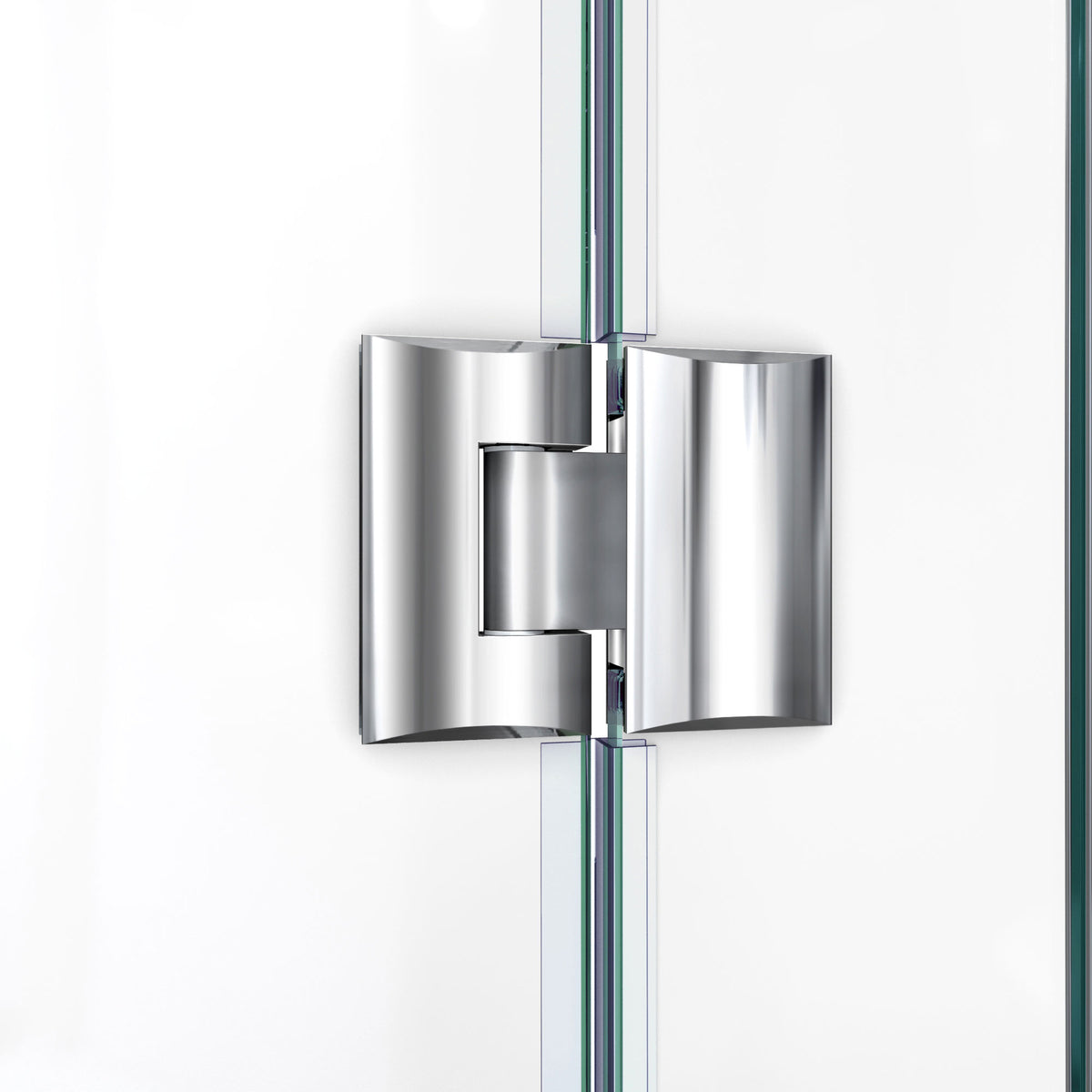

• Glass to Glass Hinges: Solid brass self closing hinges connect the door to the hinged panel

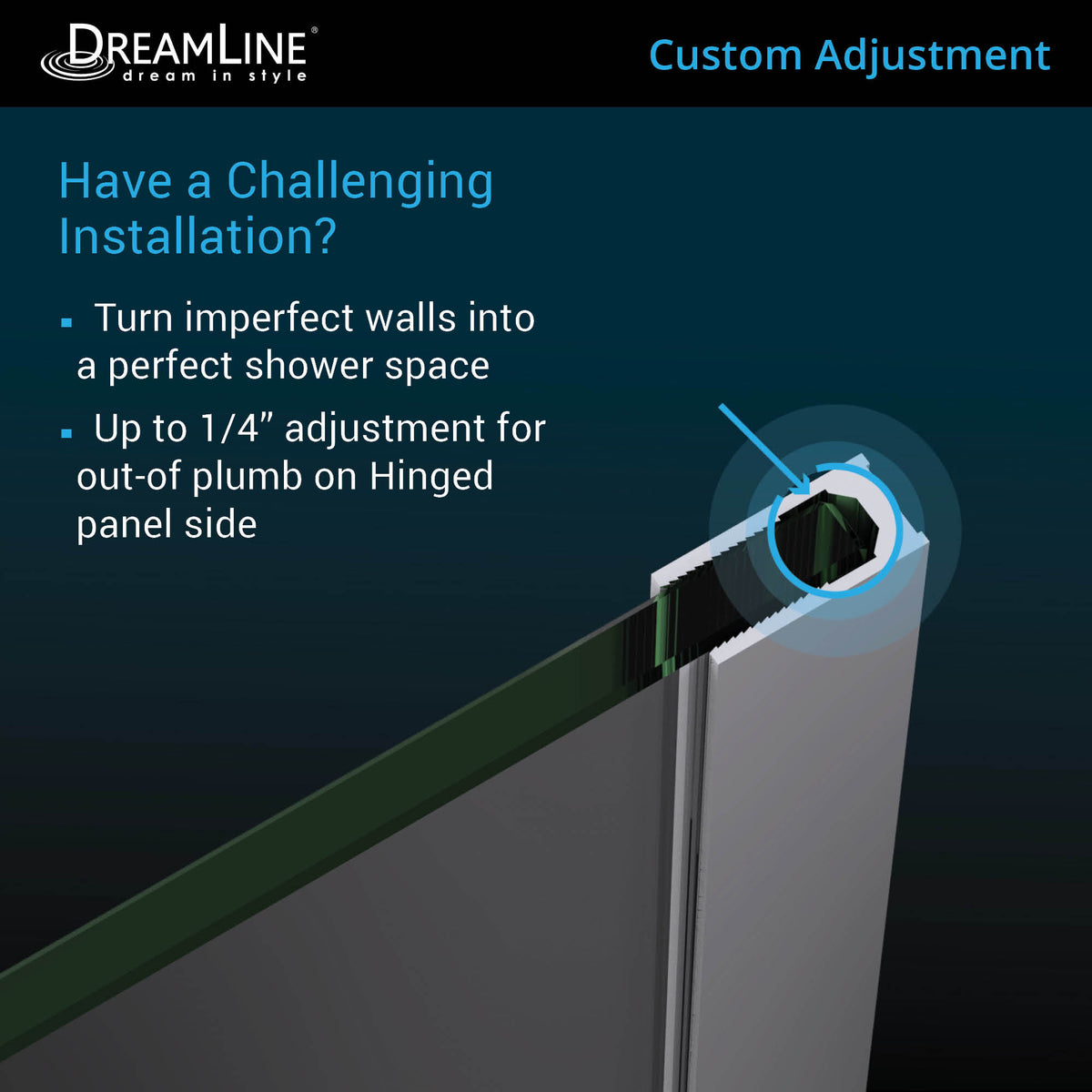

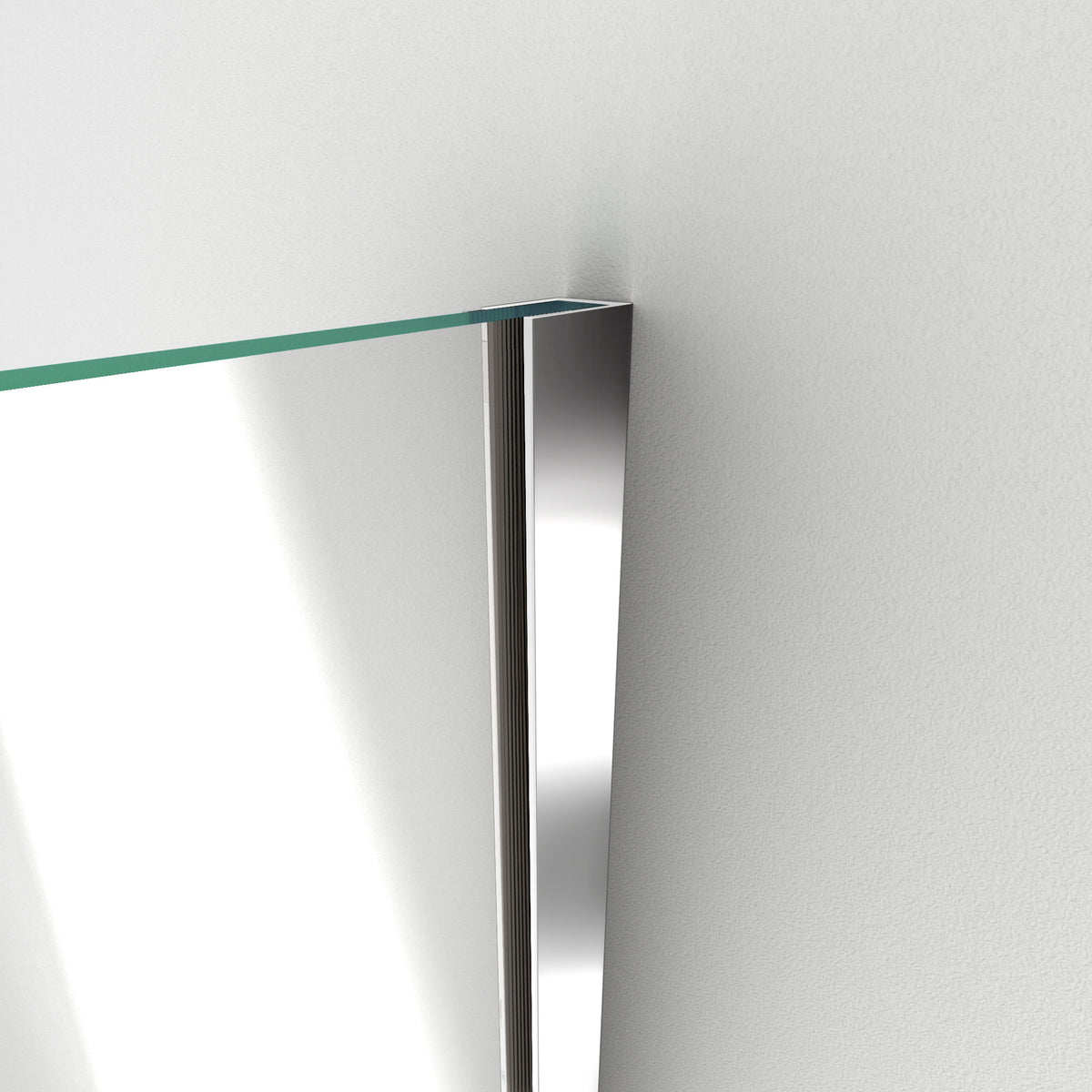

• Custom Adjustment: 1 inch anodized aluminum U channel with up to 1/4 inch out of plumb adjustment on the hinged panel side

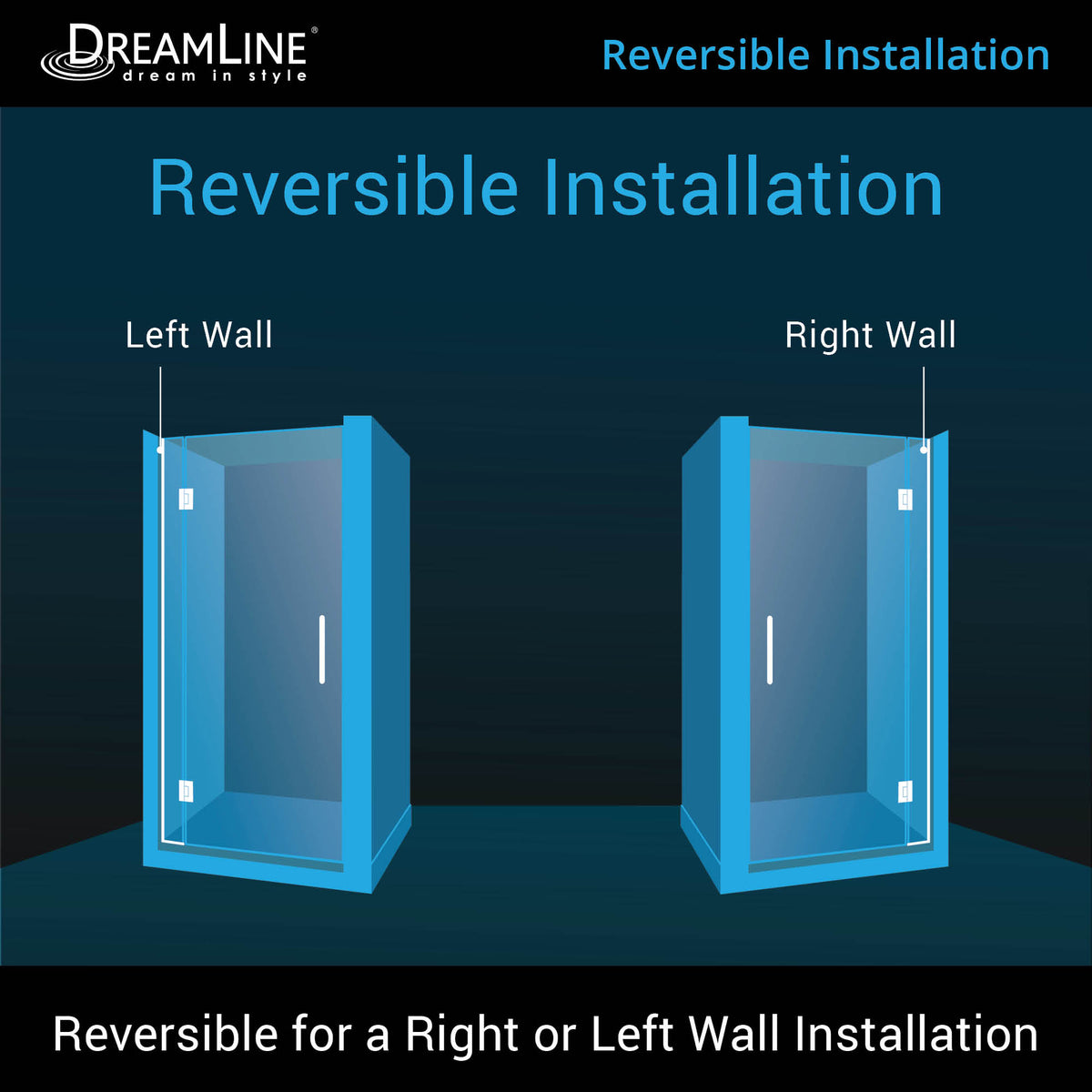

• Reversible Installation: Installs for a left or right door opening to fit your layout

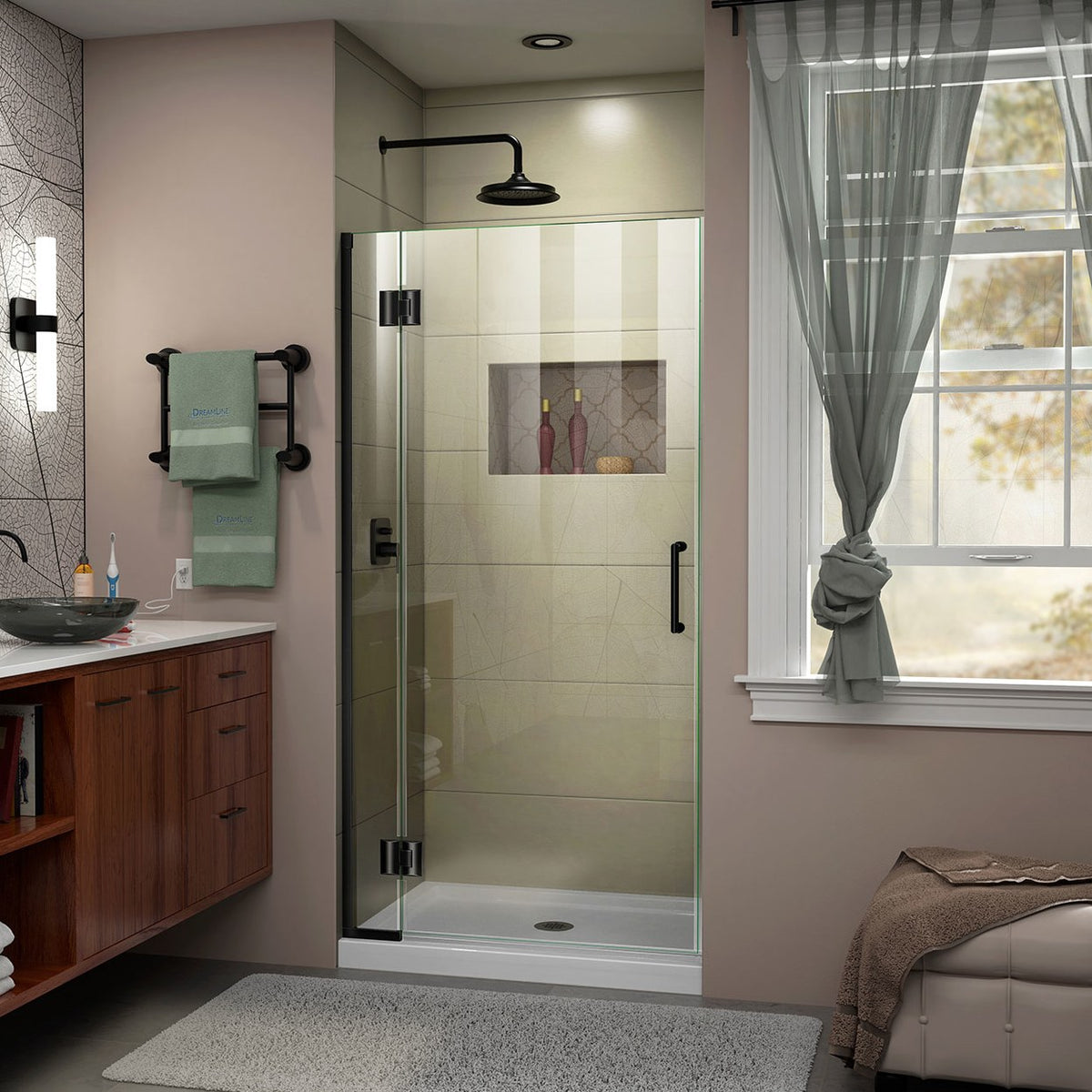

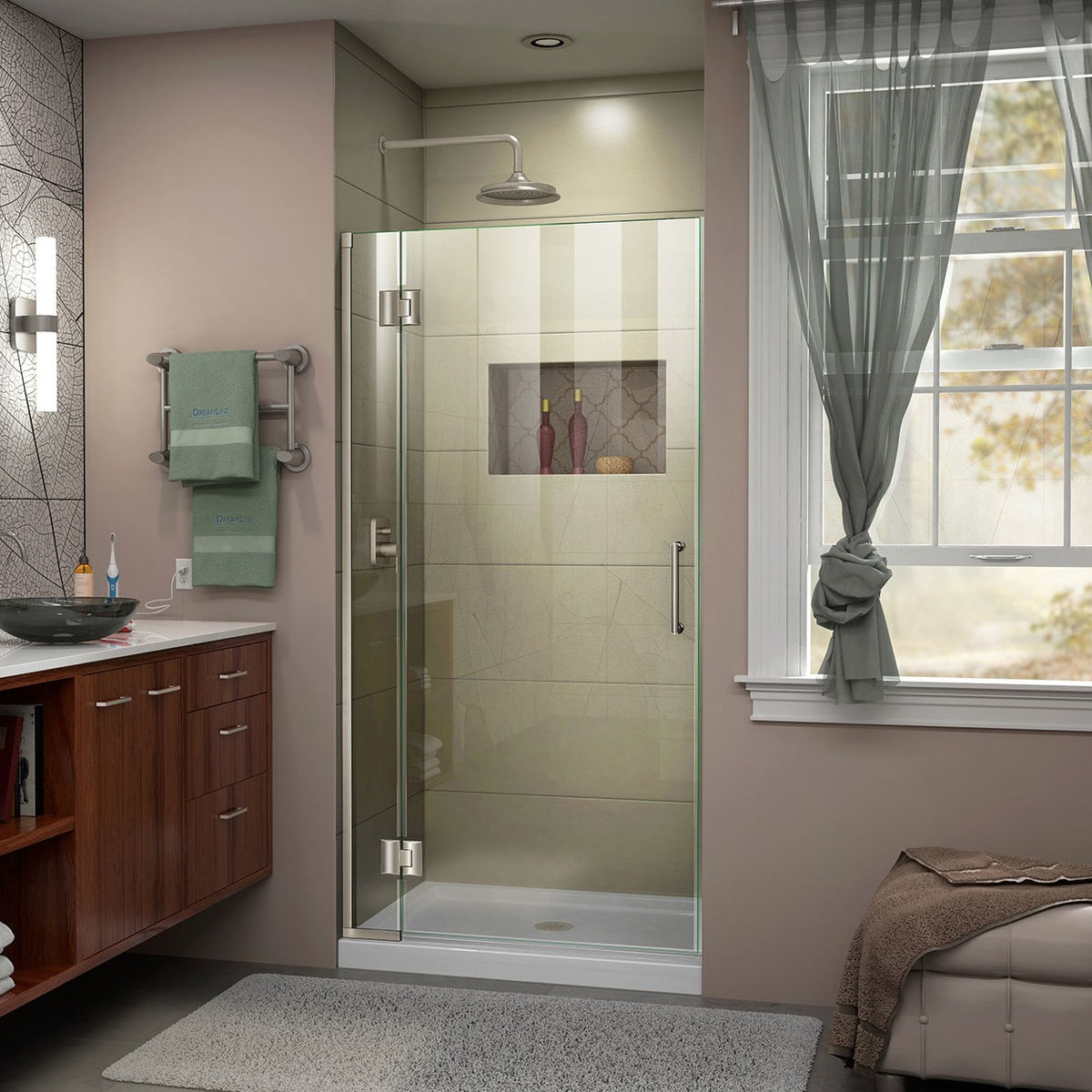

• Four Hardware Finishes: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze and Satin Black

Specifications

• Product Type: Shower Door
• Collection: Unidoor-X
• Door Type: Hinged
• Frame Type: Frameless
• Configuration: 6 inch hinged glass panel with an attached frameless door
• Hinged Panel Width: 6 inches
• Glass Thickness: 3/8 inch (10 mm)
• Glass: Clear tempered glass with ClearMax coating
• Height: 72 inches
• Installation: Reversible for a left or right door opening
• Threshold: Drilling into the threshold is required for installation
• Hardware Finishes: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze, Satin Black
• Shower Base: Not included
• Measuring: Measure only after the walls are finished, including tile and back walls
• Installation Note: Professional installation recommended
• Warranty: Lifetime limited manufacturer warranty, three year hardware finish warranty
• Available Sizes:
  • 29 in W x 72 in H
    • Walk In Opening: 22 in
  • 30 in W x 72 in H
    • Walk In Opening: 23 in
  • 31 in W x 72 in H
    • Walk In Opening: 24 in
  • 32 in W x 72 in H
    • Walk In Opening: 25 in
  • 33 in W x 72 in H
    • Walk In Opening: 26 in
  • 34 in W x 72 in H
    • Walk In Opening: 27 in
  • 35 in W x 72 in H
    • Walk In Opening: 28 in
  • 36 in W x 72 in H
    • Walk In Opening: 29 in

Product Specification Sheet

• Installation Manual
• Technical Drawings
  • 29"W x 72"H
  • 30"W x 72"H
  • 31"W x 72"H
  • 32"W x 72"H
  • 33"W x 72"H
  • 34"W x 72"H
  • 35"W x 72"H
  • 36"W x 72"H

Picture a bright, open shower where clear glass meets the tile you chose with care, and every morning starts with a little more light. The Unidoor-X brings that calm, finished feeling into the bathroom you have been planning.
