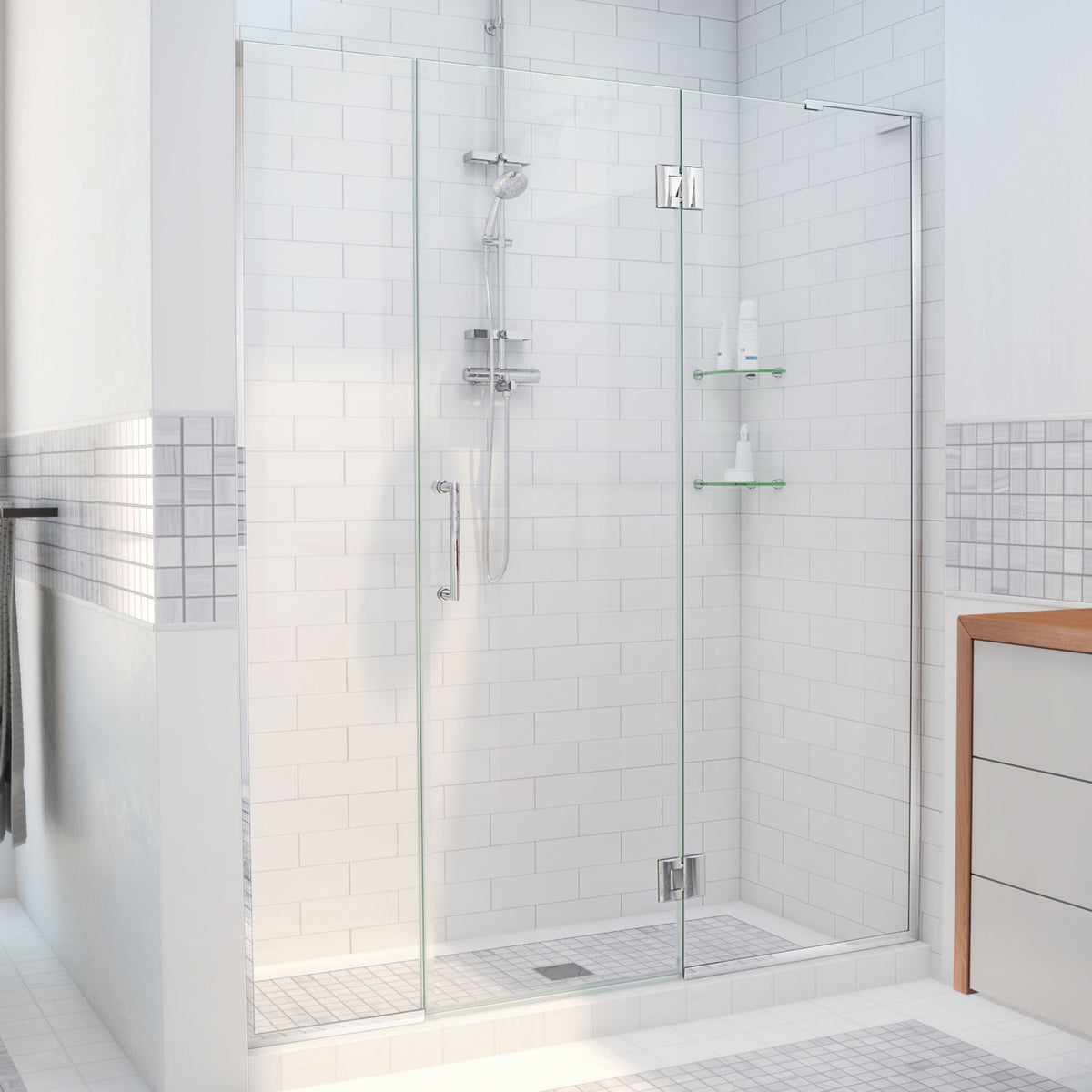

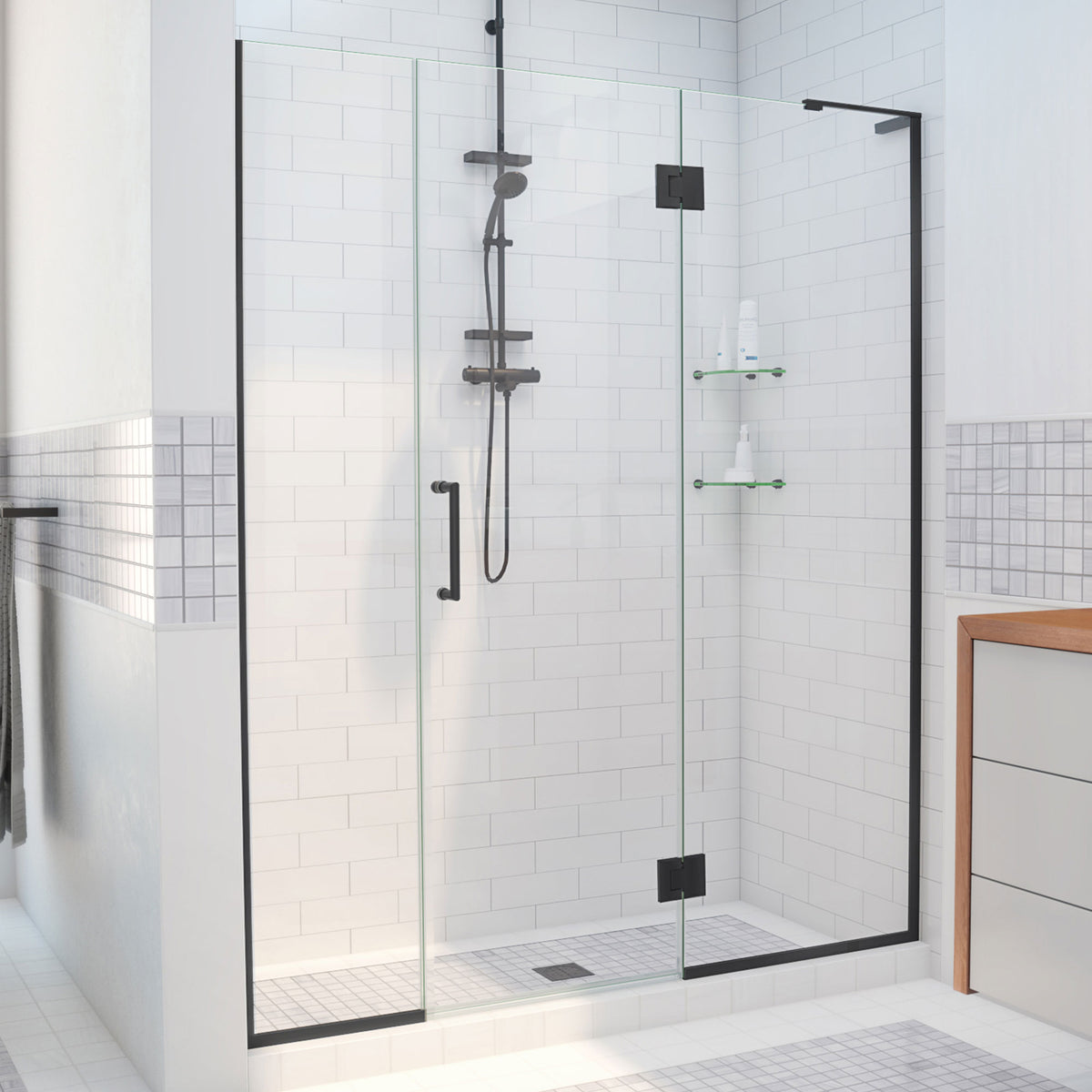

Unidoor-X Frameless Hinged Shower Door with 24" Hinged Panel and Inline Panel for Right Wall Installation (61"W to 73"W)

Unidoor-X Frameless Hinged Shower Door with 24 Inch Hinged Panel and Inline Panel for Right Wall Installation in Clear Glass for 61 to 73 Inch Openings

Open up your bathroom with the Unidoor-X frameless hinged shower door. This system pairs a 24 inch hinged panel, an attached frameless door and a 14 inch or 22 inch inline panel, built for right wall installation with the hinged panel on the right, so the glass reads as one clean, light filled wall. Thick 3/8 inch clear tempered glass, solid brass glass to glass hinges and slim wall channels keep the look minimal while the door swings smoothly every day.

Key Features & Benefits

• Frameless Glass Design: Clean lines and an open, airy feel that lets your tile take center stage
• Premium Tempered Glass: 3/8 inch (10 mm) thick certified clear tempered glass

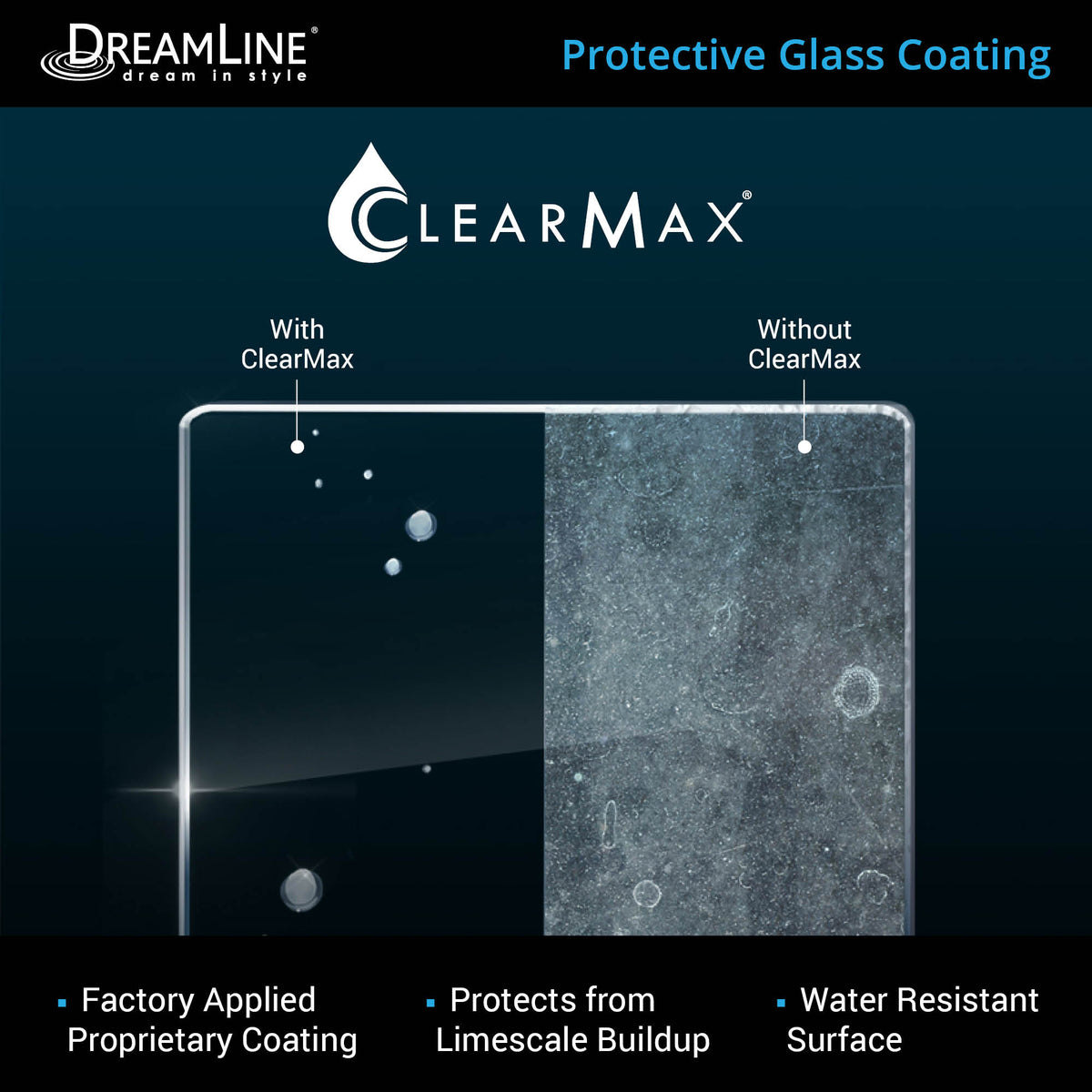

• ClearMax Coating: Water and stain resistant glass coating that makes cleaning easier

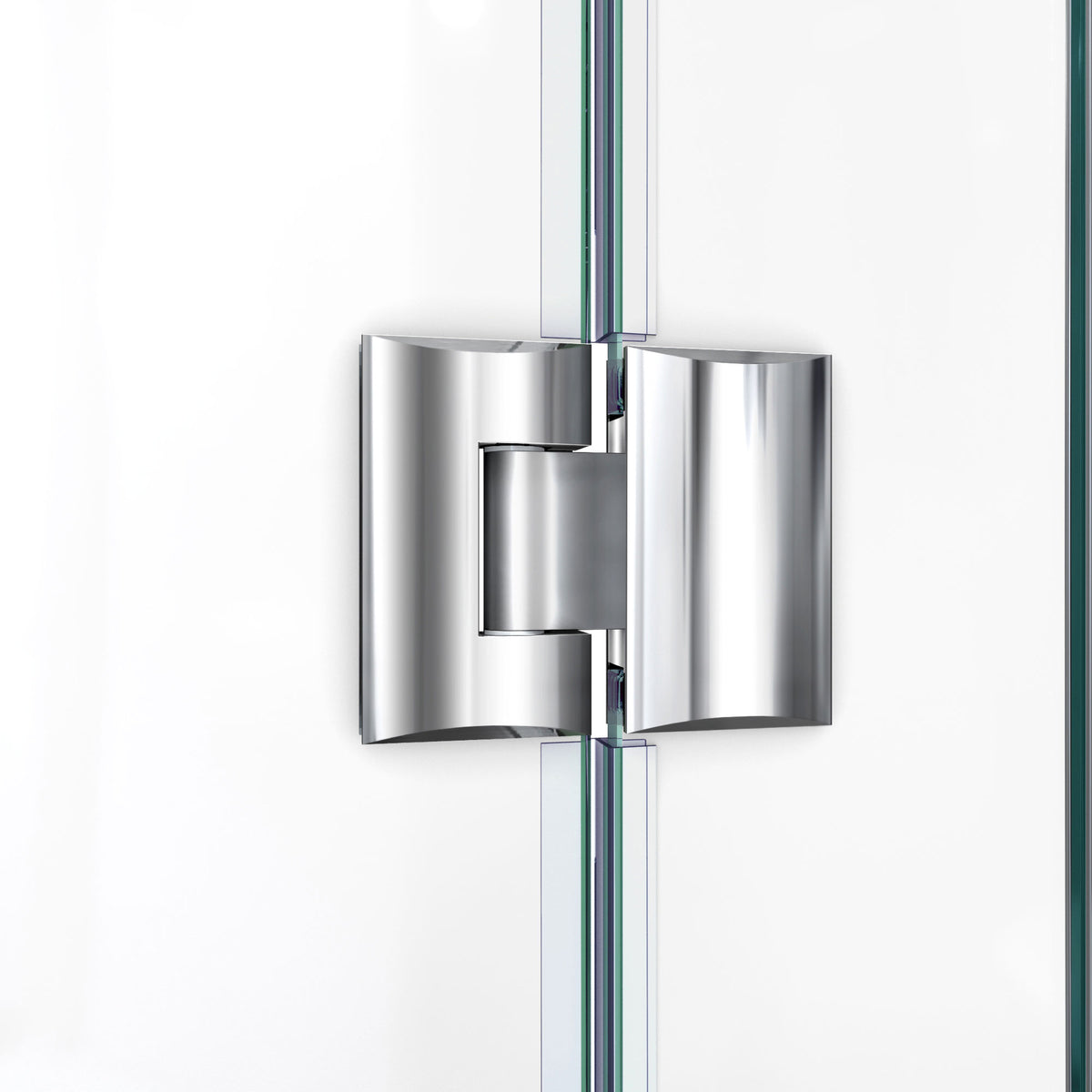

• Glass to Glass Hinges: Solid brass self closing hinges connect the door to the hinged panel

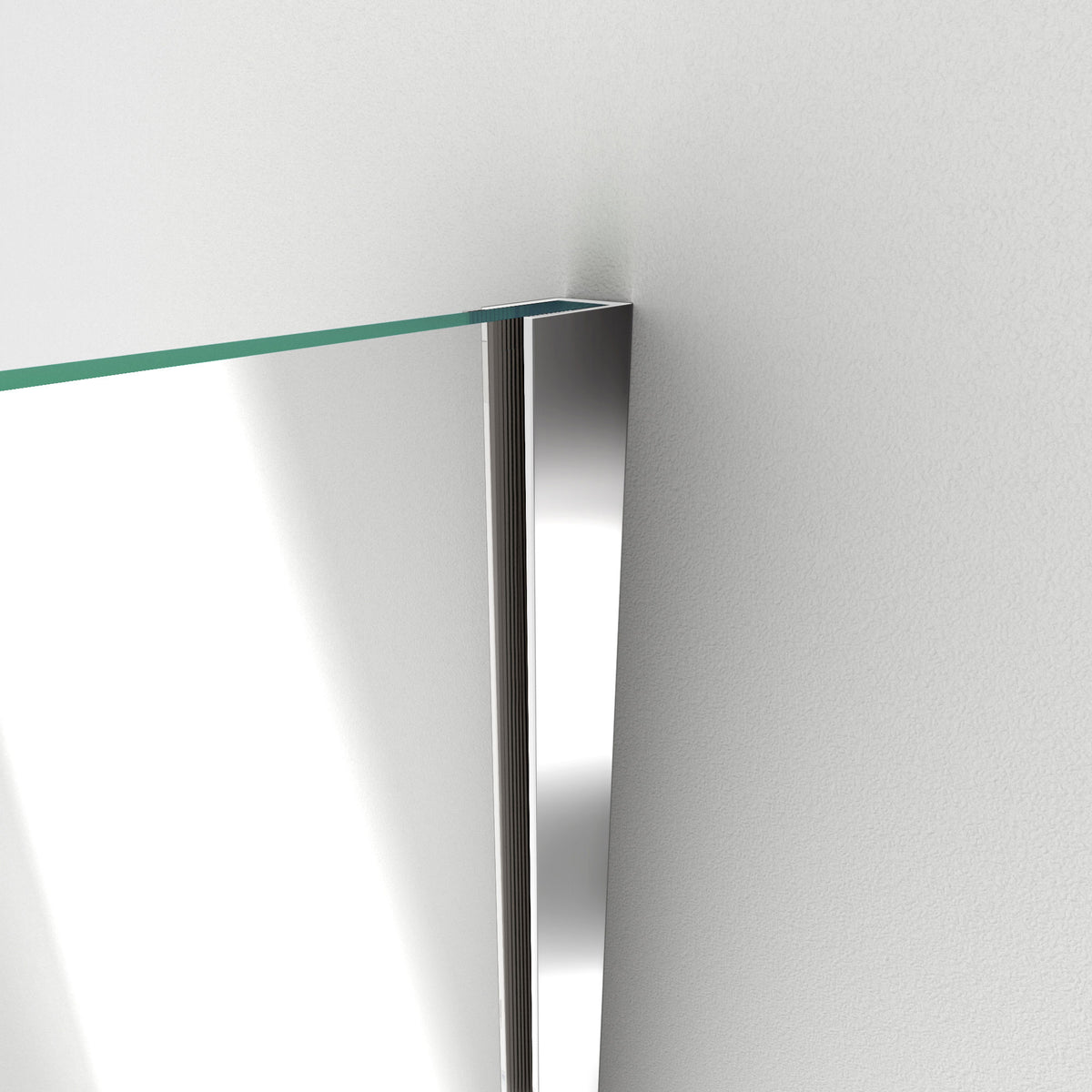

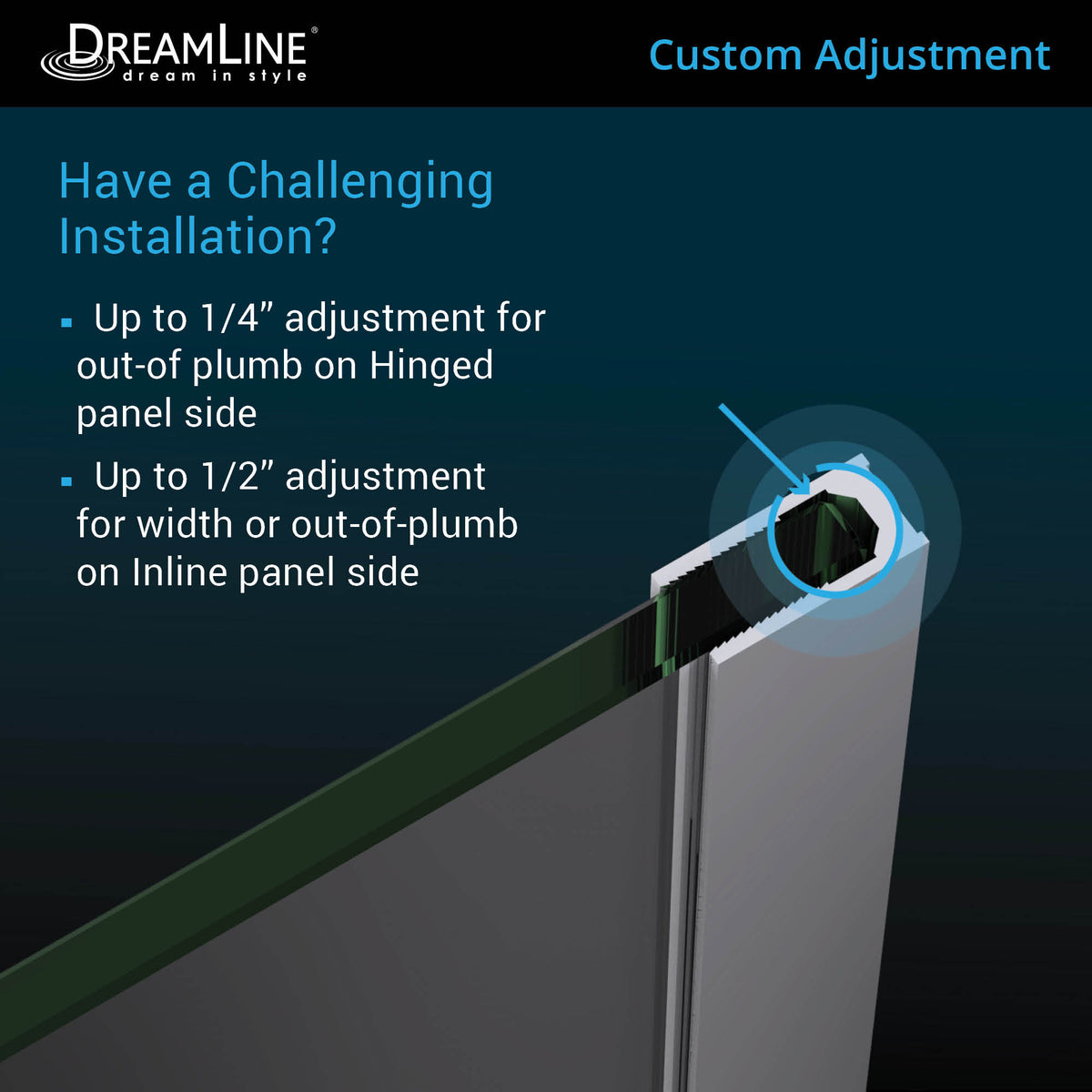

• Custom Adjustment: 1 inch anodized aluminum U channel with up to 1/4 inch out of plumb adjustment on the hinged panel side and up to 1/2 inch width or out of plumb adjustment on the inline panel side

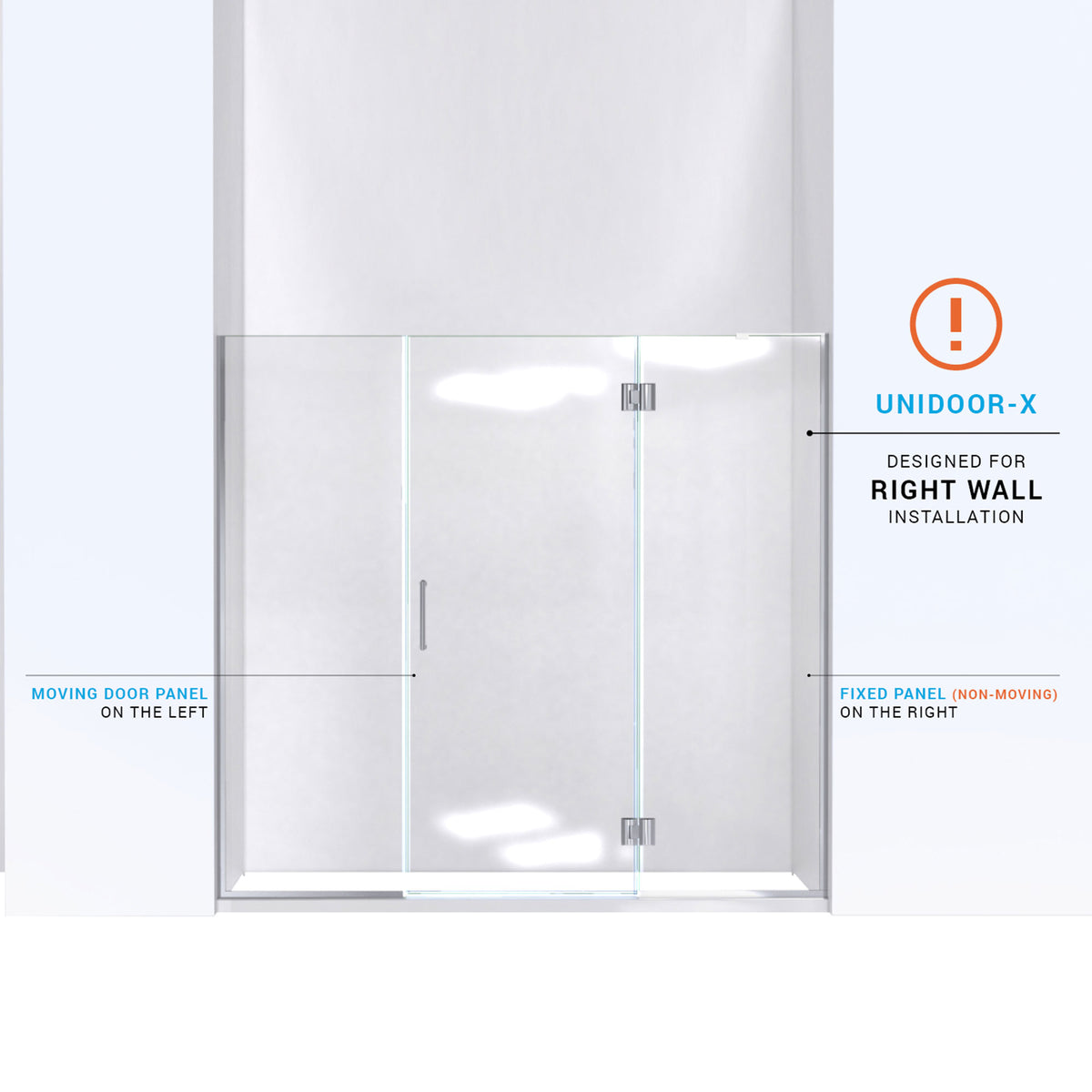

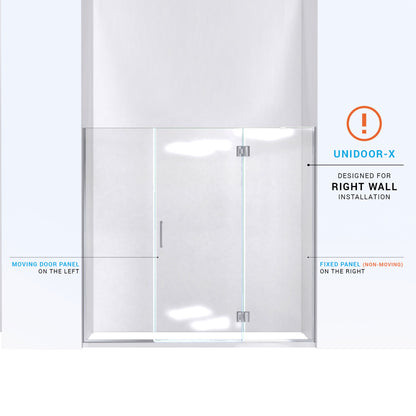

• Right Wall Installation: Built for right wall installation with the hinged panel on the right. This model is not reversible

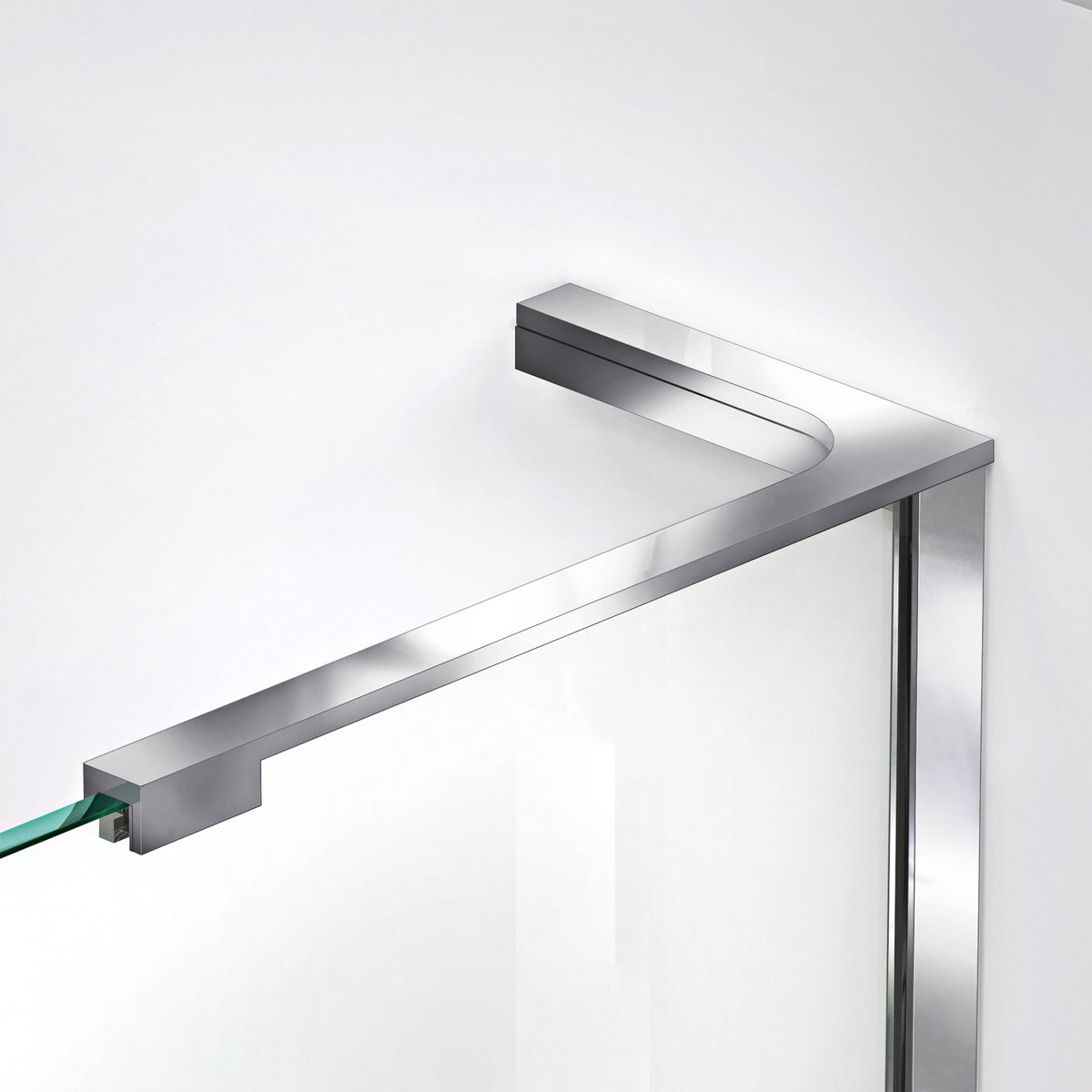

• L Bar Support: Stabilizes the 24 inch hinged panel while keeping the view open
• Four Hardware Finishes: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze and Satin Black

Specifications

• Product Type: Shower Door
• Collection: Unidoor-X
• Door Type: Hinged
• Frame Type: Frameless
• Configuration: 24 inch hinged panel, an attached frameless door and a 14 inch or 22 inch inline panel, built for right wall installation with the hinged panel on the right
• Hinged Panel Width: 24 inches
• Inline Panel: 14 to 14 1/2 inch inline panel (61 to 69 inch widths) or 22 to 22 1/2 inch inline panel (72 to 73 inch widths)
• Glass Thickness: 3/8 inch (10 mm)
• Glass: Clear tempered glass with ClearMax coating
• Height: 72 inches
• Installation: Right wall installation only (hinged panel on the right)
• Threshold: Drilling into the threshold is required for installation
• Hardware Finishes: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze, Satin Black
• Shower Base: Not included
• Measuring: Measure only after the walls are finished, including tile and back walls
• Installation Note: Professional installation recommended
• Warranty: Lifetime limited manufacturer warranty, three year hardware finish warranty
• Available Sizes:
  • 61 to 61.5 in W x 72 in H
    • Walk In Opening: 22 in
    • Panel: 14 inch inline panel
  • 61.5 to 62 in W x 72 in H
    • Walk In Opening: 22 in
    • Panel: 14.5 inch inline panel
  • 62 to 62.5 in W x 72 in H
    • Walk In Opening: 23 in
    • Panel: 14 inch inline panel
  • 62.5 to 63 in W x 72 in H
    • Walk In Opening: 23 in
    • Panel: 14.5 inch inline panel
  • 63 to 63.5 in W x 72 in H
    • Walk In Opening: 24 in
    • Panel: 14 inch inline panel
  • 63.5 to 64 in W x 72 in H
    • Walk In Opening: 24 in
    • Panel: 14.5 inch inline panel
  • 64 to 64.5 in W x 72 in H
    • Walk In Opening: 25 in
    • Panel: 14 inch inline panel
  • 64.5 to 65 in W x 72 in H
    • Walk In Opening: 25 in
    • Panel: 14.5 inch inline panel
  • 65 to 65.5 in W x 72 in H
    • Walk In Opening: 26 in
    • Panel: 14 inch inline panel
  • 65.5 to 66 in W x 72 in H
    • Walk In Opening: 26 in
    • Panel: 14.5 inch inline panel
  • 66 to 66.5 in W x 72 in H
    • Walk In Opening: 27 in
    • Panel: 14 inch inline panel
  • 66.5 to 67 in W x 72 in H
    • Walk In Opening: 27 in
    • Panel: 14.5 inch inline panel
  • 67 to 67.5 in W x 72 in H
    • Walk In Opening: 28 in
    • Panel: 14 inch inline panel
  • 67.5 to 68 in W x 72 in H
    • Walk In Opening: 28 in
    • Panel: 14.5 inch inline panel
  • 68 to 68.5 in W x 72 in H
    • Walk In Opening: 29 in
    • Panel: 14 inch inline panel
  • 68.5 to 69 in W x 72 in H
    • Walk In Opening: 29 in
    • Panel: 14.5 inch inline panel
  • 72 to 72.5 in W x 72 in H
    • Walk In Opening: 25 in
    • Panel: 22 inch inline panel
  • 72.5 to 73 in W x 72 in H
    • Walk In Opening: 25 in
    • Panel: 22.5 inch inline panel

Product Specification Sheet

• Installation Manual
• Technical Drawings
  • 61-61 1/2"W x 72"H
  • 61 1/2-62"W x 72"H
  • 62-62 1/2"W x 72"H
  • 62 1/2-63"W x 72"H
  • 63-63 1/2"W x 72"H
  • 63 1/2-64"W x 72"H
  • 64-64 1/2"W x 72"H
  • 64 1/2-65"W x 72"H
  • 65-65 1/2"W x 72"H
  • 65 1/2-66"W x 72"H
  • 66-66 1/2"W x 72"H
  • 66 1/2-67"W x 72"H
  • 67-67 1/2"W x 72"H
  • 67 1/2-68"W x 72"H
  • 68-68 1/2"W x 72"H
  • 68 1/2-69"W x 72"H
  • 72-72 1/2"W x 72"H
  • 72 1/2-73"W x 72"H

Picture a wide walk in shower framed in clear glass, with light moving freely across the whole room. The Unidoor-X turns that open, gallery like look into the everyday centerpiece of your new bathroom.
