Unidoor-X Frameless Hinged Shower Door with 34"H Inline Buttress Panel (53"W to 73"W)
Unidoor-X Frameless Hinged Shower Door with 34"H Inline Buttress Panel (53"W to 73"W)
SKU: D1232434-01-SC9F49.534C8
- Regular price
- Price: $1,040.00
- Regular price
- List Price:
- Sale price
- Price: $1,040.00
- Unit price
- / per
Shipping included in the online price

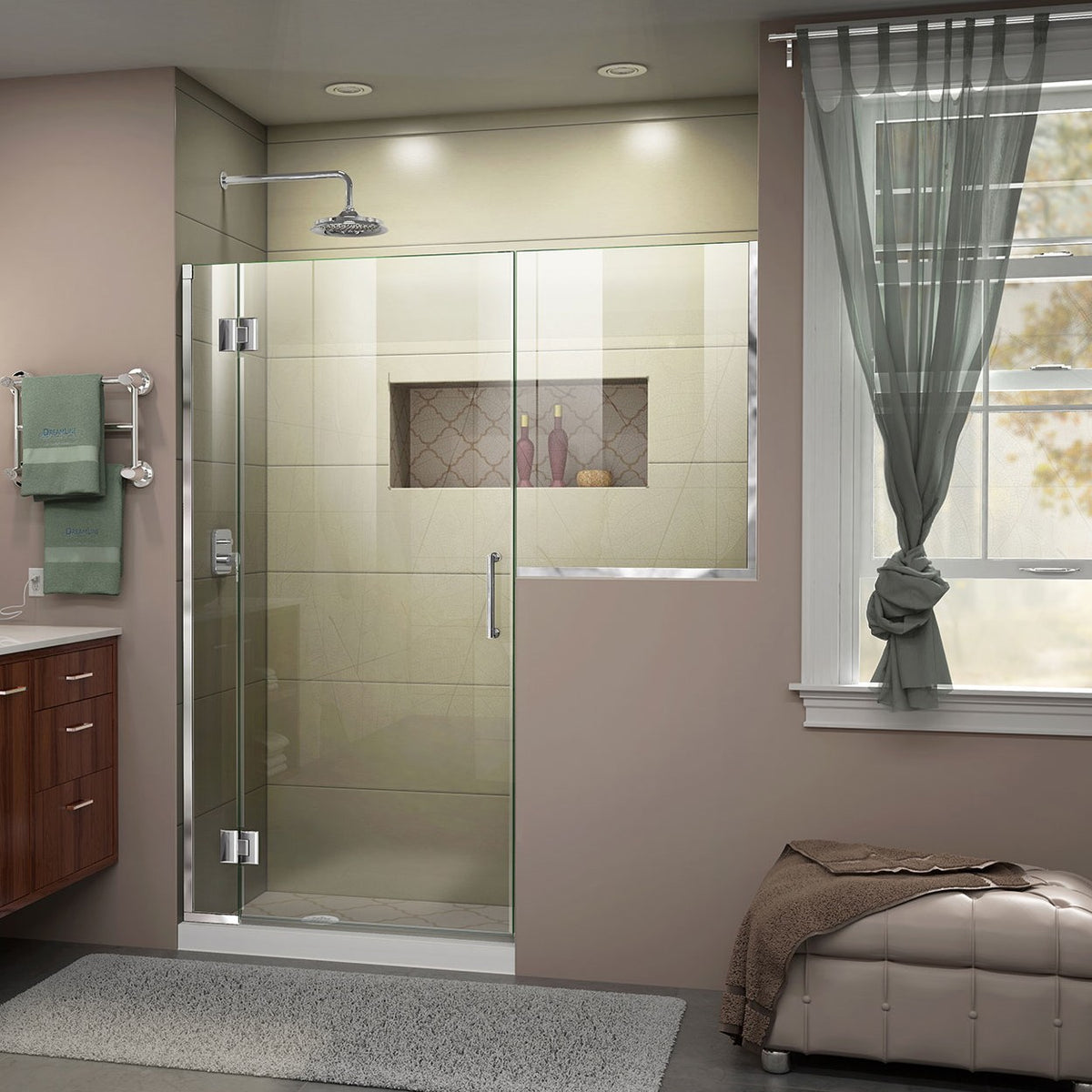

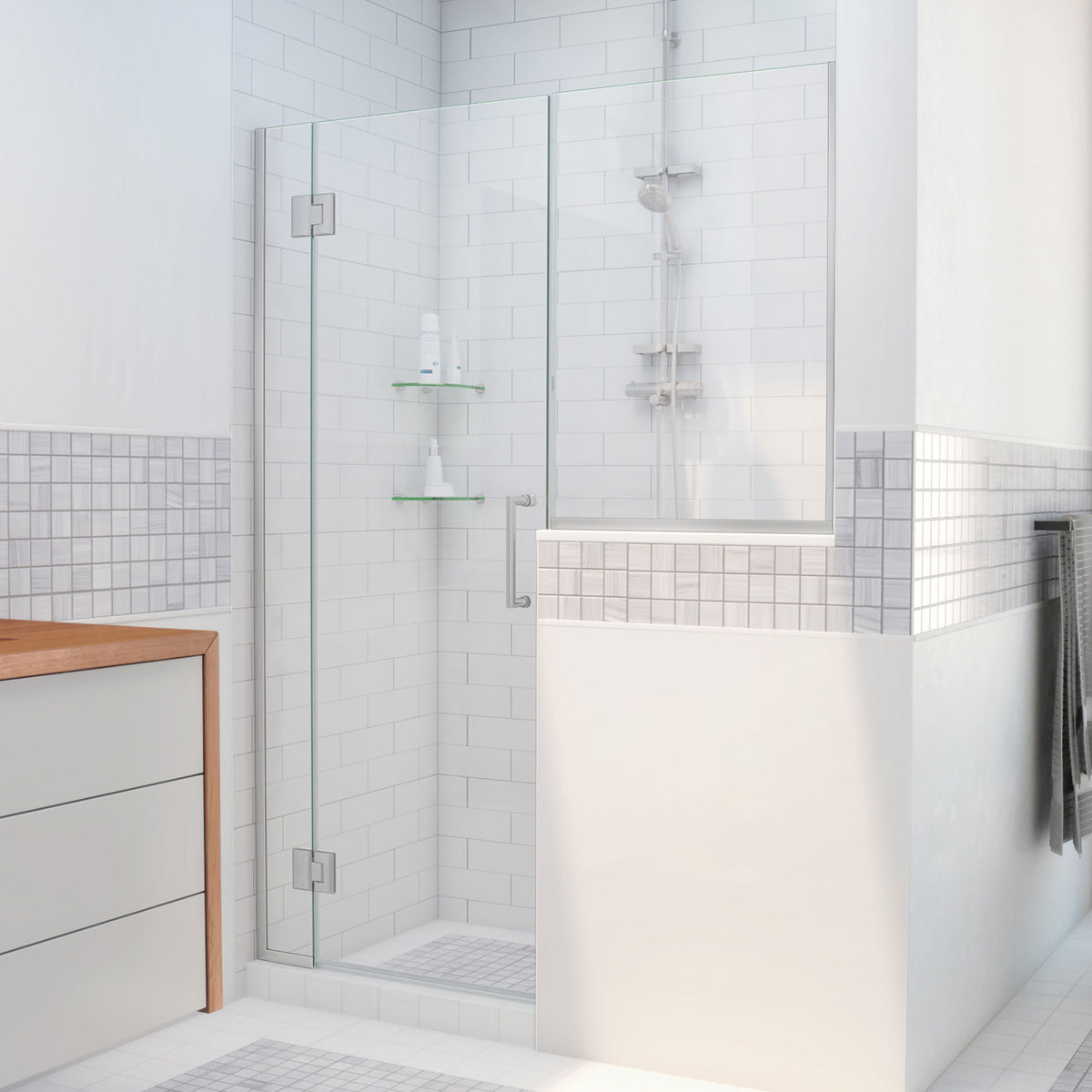

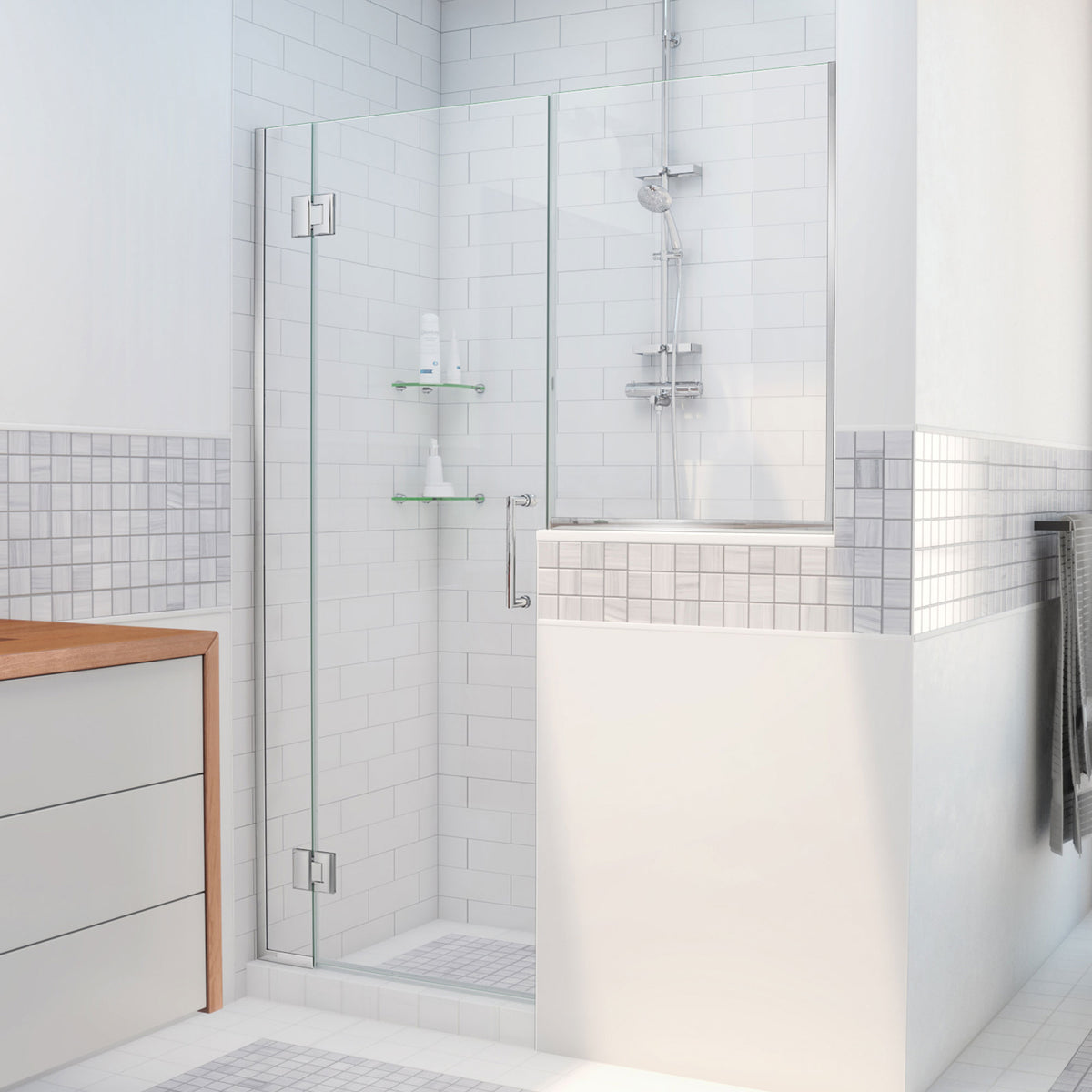

Open up your bathroom with the Unidoor-X frameless hinged shower door. This system pairs a 6 inch hinged panel, an attached frameless door and a 24, 30 or 36 inch wide inline buttress panel that stands 34 inches tall on a pony wall, so the glass reads as one clean, light filled wall.
FREE shipping to the lower 48 states | Free pickup in Anaheim, CA
Couldn't load pickup availability
Key Features & Benefits
- Frameless Glass Design: Clean lines and an open, airy feel that lets your tile take center stage
- Premium Tempered Glass: 3/8 inch (10 mm) thick certified clear tempered glass

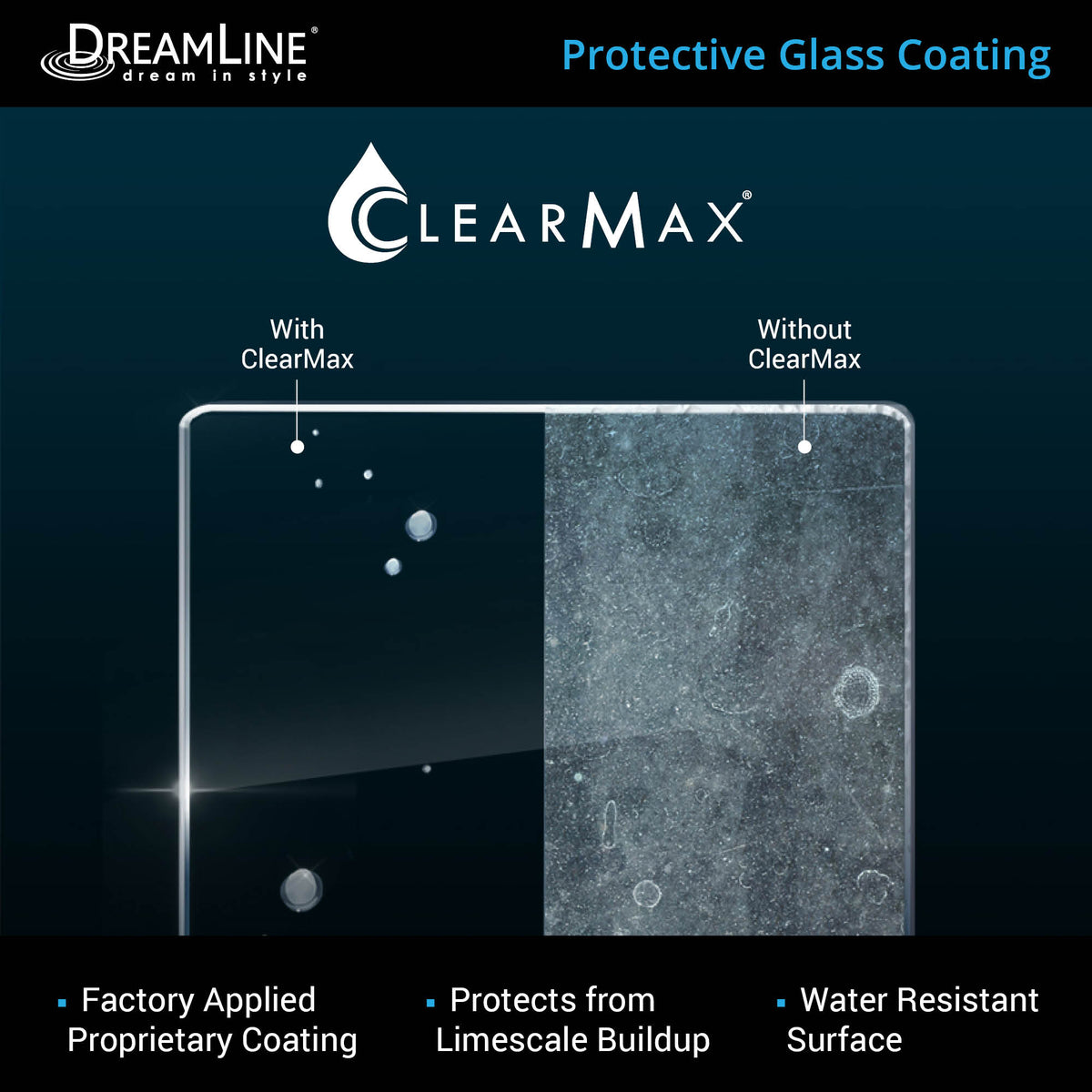

- ClearMax Coating: Water and stain resistant glass coating that makes cleaning easier

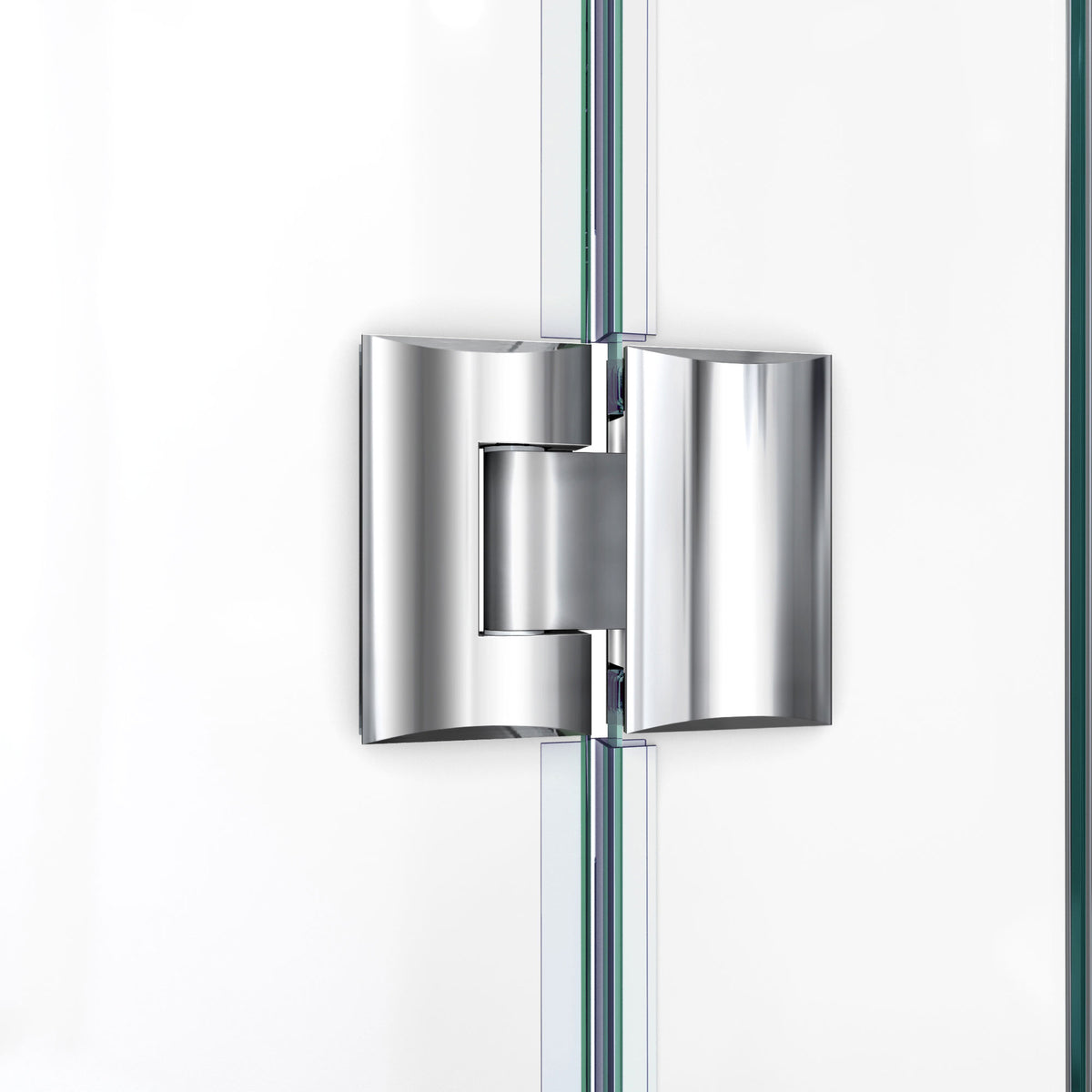

- Glass to Glass Hinges: Solid brass self closing hinges connect the door to the hinged panel

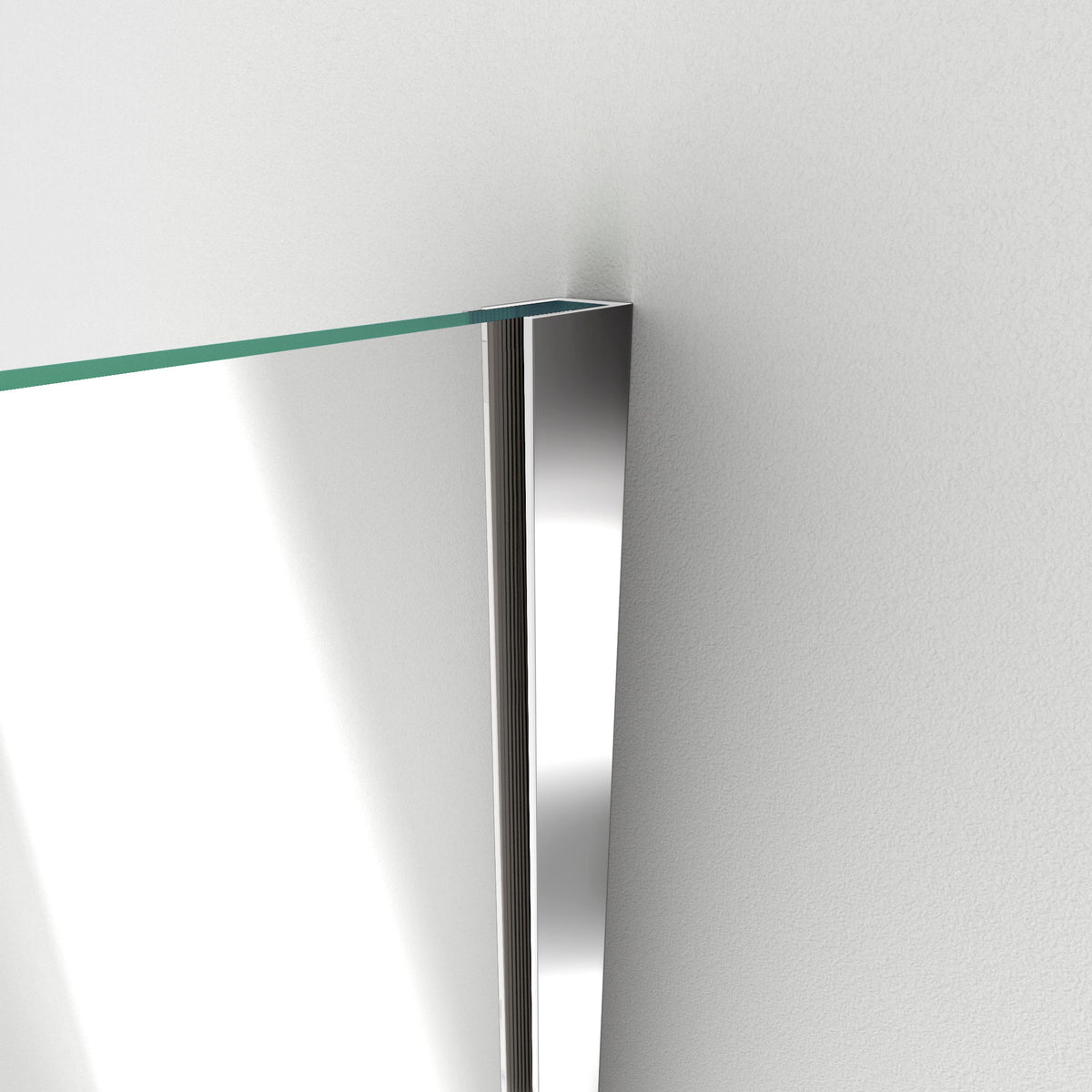

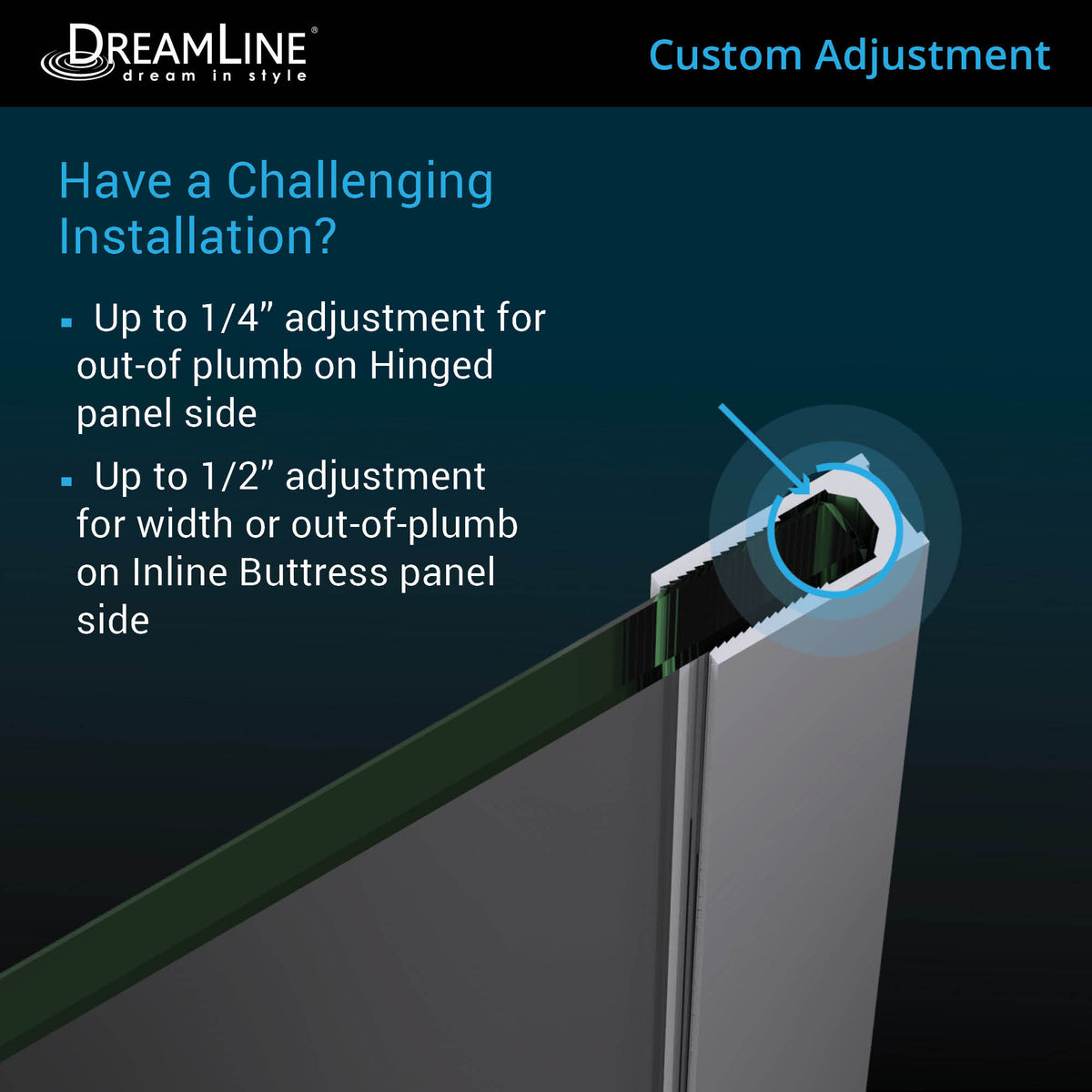

- Custom Adjustment: 1 inch anodized aluminum U channel with up to 1/4 inch out of plumb adjustment on the hinged panel side and up to 1/2 inch width or out of plumb adjustment on the inline panel side

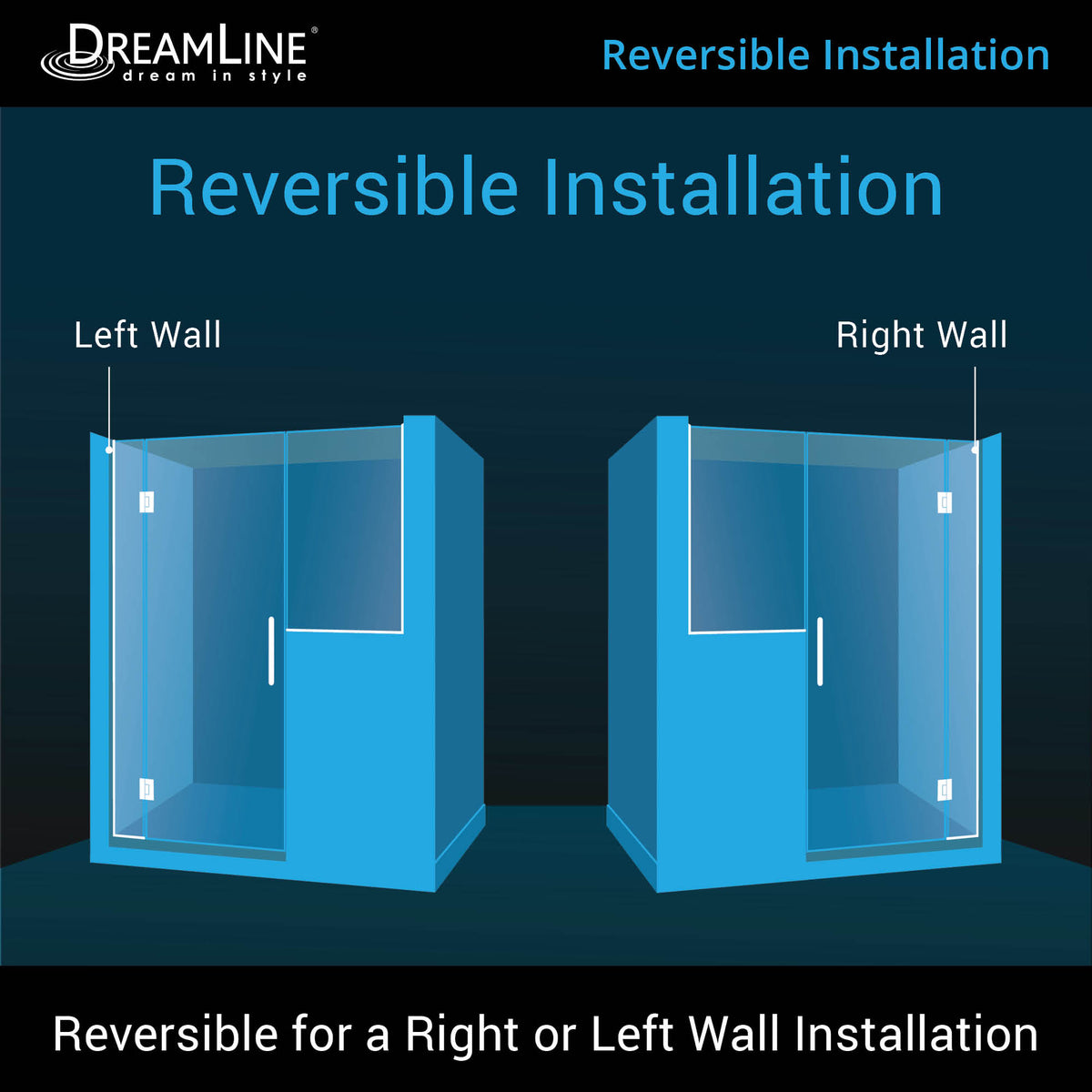

- Reversible Installation: Installs for a left or right door opening to fit your layout

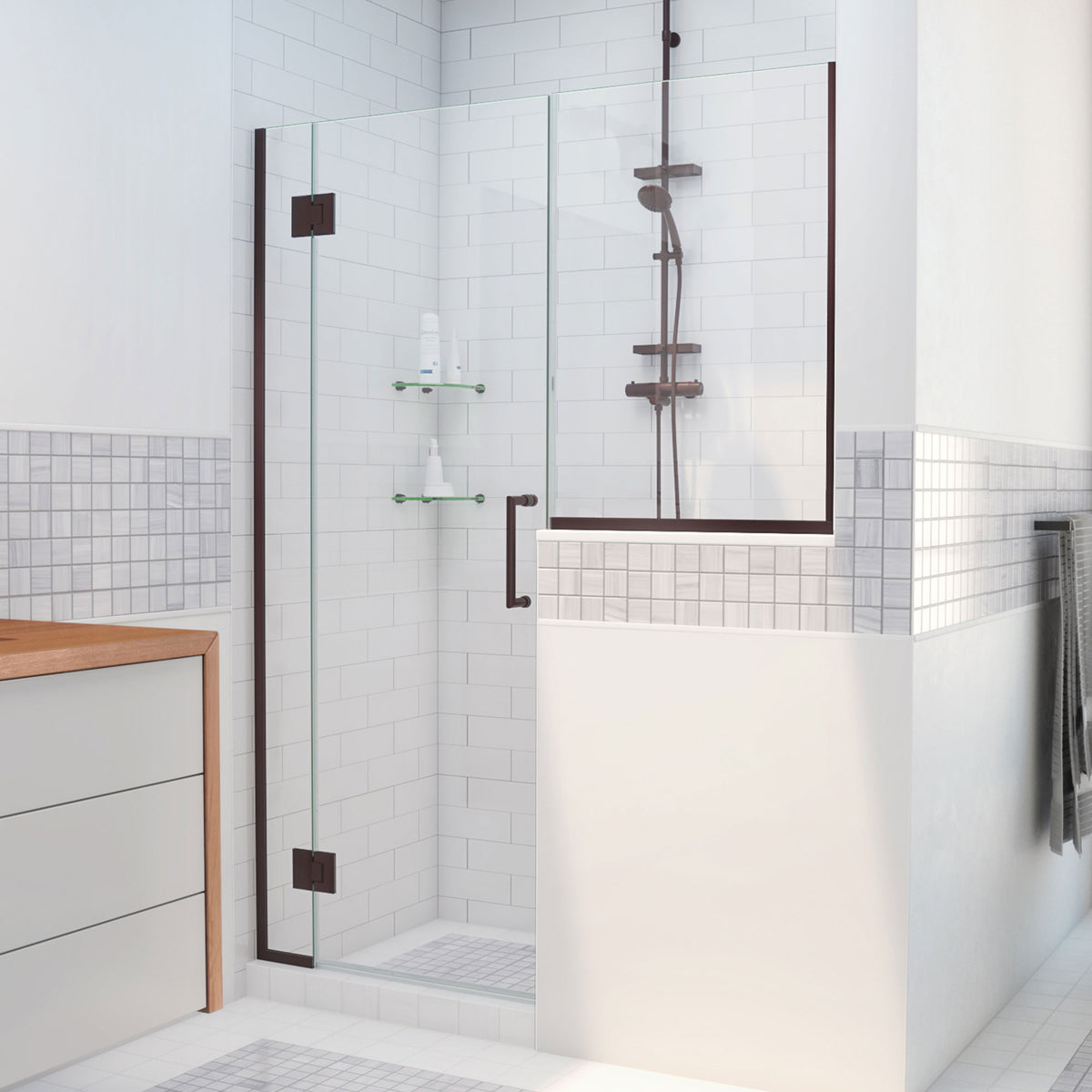

- Pony Wall Ready: Inline buttress panel sits on a 34 inch high pony wall for a half wall look
- Four Hardware Finishes: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze and Satin Black
Specifications
- Product Type: Shower Door
- Collection: Unidoor-X
- Door Type: Hinged
- Frame Type: Frameless
- Configuration: 6 inch hinged panel, an attached frameless door and a 24, 30 or 36 inch wide inline buttress panel that stands 34 inches tall on a pony wall
- Hinged Panel Width: 6 inches
- Inline Panel: 24, 30 or 36 inch wide by 34 inch high inline buttress panel
- Glass Thickness: 3/8 inch (10 mm)
- Glass: Clear tempered glass with ClearMax coating
- Height: 72 inches
- Installation: Reversible for a left or right door opening
- Threshold: Drilling into the threshold is required for installation
- Hardware Finishes: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze, Satin Black
- Shower Base: Not included
- Measuring: Measure only after the walls are finished, including tile and back walls
- Installation Note: Professional installation recommended
- Warranty: Lifetime limited manufacturer warranty, three year hardware finish warranty
- Available Sizes: 53 to 53.5 in W x 72 in H (Walk In Opening 22 in; Panel: 24 inch W x 34 inch H inline buttress panel); 54 to 54.5 in W x 72 in H (Walk In Opening 23 in; Panel: 24 inch W x 34 inch H inline buttress panel); 55 to 55.5 in W x 72 in H (Walk In Opening 24 in; Panel: 24 inch W x 34 inch H inline buttress panel); 56 to 56.5 in W x 72 in H (Walk In Opening 25 in; Panel: 24 inch W x 34 inch H inline buttress panel); 57 to 57.5 in W x 72 in H (Walk In Opening 26 in; Panel: 24 inch W x 34 inch H inline buttress panel); 58 to 58.5 in W x 72 in H (Walk In Opening 27 in; Panel: 24 inch W x 34 inch H inline buttress panel); 59 to 59.5 in W x 72 in H (Walk In Opening 28 in; Panel: 24 inch W x 34 inch H inline buttress panel); 59 to 59.5 in W x 72 in H (Walk In Opening 22 in; Panel: 30 inch W x 34 inch H inline buttress panel); 60 to 60.5 in W x 72 in H (Walk In Opening 29 in; Panel: 24 inch W x 34 inch H inline buttress panel); 60 to 60.5 in W x 72 in H (Walk In Opening 23 in; Panel: 30 inch W x 34 inch H inline buttress panel); 61 to 61.5 in W x 72 in H (Walk In Opening 24 in; Panel: 30 inch W x 34 inch H inline buttress panel); 62 to 62.5 in W x 72 in H (Walk In Opening 25 in; Panel: 30 inch W x 34 inch H inline buttress panel); 63 to 63.5 in W x 72 in H (Walk In Opening 26 in; Panel: 30 inch W x 34 inch H inline buttress panel); 64 to 64.5 in W x 72 in H (Walk In Opening 27 in; Panel: 30 inch W x 34 inch H inline buttress panel); 65 to 65.5 in W x 72 in H (Walk In Opening 28 in; Panel: 30 inch W x 34 inch H inline buttress panel); 65 to 65.5 in W x 72 in H (Walk In Opening 22 in; Panel: 36 inch W x 34 inch H inline buttress panel); 66 to 66.5 in W x 72 in H (Walk In Opening 29 in; Panel: 30 inch W x 34 inch H inline buttress panel); 66 to 66.5 in W x 72 in H (Walk In Opening 23 in; Panel: 36 inch W x 34 inch H inline buttress panel); 67 to 67.5 in W x 72 in H (Walk In Opening 24 in; Panel: 36 inch W x 34 inch H inline buttress panel); 68 to 68.5 in W x 72 in H (Walk In Opening 25 in; Panel: 36 inch W x 34 inch H inline buttress panel); 69 to 69.5 in W x 72 in H (Walk In Opening 26 in; Panel: 36 inch W x 34 inch H inline buttress panel); 70 to 70.5 in W x 72 in H (Walk In Opening 27 in; Panel: 36 inch W x 34 inch H inline buttress panel); 71 to 71.5 in W x 72 in H (Walk In Opening 28 in; Panel: 36 inch W x 34 inch H inline buttress panel); 72 to 72.5 in W x 72 in H (Walk In Opening 29 in; Panel: 36 inch W x 34 inch H inline buttress panel)
Product Specification Sheet
- Installation Manual
-
Technical Drawings
- 53-53 1/2"W x 72"H, 24"W Panel
- 54-54 1/2"W x 72"H, 24"W Panel
- 55-55 1/2"W x 72"H, 24"W Panel
- 56-56 1/2"W x 72"H, 24"W Panel
- 57-57 1/2"W x 72"H, 24"W Panel
- 58-58 1/2"W x 72"H, 24"W Panel
- 59-59 1/2"W x 72"H, 24"W Panel
- 59-59 1/2"W x 72"H, 30"W Panel
- 60-60 1/2"W x 72"H, 24"W Panel
- 60-60 1/2"W x 72"H, 30"W Panel
- 61-61 1/2"W x 72"H, 30"W Panel
- 62-62 1/2"W x 72"H, 30"W Panel
- 63-63 1/2"W x 72"H, 30"W Panel
- 64-64 1/2"W x 72"H, 30"W Panel
- 65-65 1/2"W x 72"H, 30"W Panel
- 65-65 1/2"W x 72"H, 36"W Panel
- 66-66 1/2"W x 72"H, 30"W Panel
- 66-66 1/2"W x 72"H, 36"W Panel
- 67-67 1/2"W x 72"H, 36"W Panel
- 68-68 1/2"W x 72"H, 36"W Panel
- 69-69 1/2"W x 72"H, 36"W Panel
- 70-70 1/2"W x 72"H, 36"W Panel
- 71-71 1/2"W x 72"H, 36"W Panel
- 72-72 1/2"W x 72"H, 36"W Panel
Shipping: How Delivery Works
Shipping: How Delivery Works
Shipping is included to the 48 continental United States. Larger items ship by freight with liftgate service, and the carrier calls to set a delivery time.
Prefer to pick up? Free pickup at our Anaheim, CA showroom. Choose Pickup at checkout.
In stock items leave our warehouse in 3 to 5 business days. The exact rate for your cart is always shown at checkout before you pay. We are not able to ship to Hawaii or Alaska.
Returns
Returns need prior approval, so please contact us first. Restocking fees apply, and we can't accept returns after 30 days. Clearance items are sold as is. See the full return policy.
Questions
Not sure it fits? Call 657-279-8130, email sales@kbfhomeimprovement.com, or visit our Anaheim showroom at 1630 N. State College Blvd, Monday to Saturday, 9 AM to 5 PM. We usually reply within 1 to 2 business days.


A Closer Look Before You Choose
Explore the dimensions, materials, finishes and available options for Unidoor-X Frameless Hinged Shower Door with 34"H Inline Buttress Panel (53"W to 73"W). Check the product specifications and delivery details before placing your order.
