Unidoor-X Frameless Hinged Shower Door with 34"H Stationary Half Panel for Pony Wall Corner Enclosure

Unidoor-X Frameless Hinged Shower Door with 34"H Stationary Half Panel for Pony Wall Corner Enclosure

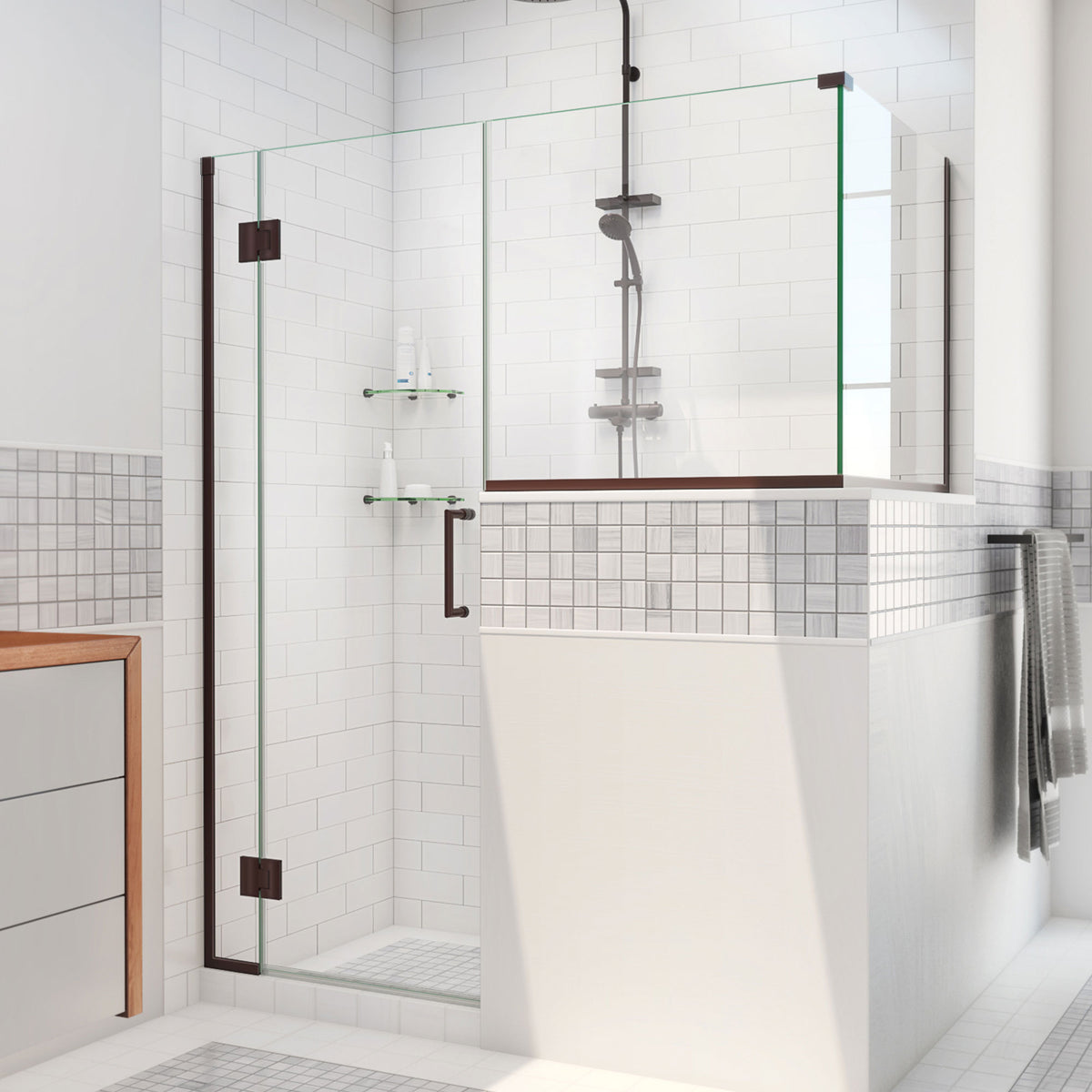

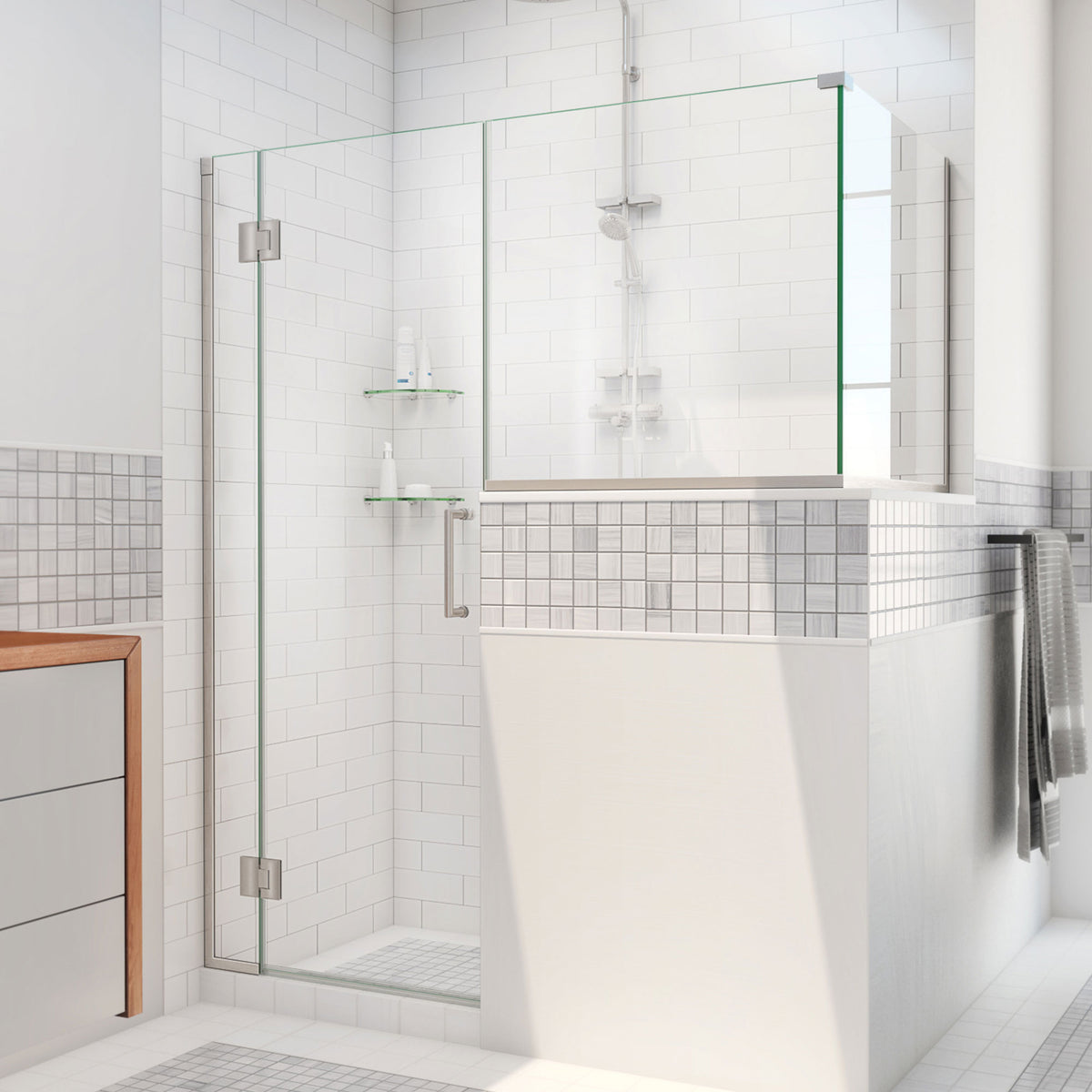

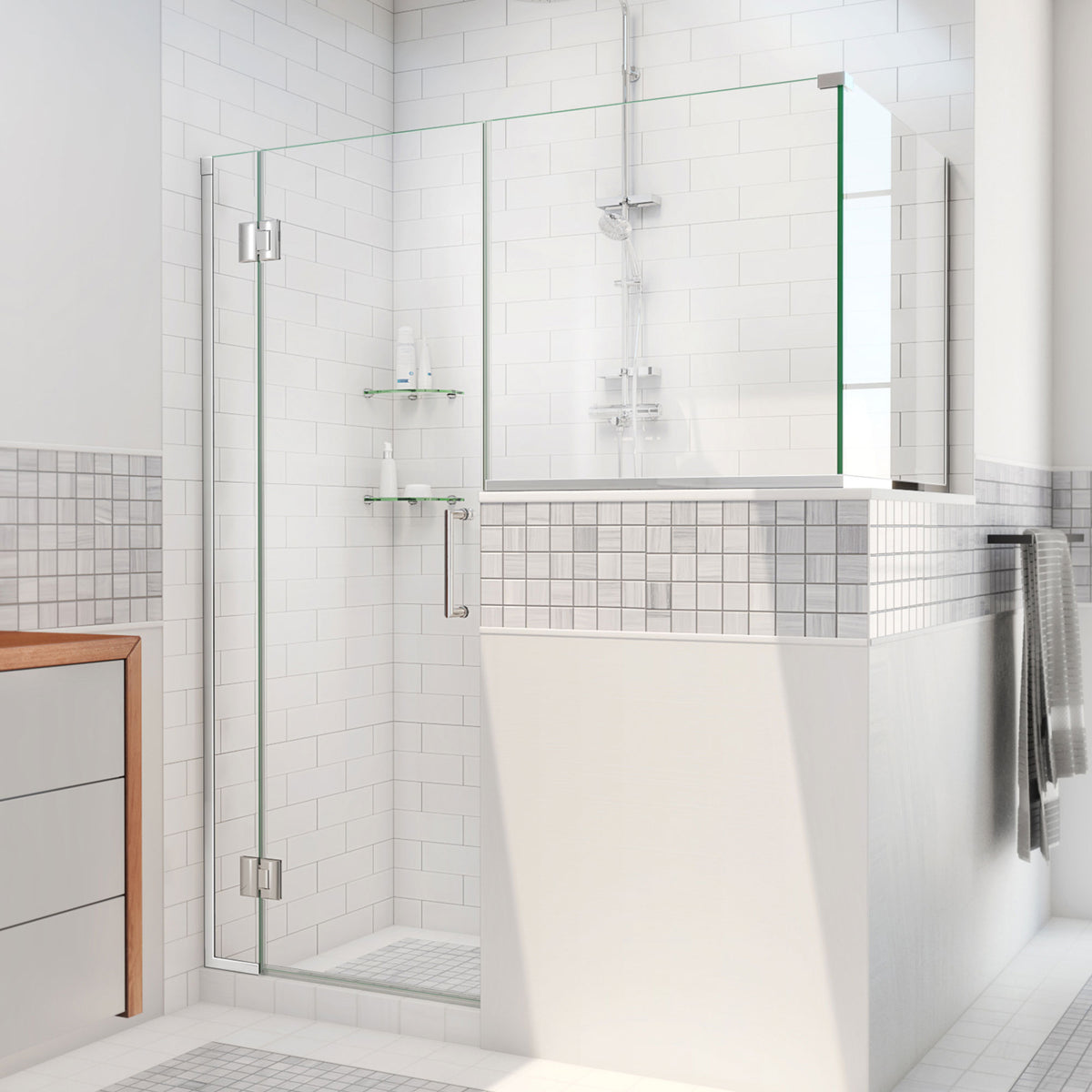

The Unidoor-X pony wall enclosure is made for a shower built with a knee wall. A frameless hinged door swings from a 6 inch hinged panel, while 34 inch tall glass half panels sit on top of the pony wall along the front and the return side. The result is a corner shower that stays open and bright above the wall and solid below it, in widths from 57 to 60 inches and return depths of 30 3/8 or 36 3/8 inches.

Key Features & Benefits

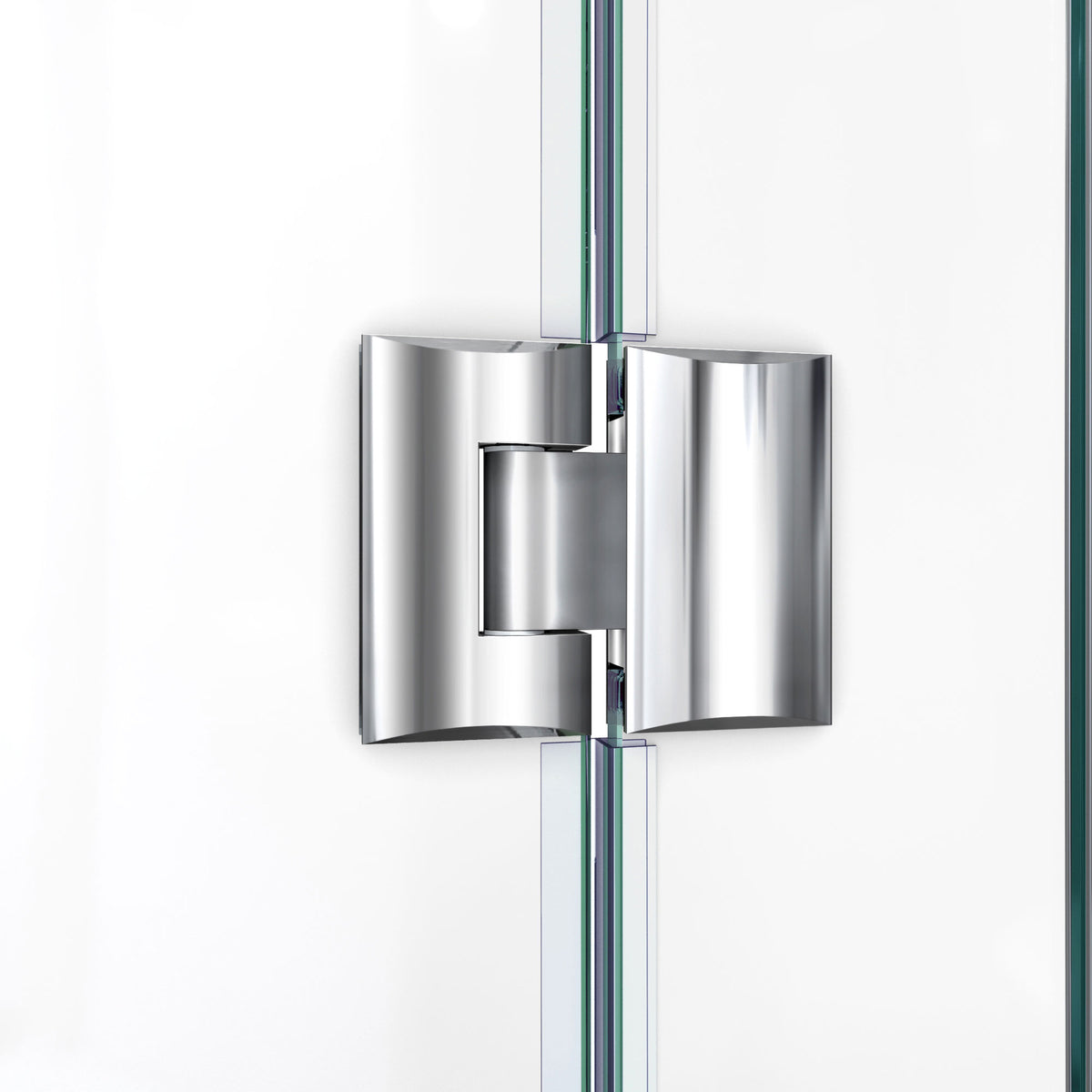

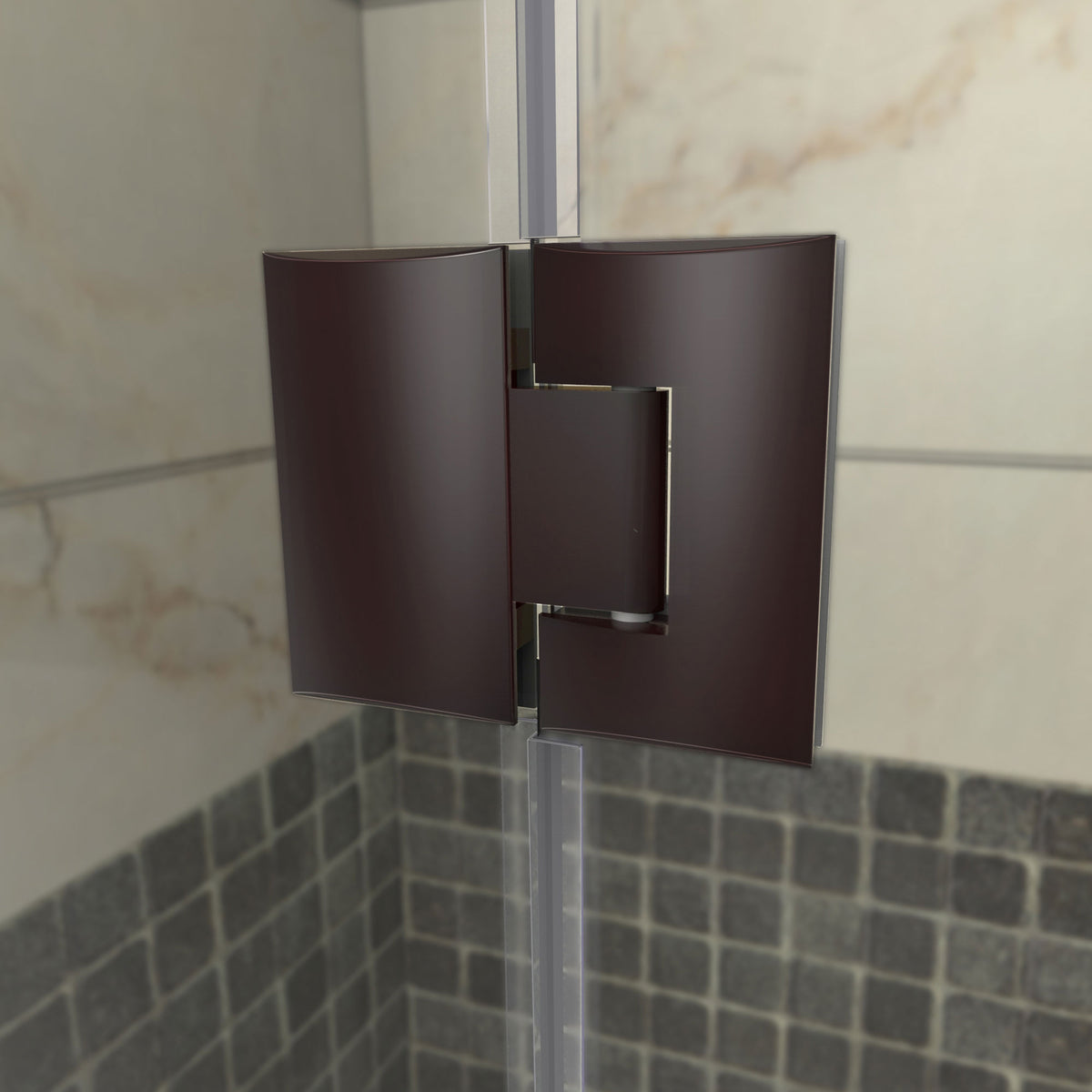

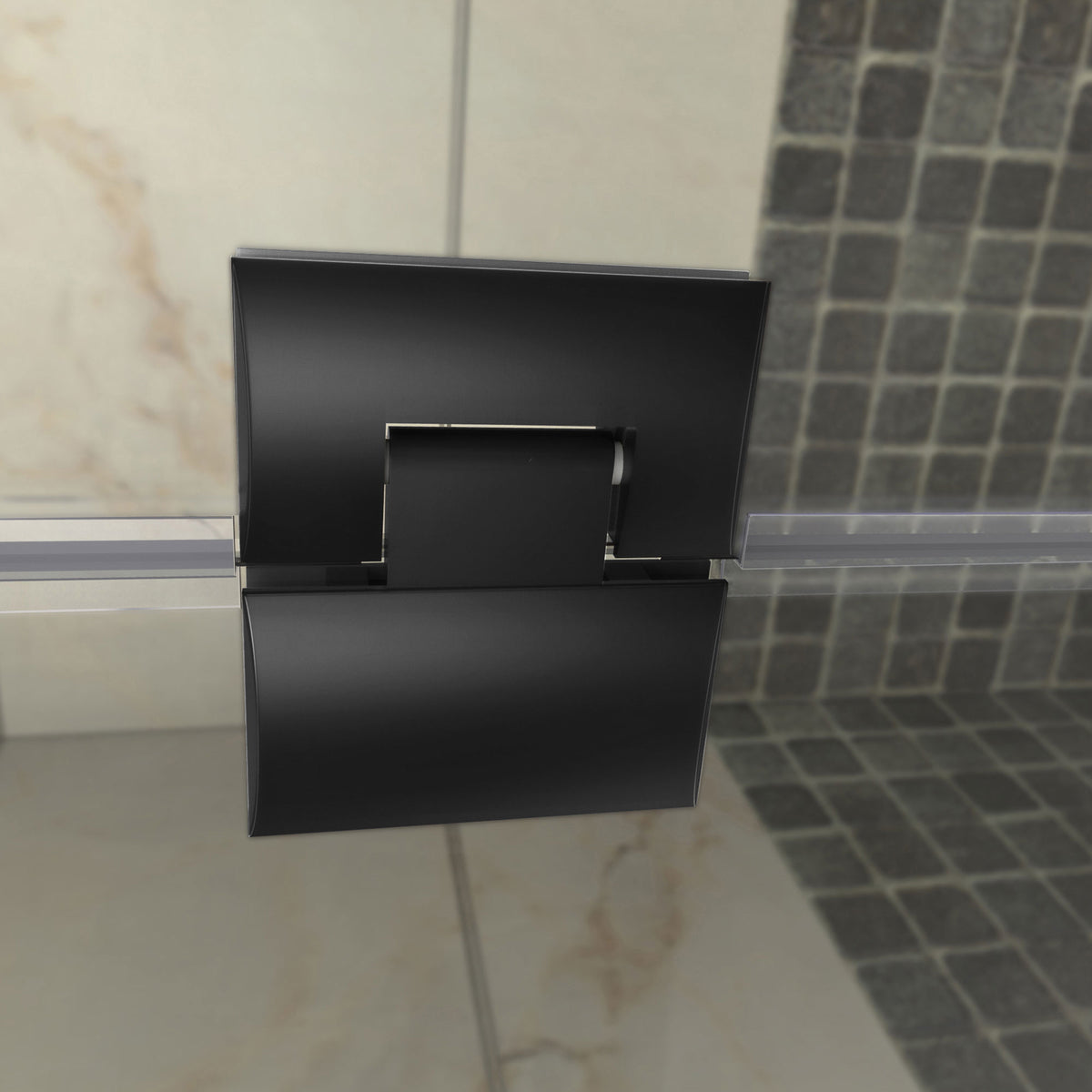

• Frameless Hinged Door: Swings on solid brass glass-to-glass self-closing hinges for a smooth, steady motion.
• 34 Inch Tall Half Panels: Inline and return half panels mount on top of the pony wall, available with a 24 or 30 inch wide inline half panel.
• 3/8 Inch Tempered Glass: Thick, certified clear tempered glass gives a premium, substantial feel.
• Water and Stain Resistant Coating: A factory applied glass coating helps reduce water spots and buildup so cleaning is easier.
• Reversible Installation: Set up for a right or left door opening to fit your layout.

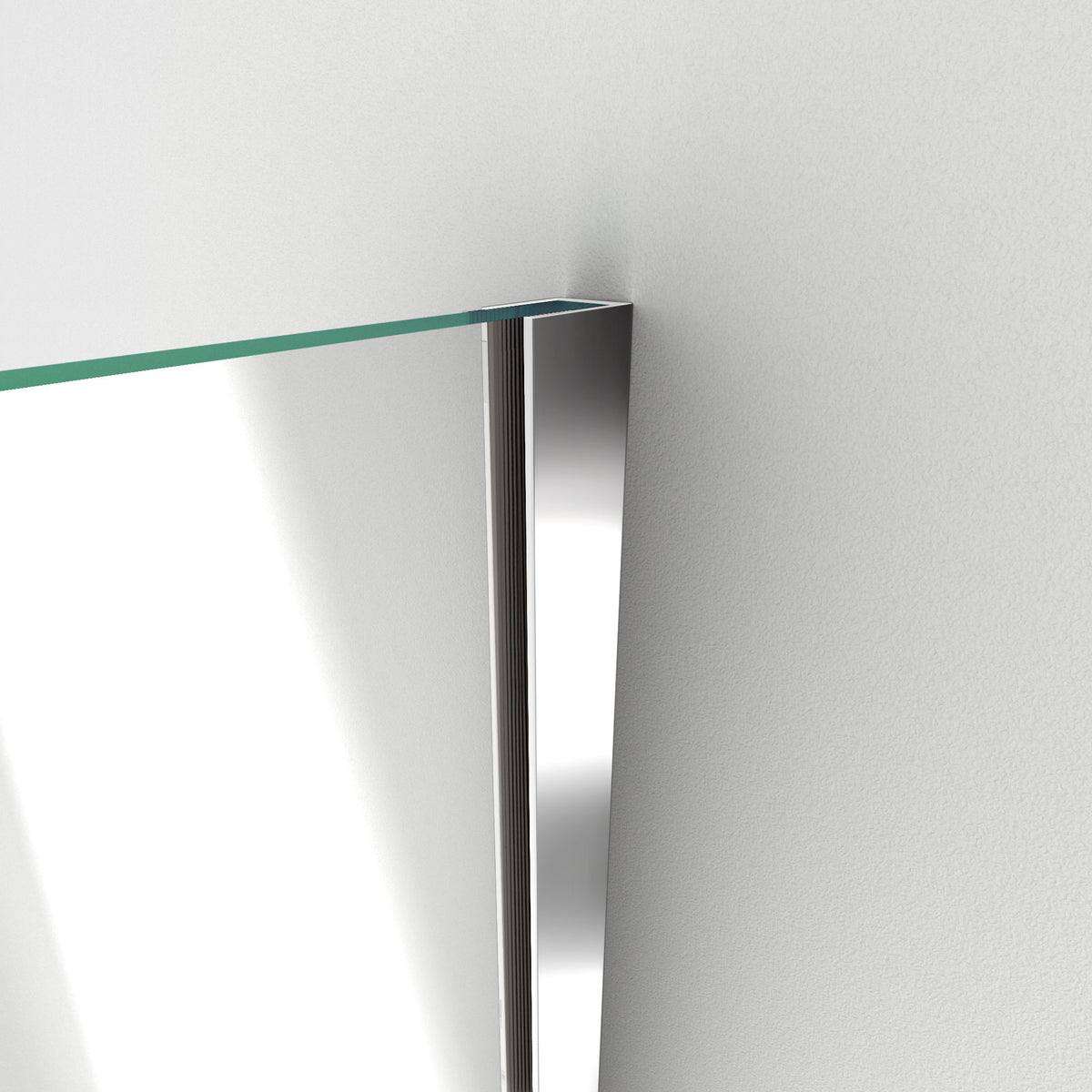

• Wall Adjustment: Up to 1/2 inch of width or out-of-plumb adjustment on the return side and 1/4 inch on the hinged panel side, using 1 inch anodized aluminum U-channel.
• Four Hardware Finishes: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze and Satin Black to match your faucet and fixtures.

Specifications

• Collection: Unidoor-X
• Product Type: Shower enclosure
• Door Type: Hinged
• Frame Type: Frameless
• Glass Thickness: 3/8 inch (10 mm)
• Glass Type: Clear tempered
• Hardware Finishes: Polished Chrome, Brushed Nickel, Oil Rubbed Bronze, Satin Black
• Height: 72 in
• Return Panel Depth: 30 3/8 in or 36 3/8 in
• Minimum Product Width: 57 in
• Maximum Product Width: 60 in
• Threshold Requirement: 5/8 in
• Available Sizes:
  • 57 in W x 72 in H x 30 3/8 in D with 24 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 24 in W x 34 in H inline half panel and 30 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 26 in
  • 57 in W x 72 in H x 36 3/8 in D with 24 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 24 in W x 34 in H inline half panel and 36 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 26 in
  • 58 in W x 72 in H x 30 3/8 in D with 24 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 24 in W x 34 in H inline half panel and 30 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 27 in
  • 58 in W x 72 in H x 36 3/8 in D with 24 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 24 in W x 34 in H inline half panel and 36 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 27 in
  • 59 in W x 72 in H x 30 3/8 in D with 24 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 24 in W x 34 in H inline half panel and 30 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 28 in
  • 59 in W x 72 in H x 30 3/8 in D with 30 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 30 in W x 34 in H inline half panel and 30 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 22 in
  • 59 in W x 72 in H x 36 3/8 in D with 24 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 24 in W x 34 in H inline half panel and 36 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 28 in
  • 59 in W x 72 in H x 36 3/8 in D with 30 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 30 in W x 34 in H inline half panel and 36 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 22 in
  • 60 in W x 72 in H x 30 3/8 in D with 24 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 24 in W x 34 in H inline half panel and 30 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 29 in
  • 60 in W x 72 in H x 30 3/8 in D with 30 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 30 in W x 34 in H inline half panel and 30 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 23 in
  • 60 in W x 72 in H x 36 3/8 in D with 24 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 24 in W x 34 in H inline half panel and 36 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 29 in
  • 60 in W x 72 in H x 36 3/8 in D with 30 in W inline half panel
    • Configuration: 6 in hinged panel with shower door, 30 in W x 34 in H inline half panel and 36 3/8 in W x 34 in H return half panel
    • Walk-in Opening: 23 in
• Installation: Professional installation recommended. Drilling into the floor threshold and the top of the pony wall is required
• Shower Base: Not included
• Warranty: Limited lifetime product warranty, 3 year hardware finish warranty
